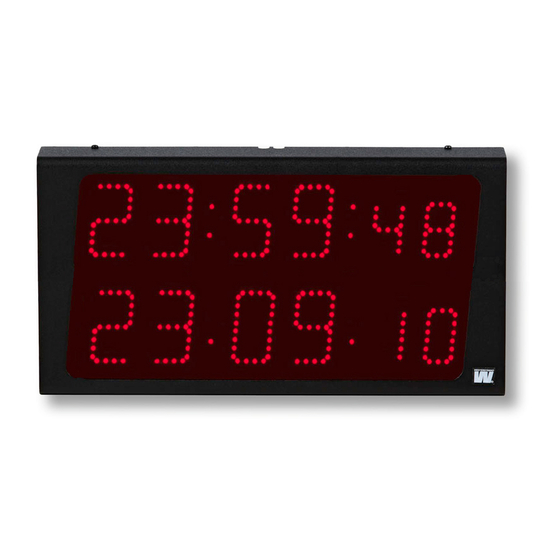

WESTERSTRAND LUMEX 5 Instructions Manual

With chronometer function
Hide thumbs Also See for LUMEX 5:

Advertisement

Quick Links

Download this manual

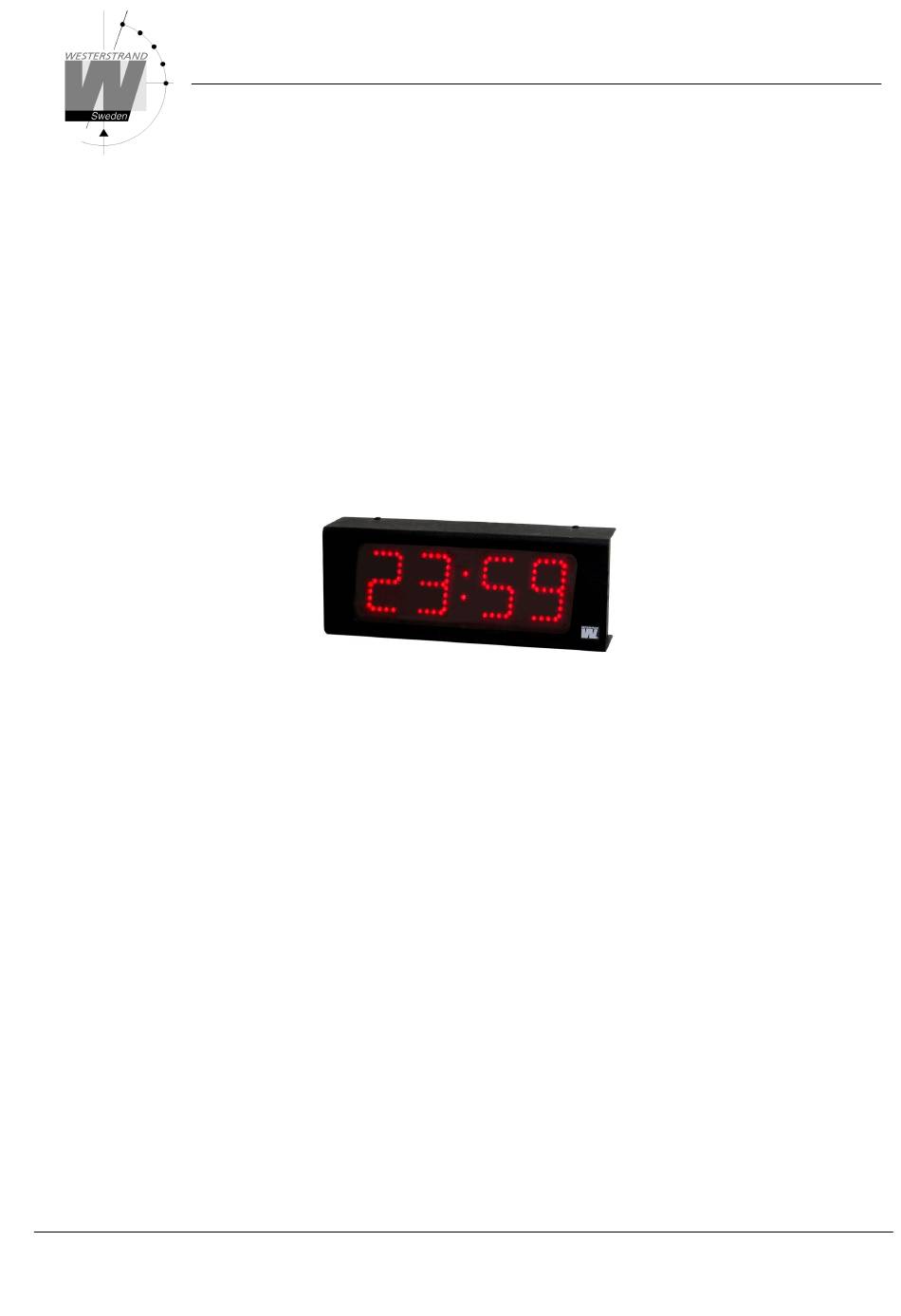

WESTERSTRAND URFABRIK AB
Box 133
545 23 TÖREBODA
Instructions
Digital clock
LUMEX 5, LUMEX 7, LUMEX 12
With chronometer function
Tel. 0506 48 000
Fax. 0506 48 051
Internet::
www.westerstrand.se
E-mail:
info@westerstrand.se
Dokument: 1824en06doc
Förf.: TAn
Datum: 2014-01-07
Sida: 1 av 17

Advertisement

loading
Need help?

Need help?

Do you have a question about the LUMEX 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WESTERSTRAND LUMEX 5

Summary of Contents for WESTERSTRAND LUMEX 5

  • Page 1 Dokument: 1824en06doc Förf.: TAn Datum: 2014-01-07 Sida: 1 av 17 Instructions Digital clock LUMEX 5, LUMEX 7, LUMEX 12 With chronometer function WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...

  • Page 2: Installation

    · Connect the power 230VAC, 50Hz. according the schema. When the clock is permanently installed a readily accessible disconnect device shall be incorporated in the fixed wires. · Setting the digital clock. See Programming. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se...
  • Page 3 Datum: 2014-01-07 Sida: 3 av 17 Connection The connections are made at the back plate (see below.) LUMEX 5 LUMEX 5/S, LUMEX 7, LUMEX 7/S, LUMEX 12, LUMEX 12/S WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA...
  • Page 4 4- Yellow------Up 5- Brown------Mode 6- Red---------S/S 7- Grey--------Preset 8- Pink--------Common Connection from flush mounted remote control to connection terminal. PRESET MODE WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail:...
  • Page 5 Connection Synchronisation wire TC/MIN-imp 3,4 3 – V+, 5 – GND DCF 2-line 3 – V+,4- DCF, 5 – GND DCF 3-line Sync. input WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
  • Page 6 Dokument: 1824en06doc Förf.: TAn Datum: 2014-01-07 Sida: 6 av 17 Strapping/DIP switch setting for TC / MIN-impulse (default) Strapping/DIP switch setting for DCF-radio (2 –wire) computer board WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax.
  • Page 7 ½ Min impulse synchronisation. TC/Min impulse synchronisation or DCF synchronisation. (default) Dip 7: OFF always OFF Dip 8: OFF always OFF WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail:...
  • Page 8 Set the clock for synchronisation, function DCF See programming page 10. When a correct time message appears, the clock sets the time. The clock will blink colon when it is in sync and accepts transmitted code. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se...
  • Page 9 Datum: 2014-01-07 Sida: 9 av 17 Connection temperature sensor (this is an option). Temperature sensor connection 1 red. 2 black 5 Screen WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
  • Page 10 Push [P] until desired year (00-99) Accept with [F]. nn 1 Display shows month. Push [P] until desired month (1-12). Accept with [F]. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
  • Page 11 Push [P] until desired minute (00-59). Push [F] for synchronisation and the clock starts Display shows: ti ne Push [R]. The Programming is finished. 12 : 07 Display shows: WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax.
  • Page 12 No synchronisation, stand alone. TC or DCF. Impulse synchronisation. InSy Impulse slave. InSL Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
  • Page 13 Push [P]. C1 0 Display shows Push [P] for desired correction value (± 9 ˚C). Accept with [F]. Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA...
  • Page 14 Time can be counted up or down. At the end of the count period a buzzer signal is heard. The buzzer signal time is adjustable from 0-9 seconds. The buzzer can also be shut off manually. There is an output for an external relay. The relay is a factory mounted option. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se...
  • Page 15 For the change between chronometer and clock. [S/S] Start/stop. [PRESET] Reset of time. Reset can only be done when the clock is stopped. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
  • Page 16 "nS " Display shows minutes (0-99) and seconds. "nnS " Display shows minutes (0-9999) and seconds. "nnC " Display shows minutes (0-9999) and 1/100 minutes. Press [NO] until selected text is shown. Accept with [YES]. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se...

  • Page 17: Technical Specification

    Size of digits :SS 70/50/37 mm, red, green, yellow SMD LED:s Synchronisation Polarised 24V impulse 1/1, TC, DCF ± 0.1 sec/24 hour Accuracy Dimension for LUMEX 5 250x95x50 mm / 335x96x50 mm HH:MM/HH:MM:SS Running reserve 48 hour Changing Summer/ Last Sunday in march, last Sunday in October.

This manual is also suitable for:

Lumex 7Lumex 12
