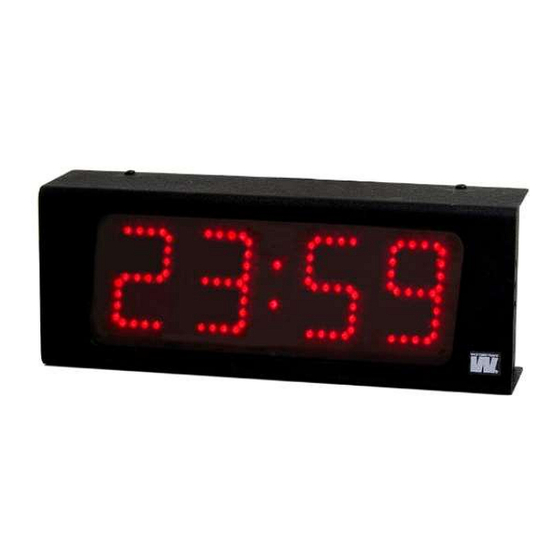

WESTERSTRAND LUMEX5 User Manual

Digital ntp poe clock
Hide thumbs Also See for LUMEX5:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
DOK11068en03
Westerstrand Time System
2021-05-12
TAn
User Manual
Digital NTP PoE Clock
LUMEX5, LUMEX7, LUMEX12
20 NTP
Westerstrand Urfabrik AB
Box 133, SE-545 23 Töreboda
www.westerstrand.se
Tel.: +46 506 48000
info@westerstrand.se

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUMEX5 and is the answer not in the manual?

Questions and answers

Related Manuals for WESTERSTRAND LUMEX5

Summary of Contents for WESTERSTRAND LUMEX5

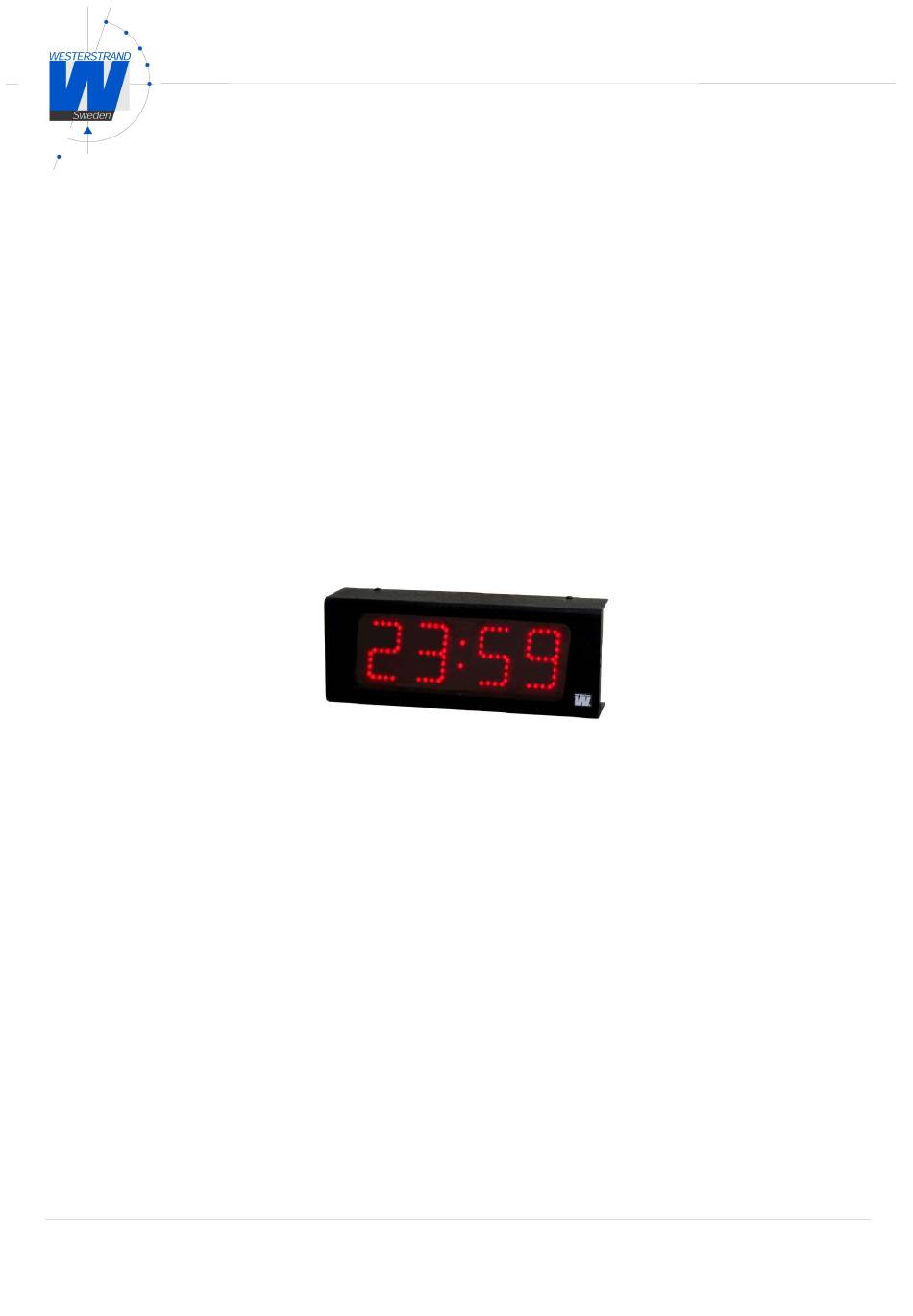

  • Page 1 User Manual DOK11068en03 Westerstrand Time System 2021-05-12 User Manual Digital NTP PoE Clock LUMEX5, LUMEX7, LUMEX12 20 NTP Westerstrand Urfabrik AB Box 133, SE-545 23 Töreboda www.westerstrand.se Tel.: +46 506 48000 info@westerstrand.se...

  • Page 2: Table Of Contents

    DOK11068en03 2021-05-12 2 (27) Index General ..............................3 Functional description ..........................3 Installation ............................... 4 Synchronisation ............................7 Configuration using R F P buttons ......................8 Configuration using a WEB browser ...................... 10 Firmware Download / Wunser ......................23 Technical specification .......................... 26 Abbreviations ............................

  • Page 3: General

    3 (27) General LUMEX5,LUMEX7 and LUMEX12 are Digital Clocks for indoor use, displaying time in hours and minutes. The time can be displayed in either 12- or 24-hour format. The clock can also be configured to show the time, date and temperature alternately. Light intensity of the digits is adjustable by an automatic dimmer control.

  • Page 4: Installation

    DOK11068en03 2021-05-12 4 (27) Installation Wall installation of single-sided clocks  Unscrew 4 screws, 2 above and 2 below. Remove the back plate from the casing and mount it on the wall.  Connect the LAN cable to the RJ45 connector, input PoE splitter. ...
  • Page 5 DOK11068en03 2021-05-12 5 (27) Wall installation double-sided clock  Unscrew 2 screws under the service front (the front when you have R,F,P buttons to the right). Remove the front.  Mount the 2 holders at the digital clock and mount it on the wall. ...
  • Page 6 DOK11068en03 2021-05-12 6 (27) Temperature sensor (Option) If a temperature sensor is used, connect it to the CPU board according to the pictures below. Black Shield...

  • Page 7: Synchronisation

    DOK11068en03 2021-05-12 7 (27) Synchronisation The clock is prepared for time synchronization by Network Time Protocol (NTP) from an NTP server. When a correct time message is received the clock will display correct time automatically. The colon between hours and minutes will flash when the clock is in sync and the time message is accepted.

  • Page 8: Configuration Using R F P Buttons

    DOK11068en03 2021-05-12 8 (27) Configuration using R F P buttons General Configuration of network settings, light intensity and other parameters is done via a WEB-browser. Some of the parameters can also be set using three buttons located at one side of the clock. Please note, if default settings are used no configuration is needed.
  • Page 9 DOK11068en03 2021-05-12 9 (27) 11. Push [P] until desired minute (00-59), accept with [F] and clock starts ti nE 12. Display shows 13. Push [R]. Program finished 14. Display shows the set time Setting light intensity The light intensity for the digits can be adjusted in 8 levels. An automatic dimmer function regulates the light intensity within each level.

  • Page 10: Configuration Using A Web Browser

    DOK11068en03 2021-05-12 10 (27) Configuration using a WEB browser Login It is possible to login as administrator or guest. The administrator has the rights to read and to write/change configuration. A guest can read only. Username admin or guest. Password Enter a password.
  • Page 11 DOK11068en03 2021-05-12 11 (27) Status Name Symbolic name. The name is set in function General UTC/LT Current time Timezone Offset to UTC during normal time (=winter time). The Clocks IP address Netmask Shows the netmask setting Gateway Shows the IP address of the gateway Shows the IP address of the DNS server A MAC address has format 00-07-09-xx-xx-xx...
  • Page 12 DOK11068en03 2021-05-12 12 (27) Alarms Shows if the Clocks has any alarms. The following alarm texts can be displayed. No Alarms = Clock OK. Not synchronised = The Clock is not synchronised. 5-minute limit = The received time message is more than 5 minutes wrong compared to internal time.
  • Page 13 DOK11068en03 2021-05-12 13 (27) Network Enter general network parameters.
  • Page 14 Syslog: Syslog server IP address. Send syslog messages if checked. Identity access: Identify access is used in combination with application software Wunser. Wunser is a PC program that is used for finding and doing light configuration on Westerstrand Ethernet products. Firmware updates are also handled by Wunser.
  • Page 15 Trap type v2 = Trap according to SNMPv2 NTP settings General Description Westerstrand NTP Clients has several features to achieve a reliable and accurate time. The configuration of the different facilities is flexible, and the features can be selected or deselected depending on each customer’s individual needs.
  • Page 16 DOK11068en03 2021-05-12 16 (27) DHCP option 042 Ask for time using the server IP addresses received from the DHCP server (DHCP option 0042). Maximum 2 NTP servers are set automatically by option 0042. Broadcast Accept broadcast/multicast time messages. Broadcast address: 255.255.255.255 Multicast Accept multicast time messages.
  • Page 17 DOK11068en03 2021-05-12 17 (27) NTP server Select NTP servers, e.g. 192.168.1.237 or as an URL ntp.se. Also see NTP mode=DHCP above Up to five different NTP servers can be entered. If the first one fails it will automatically go to the next one and so on.
  • Page 18 DOK11068en03 2021-05-12 18 (27) NTP advanced Advanced NTP settings Client mode FIRST. Always use the first server in the list if available. If not available take next one. This suits installations where it is more important to know exactly from where the clients get time than to have the most accurate time.
  • Page 19 DOK11068en03 2021-05-12 19 (27) Clock Used to configure general clock parameters. Leading zero Time: not checked; " 8:29",checked; "08:29". Date: not checked; " 7.9 ", checked "07.9 " (Sep 7). 12h clock Show e.g. " 2:49" (12h clock) instead of "14.29" (24h clock). Show Time Loop-time in seconds for time.
  • Page 20 DOK11068en03 2021-05-12 20 (27) Show Date Loop-time in seconds for date. Show Temp Loop-time in seconds for temperature. Temp Offset Adjust the temperature reading (-9 to +9 °C). Alarm Set temperature bounds. The temperature alarm “Temp is out of bounds” will be active when the temperature reading is below the min value, or above the max value.
  • Page 21 DOK11068en03 2021-05-12 21 (27) General Used to configure general parameters. Name Symbolic name, maximum 64 characters. This name is shown in the status menu and is also included in SNMP and Syslog messages. Example: Digital Clock, reception. Contact Contact person. This information is included in SNMP messages.
  • Page 22 DOK11068en03 2021-05-12 22 (27) Location The place where the clocks is located. Example: “Building 3 Room 214”. This information is included in SNMP messages. Password Login password. Admin = Adminstrator password. The administrator has the rights to read and to write/change configuration.

  • Page 23: Firmware Download / Wunser

    The Clock has support for firmware upgrade via the network. The utility program Wunser is used for firmware upgrade. Wunser can be downloaded using the following link: http://www.westerstrand.com/archives/download.htm If checkbox Firmware Download is clicked, then the application jumps to a boot-loader. If no firmware upgrade take place within 60 seconds, then the old application is restarted again with the current firmware.
  • Page 24 DOK11068en03 2021-05-12 24 (27) For details of the download procedure, see Wunser manual, 4296. Also other programs, e.g. windows built in client tftp, can be used: c:\ARM\Lisa>tftp 192.168.2.61 put LISA-Q132.MOT Successful transfer: 1234092 byte 15 sec., 82272 byte/s Find IP-address At delivery, the clock is set to DHCP, with fallback address 192.168.3.10.
  • Page 25 DOK11068en03 2021-05-12 25 (27) Reset Button At a normal start (Reset Button is not pressed) then the green LED is flashing about 2 seconds. Then the green LED is turned off. When the clock is synchronized the green LED is turned on. Action when the Reset Button is pressed: Power up The application stays in boot-loader mode for ever and waits for...

  • Page 26: Technical Specification

    DOK11068en03 2021-05-12 26 (27) Technical specification General Art. no.: LUMEX 5, LUMEX 7, LUMEX 12 - series Mounting/Installation: Single-, double sided. Wall or ceiling mounted. Digits: Single line red LED. Indicating time in HH:MM or HH:MM:SS Digit height: 50 mm, 70 mm or 120 mm Synchronisation: Accuracy 0,1 sec/24 h at 22...

  • Page 27: Abbreviations

    DOK11068en03 2021-05-12 27 (27) Abbreviations Daylight Saving Time DHCP Dynamic Host Configuration Protocol Domain Name System. The Internet's system for converting alphabetic names into numeric IP addresses. Light Emitting Diode Local time Physical address (Media Access Control) Network Time Protocol PING Packet Internet Grouper SNMP...
