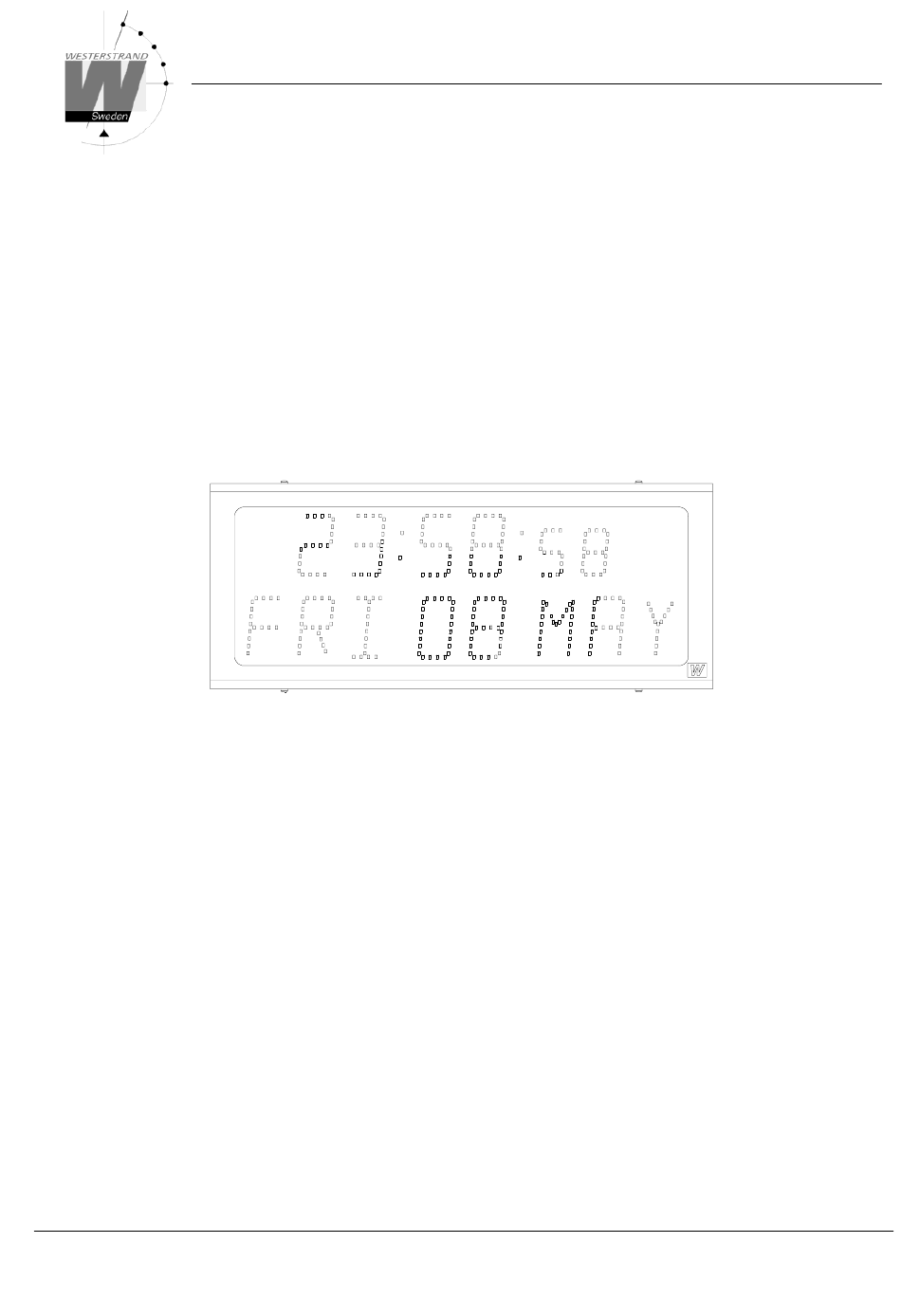

WESTERSTRAND URFABRIK AB
P.O. Box 133
SE-545 23 TÖREBODA
WESTERSTRAND
Instructions

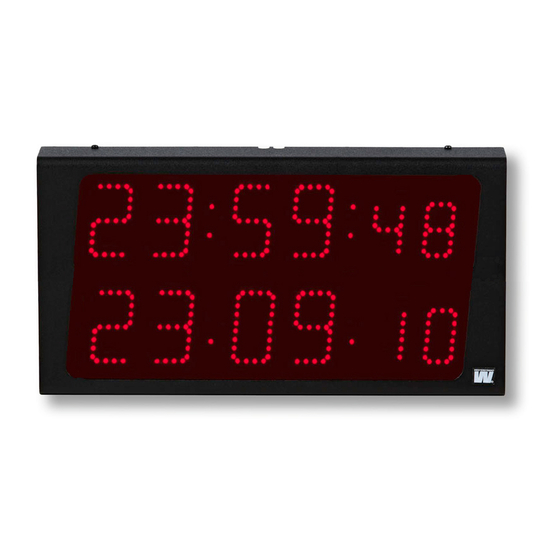

Digital clock, Lumex 5
DATEX
Tel. +46 506 48000
Fax. +46 506 48051
Internet::
http://www.westerstrand.se
E-mail:
info@westerstrand.se
Document: 1864en03.doc
Author: TAn
Date: 2012-01-18
Page: 1 of 15

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lumex 5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WESTERSTRAND Lumex 5

Summary of Contents for WESTERSTRAND Lumex 5

  • Page 1 Document: 1864en03.doc WESTERSTRAND Author: TAn Date: 2012-01-18 Page: 1 of 15 Instructions Digital clock, Lumex 5 DATEX WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...

  • Page 2: Installation Wall Mounted

    • Connect the power 230VAC, 50Hz. according the schema page 4. When the clock is permanently installed a readily accessible disconnect device shall be incorporated in the fixed wires. • Assemble the front. • Set the digital clock. See Programming. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 3 • Assemble the front and the cover for the holder. • Set the digital clock. See Programming. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 4 Document: 1864en03.doc WESTERSTRAND Author: TAn Date: 2012-01-18 Page: 4 of 15 Connection The connections are made at the back plate (see below.) WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 5 TC/MIN-imp 3,4 DCF 2-line 3 – V+, 5 – GND DCF 3-line 3 – V+,4- DCF, 5 – GND Sync. input WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 6 Author: TAn Date: 2012-01-18 Page: 6 of 15 Strapping/DIP switch setting for TC / MIN-impulse (default) Strapping/DIP switch setting for DCF-radio (2 –wire) computer board WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax.
  • Page 7 Document: 1864en03.doc WESTERSTRAND Author: TAn Date: 2012-01-18 Page: 7 of 15 Strapping/DIP switch setting for DCF-radio (3 –wire) computer board WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail:...
  • Page 8 Set the clock for synchronisation, function DCF See programming page 9. When a correct time message appears, the clock sets the time. The clock will blink colon when it is in sync and accepts transmitted code. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...
  • Page 9 Date: 2012-01-18 Page: 9 of 15 Connection temperature sensor (this is an option). Temperature sensor connection 1 red. 2 black 5 Screen WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 10 1 Display shows month. Push [P] until desired month (1-12). Accept with [F]. Display shows day. d d 1 WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail:...
  • Page 11 Push [P] until desired minute (00-59). Push [F] for synchronisation and the clock starts Display shows: ti ne Push [R]. The Programming is finished. 12 : 07 Display shows: WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax.
  • Page 12 TC or DCF. Impulse synchronisation. InSy Impulse slave. InSL Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA Fax. +46 506 48051 E-mail: info@westerstrand.se...
  • Page 13 C1 0 Display shows Push [P] for desired correction value (± 9 ˚C). Accept with [F]. Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se SE-545 23 TÖREBODA...
  • Page 14 FI = Finland, S = Sweden, n = Norway, dA = Denmark, En = England) Push [P] for desired nation. Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB P.O. Box 133 Tel. +46 506 48000 Internet:: http://www.westerstrand.se...

  • Page 15: Technical Specification

    Size of digits :SS 37 mm, red, green, yellow SMD LED:s Synchronisation Polarised 24V impulse 1/1, TC, DCF ± 0.1 sec/24 hour Accuracy Dimension for LUMEX 5 425x175x50 mm Datex Running reserve 48 hour Changing Summer/ Last Sunday in march, last Sunday in October.
