WESTERSTRAND URFABRIK AB
Box 133
545 23 TÖREBODA
Manual

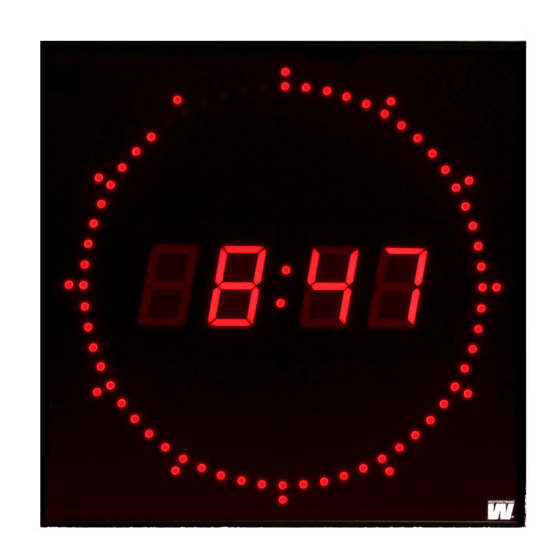

CIRCLE LINE
With NTP
Tel. 0506 48 000
Fax. 0506 48 051
Internet::
www.westerstrand.se
E-mail:
info@westerstrand.se
Dokument: 1872en02.doc
Förf.: TAn
Datum: 2010-11-16
Sida: 1 av 13

Advertisement

loading
Need help?

Need help?

Do you have a question about the CIRCLE LINE and is the answer not in the manual?

Questions and answers

Summary of Contents for WESTERSTRAND CIRCLE LINE

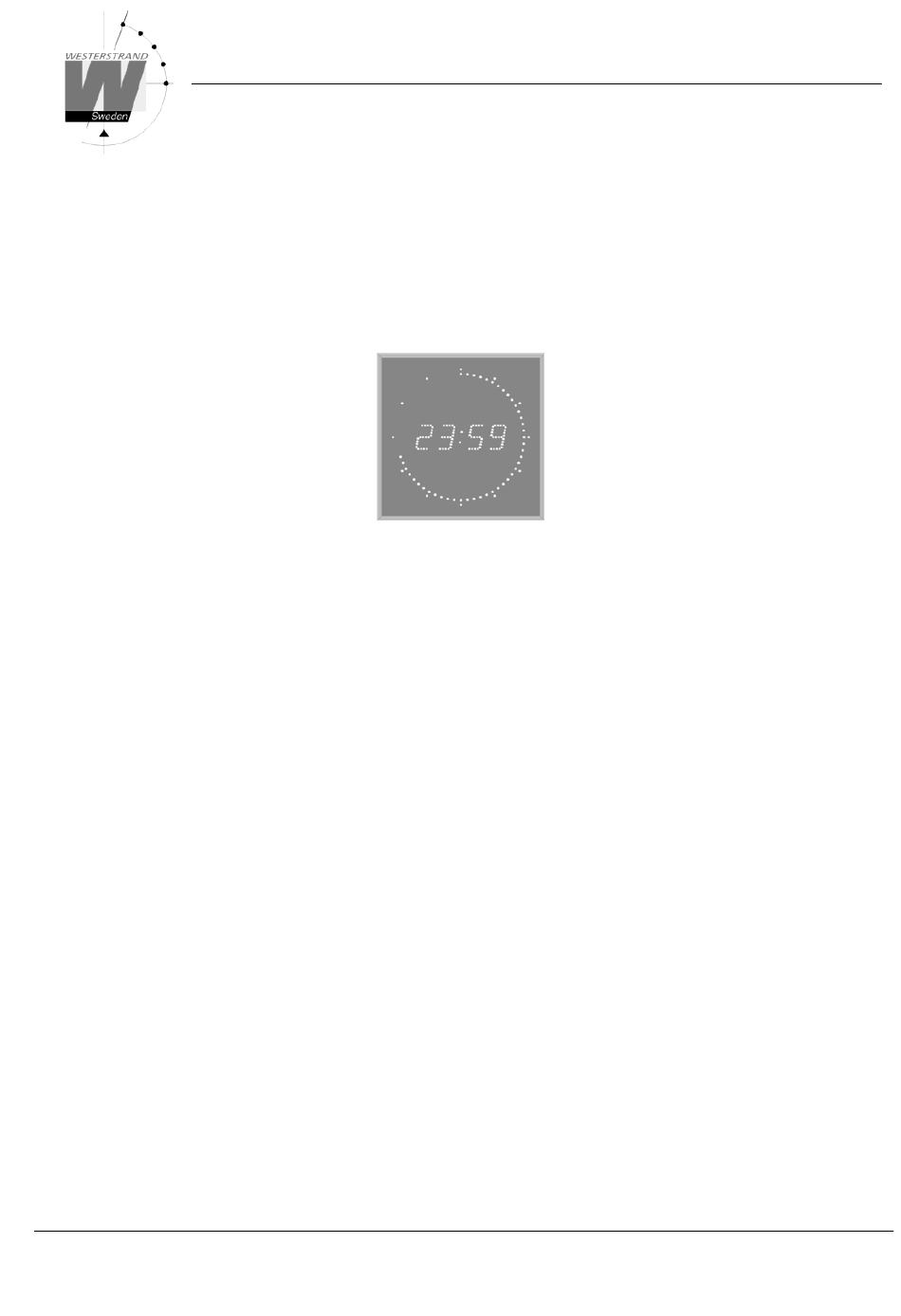

  • Page 1 Dokument: 1872en02.doc Förf.: TAn Datum: 2010-11-16 Sida: 1 av 13 Manual CIRCLE LINE With NTP WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
  • Page 2: Lan Connection

    To distribute correct time to different users in a Local Area Network (LAN) the Network Time Protocol (NTP) is used. NTP is a part of the protocol family TCP/IP. Westerstrand digital clocks type Ethernet LAN are operated and controlled by Time distributed in the Network.
  • Page 3: Installation

    Datum: 2010-11-16 Sida: 3 av 13 Installation Remove the back plate from the casing and mount it on wall or bracket. See measurements for attachment below. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax.
  • Page 4 Installation fuse max10A. Power wire 1,5mm². Connect network LAN to the RJ 45 connector located on C.P.U board at the mounting plate. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se...
  • Page 5: Configuration Using A Web Browser

    If you forget the password, then a TELNET session must be started. The last line shows a number of characters within square brackets []. Contact Westerstrand and enter this value. After login a list of functions is displayed: WESTERSTRAND URFABRIK AB Box 133 Tel.
  • Page 6 Number of time settings= 1089 (The clock has been synchronised 1089 times) Uptime= 65305 (The clock has been running 65305 seconds since the last power failure or reset) Firware= Firware version WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA...
  • Page 7 If On is set by mistake, then the clock must be restarted Save Save parameters. If new password was entered then the clock will restart. Then the web reader (e.g. Internet Explorer) also must be restarted. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se...
  • Page 8 IP address of DNS server SNMP If SNMP is ON the clock will send SNMP traps to the selected SNMP server. The clock also will answer SNMP poll requests. Please contact Westerstrand for more information about SNMP and MIB-files. WESTERSTRAND URFABRIK AB Box 133 Tel.
  • Page 9 United Arab Emirates Interval Interval in seconds between NTP requests. (Used in client/server mode only). Help>> A short help file in PDF format is displayed. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
  • Page 10 SNMP is enabled in function Network. The clock will send traps to the management server and answer on polls. The SNMP functions have been tested with a freeware program from IReasoning (www.ireasoning.com) and with Castle Rocks Management Console SNMPc. Contact Westerstrand for further information.
  • Page 11 Here a search for all modules with firmware RAWEL was made. Total 16 units were found, but only 5 correspond to mask RAWEL. Parameters Set parameters in selected clocks. Blank fields will be ignored by the controller. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se...
  • Page 12 Set interval in seconds between time requests. Reply: Send an answer from modules affected by the parameters. This assumes that checkbox [Restart] is unmarked. See section Find a Westerstrand Ethernet module above for the reply format. Restart: Force restart the controller. Transmit: Send selected parameters.
  • Page 13: Technical Specification

    60 mm Diode light intensity 300 mcd Protection class IP43 Standards compliance EN50081-01 och EN50082-02 Weight 3,4 kg Dimensions 344x344x70 mm WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
