WESTERSTRAND URFABRIK AB
Box 133
545 23 TÖREBODA

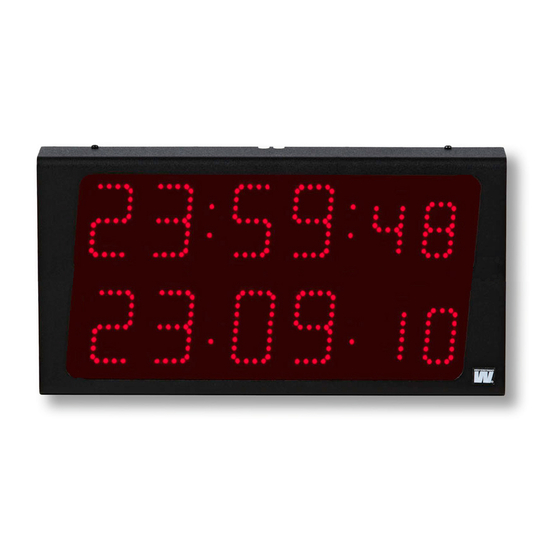

Instructions
Digital clock
2 lines
LUMEX 5
Tel. 0506 48 000
Fax. 0506 48 051
Internet::
www.westerstrand.se
E-mail:
info@westerstrand.se
Dokument: 1830en03.doc
Förf.: TAn
Datum: 2012-02-08
Sida: 1 av 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUMEX 5 and is the answer not in the manual?

Questions and answers

Related Manuals for WESTERSTRAND LUMEX 5

Summary of Contents for WESTERSTRAND LUMEX 5

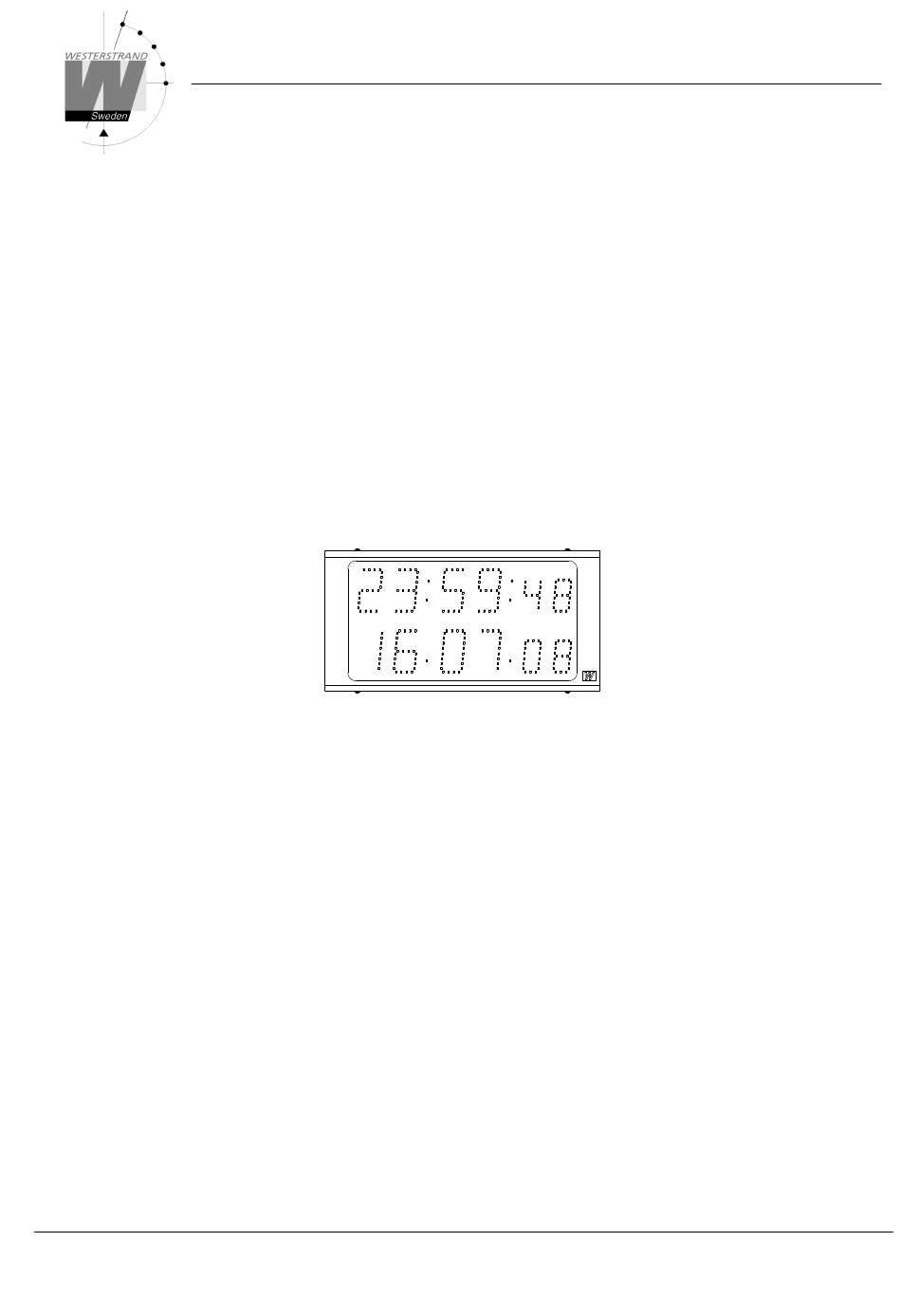

  • Page 1 Dokument: 1830en03.doc Förf.: TAn Datum: 2012-02-08 Sida: 1 av 15 Instructions Digital clock 2 lines LUMEX 5 WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...

  • Page 2: Installation Wall Mounted

    · Connect the power 230VAC, 50Hz. according the schema page 4. When the clock is permanently installed a readily accessible disconnect device shall be incorporated in the fixed wires. · Assemble the front. · Set the digital clock. See Programming. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se...
  • Page 3 Set the clock for synchronisation, function DCF See programming page 8. When a correct time message appears, the clock sets the time. The clock will blink colon when it is in sync and accepts transmitted code. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se...

  • Page 4: Sync. Input

    Connection Synchronisation wire TC/MIN-imp 3,4 3 – V+, 5 – GND DCF 2-line 3 – V+,4- DCF, 5 – GND DCF 3-line Sync. input WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...

  • Page 5: Temp.sensor

    Connection temperature sensor (this is an option). Temperature sensor art.no 114999-16 is an option and it is delivered with cable (6 m). TEMP.SENSOR 1. Brown 2. Black 3. Screen WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax.
  • Page 6 Dokument: 1830en03.doc Förf.: TAn Datum: 2012-02-08 Sida: 6 av 15 Strapping/DIP switch setting for TC / MIN-impulse (default) Strapping/DIP switch setting for DCF-radio (2 –wire) computer board WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax.
  • Page 7 ½ Min impulse synchronisation. TC/Min impulse synchronisation or DCF synchronisation. (default) Dip 7: OFF always OFF Dip 8: OFF always OFF WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail:...
  • Page 8 Push [P] display shows: year. yy 95 Push [P] until desired year (00-99) Accept with [F]. nn 1 Display shows: month. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail:...
  • Page 9 Push [P] until desired minute (00-59). Push [F] for synchronisation and the clock starts Display shows: ti ne Push [R]. The Programming is finished. 12 : 07 Display shows: WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax.
  • Page 10 No synchronisation, stand alone. TC or DCF. Impulse synchronisation. InSy Impulse slave. InSL Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
  • Page 11 Push [P] for desired alternating time (0-25). Accept with [F]. Display shows: Alternating time for display temp/date is 0 L5 0 seconds. Push [P] for desired alternating time (0-25). Accept with [F]. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax.

  • Page 12: Loop Modes

    Push [R] for entering base mode or push [F] for next function. LOOP MODES L1 (default): 23:59: 18.02. 23:59: ˚C 18.02. ˚C 18.02. 23:59: ˚C 18.02. ˚C 23:48: WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
  • Page 13 Push [F] until display shows: Push [P]. Display shows: Push [P] for DLS or not. Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax.
  • Page 14 Push [P]. Display shows: 12 hour format. 24 hour format. Push [P] for desired format. Push [R] for entering base mode or push [F] for next function. WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax.

  • Page 15: Technical Specification

    –30 ˚ - +60˚ Measure range temperature sensor ± 1 ˚ C Accuracy temperature sensor Temperature measurement Once per minute WESTERSTRAND URFABRIK AB Box 133 Tel. 0506 48 000 Internet:: www.westerstrand.se 545 23 TÖREBODA Fax. 0506 48 051 E-mail: info@westerstrand.se...
