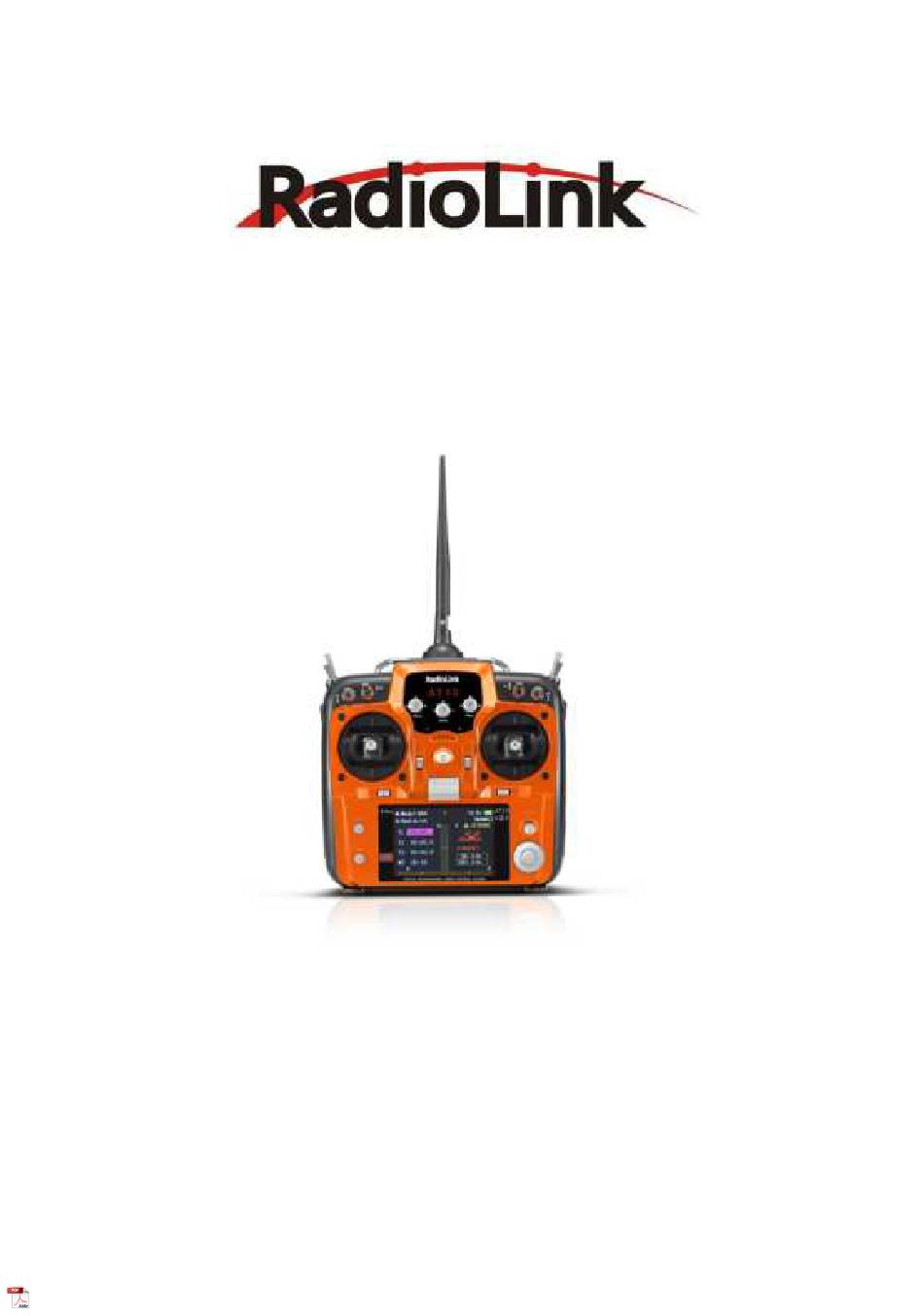

Radiolink Electronic Ltd
www.radiolink.com
AT10II
(DSSS&FHSS)
Instruction Manual
CE FCC RoHS
* Please be kindly noted that this manual will be updated regularly and please visit RadioLink
official website to download the latest version.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT10II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RadioLink AT10II

Summary of Contents for RadioLink AT10II

  • Page 1 Radiolink Electronic Ltd www.radiolink.com AT10II (DSSS&FHSS) Instruction Manual CE FCC RoHS * Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to download the latest version.
  • Page 2 Radiolink Electronic Ltd www.radiolink.com Thank you for purchasing RadioLink 12-channel remote controller AT10II. To fully enjoy the benefits of this product and ensure safety, please read the manual carefully and set up the device as instructed steps. If any problems found during the operation process, either way listed below can be used as online tech support.
  • Page 3 Radiolink Electronic Ltd www.radiolink.com installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.

  • Page 4: Table Of Contents

    Radiolink Electronic Ltd www.radiolink.com CONTENT Part 1. INTRODUCTION OF AT10II SYSTEM................1 AT10II SYSTEM.........................1 1.1.1 Function of transmitter...................... 1 1.1.2 Transmitter Panel Shows:....................2 1.1.3 Compatible receivers......................4 1.1.4 RSSI testing........................4 RADIO INSTALLATION.....................5 1.2.1 Guidelines to mount the servos, receiver and battery..........5 1.2.2 Receiver and servo connections..................
  • Page 5 CONDITION ......................... 78 Part 6. MULTIROTOR FUNCTIONS..................79 MULTIROTOR BASIC MENU..................81 6.1.1 MODEL TYPE........................81 6.1.2 AUX Channel setting.......................81 ADVANCE MENU FOR MULTIROTOR............... 81 6.2.1 ATTITUDE.........................81 6.2.2 THROTTLE CURVE (see ACRO 3.3.14)..............82 6.2.3 PROG. MIX (see ACRO 3.3.1)..................82 AT10II Using Tutorials......................82...

  • Page 6: Part 1. Introduction Of At10Ii System

    Note that in the text of this manual, beginning at this point, any time we are using a feature's specialized name or abbreviation as seen on the screen of the AT10II, that name, feature, or abbreviation will be exactly as seen on the radio’s screen, including capitalization and shown in a DIFFERENT TYPE STYLE for clarity.

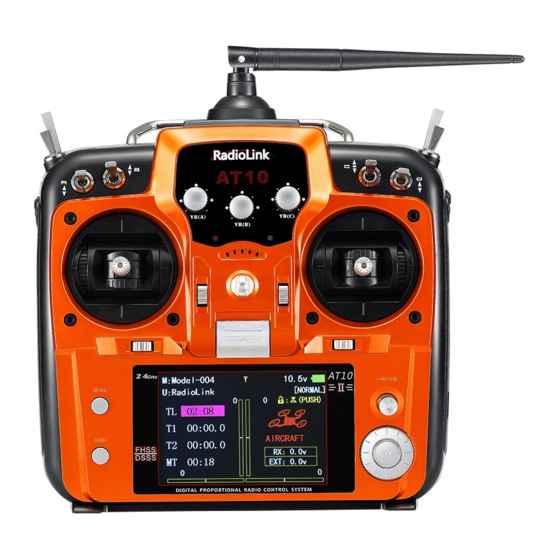

  • Page 7: Transmitter Panel Shows

    Radiolink Electronic Ltd www.radiolink.com 1.1.2 Transmitter Panel Shows...
  • Page 8 Radiolink Electronic Ltd www.radiolink.com SWITCH ASSIGNMENT TABLE • The factory default functions activated by the switches and knobs for a AT10II transmitter are shown below. • Most AT10II functions may be reassigned to non-default positions quickly and easily. Always check that you have the desired switch assignment for each function during setup...

  • Page 9: Compatible Receivers

    —— —— 1.1.3 Compatible receivers AT10II is a 12 channels transmitter, support 2.4G DSSS and FHSS spread spectrum working synchronously, 16 channels pseudo random frequency hopping. AT10II sells with dual antenna receiver R12DS which support SBUS and PWM signal output simultaneous, signal coverage all around, never afraid of hilly terrain.

  • Page 10: Rssi Testing

    Pay Attention: AT10II is default 12 channels, you have to setup AT10II to 10 channels first if you use receivers R6DS, R6DSM, R9DS and R10DS. How to setup to 10 channels transmitter: power on your AT10II--Press Mode button one second to into BASIC MENU--into SYSTEM menu--change CH-SELECT from 12CH to 10CH.

  • Page 11: Radio Installation

    If you accidentally get moisture or fuel inside the receiver, you may experience intermittent operation or a crash. If in doubt, please contact Radiolink after cares or distributors for service.

  • Page 12: Receiver And Servo Connections

    Radiolink Electronic Ltd www.radiolink.com • After the servos are installed, operate each servo over its full travel and check that the pushrods and servo arms don’t bind or contact each other. Also make sure the controls do not require excess force to operate. If there is an objectionable buzzing sound coming from a servo, there is probably too much resistance in the control.
  • Page 13 Radiolink Electronic Ltd www.radiolink.com Combined Combined flap-2 elev-2&aileron1 aileron-1 Aileron-1 &aileron-1 elev-1&aileron-2 Combined Elevator/combined Elevator/combined Elevator/combined elev-1&aileron-2 rudder-2&elev-1¹ rudder-2&elev-1¹ rudder-2&elev-1¹ spare/motor spare／motor spare／motor spare/motor/splr-2¹ Rudder/combined Rudder/combined rudder/combined Rudder rudder-2&elev-2² rudder-2&elev-2² rudder-1&elev-2² spare/splr-2¹ spare/spoiler-2¹ spare/spoiler-2¹ flap-2 Combined Flaps flaps flap-1 flap-1&aileron-2...
  • Page 14 Radiolink Electronic Ltd www.radiolink.com Receiver output and channel Helicopter aileron/cyclic roll Elevator/cyclic pitch Throttle Rudder Spare/gyro Pitch(collective pitch) Spare/governor spare/mixture control Spare spare spare The above listed receiver and channels is referred to the channel 1~11 of the receiver R12DS, connect the receiver with the related servo, you can control the servos by the correspondent switch.

  • Page 15: Installment Of Antenna

    Radiolink Electronic Ltd www.radiolink.com then there are only 8 channels of PWM signal output left. 1.2.3 Installment of antenna 1. Receiver Antenna Installment Keep antennas as straight as possible and 90° as below, or the effective control range will reduce.

  • Page 16: Radio Basic Setting

    Radiolink Electronic Ltd www.radiolink.com Antennas should be kept away from metal conductor and carbon fiber at least half inch away and no over bending. Keep antennas away from motor, ESC or other possible interference sources. Note Receiver contains some electronic components of high-precision. Be careful to avoid strong vibration and high temperature.

  • Page 17: Binding

    Make sure servos connected with the receiver can be operated by the transmitter. Note AT10II is default 12 channels and can be changed to 10 channels. In order to bind to non 12-channel receivers(R6DS,R6DSM,R9DS), channel quantity needs to change to 10 channels.

  • Page 18: Part 2. Basic Function Of Airplane

    Radiolink Electronic Ltd www.radiolink.com Press and hold MODE BUTTON for one second to open programming menus. Press MODE BUTTON to switch between BASIC and ADVANCE. Press MODE BUTTON to scroll between conditions in certain functions. END BUTTON: Press END BUTTON to return to previous screen. Closes functions back to menus, closes menus to start-up screen.
  • Page 19 Radiolink Electronic Ltd www.radiolink.com Press MODE BUTTON for more than one Press END BUTTON to second to enter BASIC return to Start up screen MENU BASIC MENU ADVANCE MENU Press MODE BUTTON to switch between BASIC and ADVANCE MENU Turn CURSOR KEY to scroll through choices within an option of a function.
  • Page 20 Radiolink Electronic Ltd www.radiolink.com urn on the transmitter. Open the Basic menu, then for 1second to basic menu. to choose open the PARAMETER model Name the model (Note that you do to Mode， to Mode name，press PUSH to Go to Model Name...
