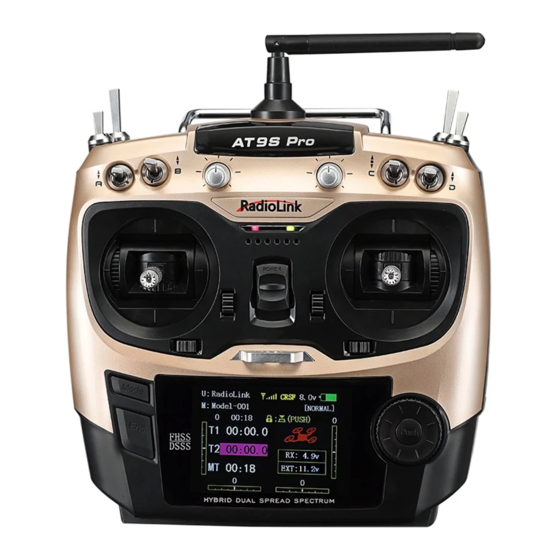

RadioLink AT9S Quick Start Manual

R6DS

(FHSS and DSSS Spread Spectrum)

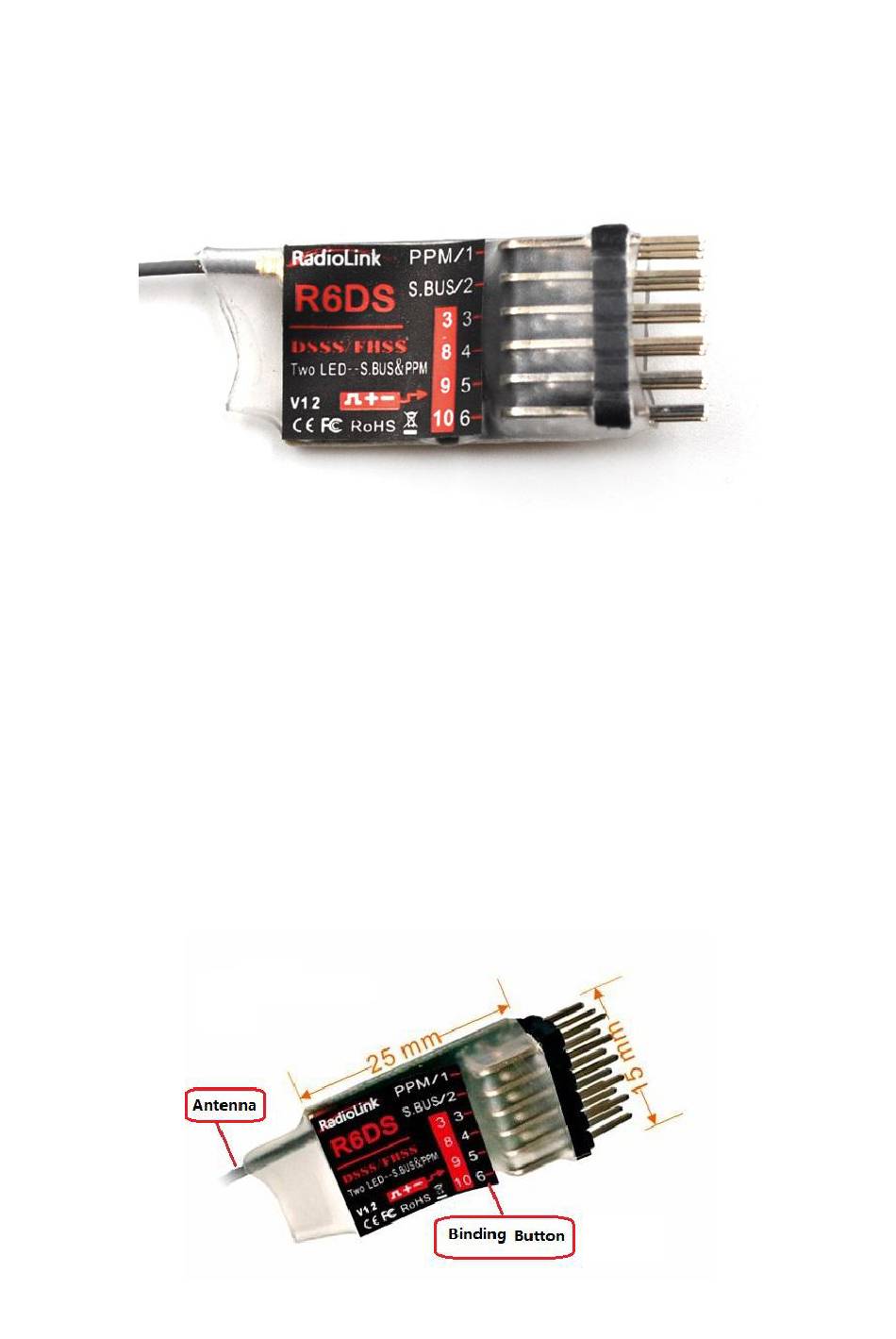

Radiolink R6DS, 2.4G 6/10 channels receiver, DSSS and FHSS spread spectrum working

synchronously, use for Radiolink transmitters AT9, AT9S, AT10 and AT10II.

SBUS, PPM and PWM signal possible working at the same time.

Product feature:

DSSS&FHSS act perfect on anti-interference, especially on 433 and graph transmission.

Output SBUS, PPM and PWM signals simultaneously.

Top speed response, 3ms for all channels parallel.

Top precision 4096, 0.25us every bit insures every servo stable.

Sub miniature size, totally weights 3.5 grams, never burden to your drones, best choice for light

drones.

Specially used for light drones, compatible with all flight controllers such as DJI NAZA, ZERO

TECH, PIX, APM, MINI APM, NAZE32, and CC3D etc.

One single cable connects with the flight controller, easy setting.

Table of Contents

Do you have a question about the AT9S and is the answer not in the manual?

Page 1 R6DS (FHSS and DSSS Spread Spectrum) Radiolink R6DS, 2.4G 6/10 channels receiver, DSSS and FHSS spread spectrum working synchronously, use for Radiolink transmitters AT9, AT9S, AT10 and AT10II. SBUS, PPM and PWM signal possible working at the same time. Product feature: DSSS&FHSS act perfect on anti-interference, especially on 433 and graph transmission.
Page 2 Two operating modes output: 1. PWM signal working mode: Red LED indicates PWM signal output, 6 channels totally. 2. SBUS signal working mode: Blue/purple LED indicates SBUS/PPM signal output, CH1 output PPM signal, and CH2 output SBUS signal, CH3 output CH3 PWM signal (for helicopter) and CH4 to CH6 output CH8 to CH10 independent PWM signal simultaneously, 10 channels signal totally.
Page 3 How to match code with transmitter: 1. Place the transmitter and the receiver close to each other within 1 meter. 2. Turn on the transmitter, then power on the R6DS. 3. Connect R6DS to ESC or flight controller or servo. 4.

At9 At10 At10ii.
