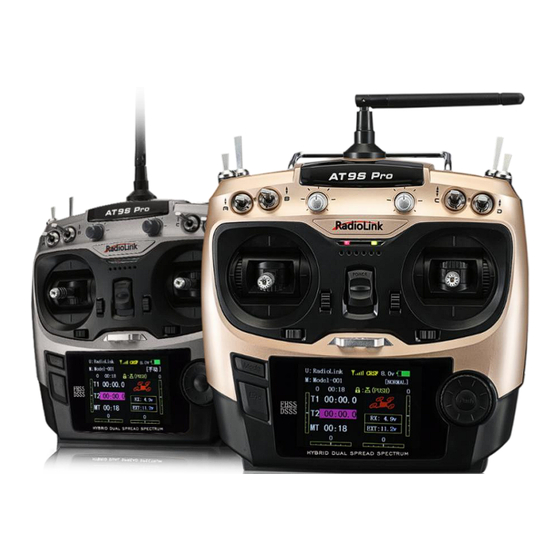

RadioLink AT9SPro Quick Start Manual
10/12 channels transmitter
Hide thumbs
Also See for AT9SPro:
- Manual (83 pages) ,
- Instruction manual (9 pages) ,
- Instruction manual (82 pages)
Related Manuals for RadioLink AT9SPro
Summary of Contents for RadioLink AT9SPro
- Page 1 AT9S Pro （DSSS&FHSS&CRSF） Quick Start Guide （Helicopter/Fixed-wing/Glider/Multirotor/Car/Boat/Robot） 10/12 channels transmitter CE FCC RoHS...
-
Page 2: Packing List
Safety Precautions Safety Precautions Never operate your model during adverse weather conditions. Poor visibility can cause disorientation and loss of control of your model. Never use this product in a crowded and illegal area and strictly comply with the local regulations. -
Page 3: Specifications
Specifications AT9S Pro Transmitter Size 183*100*193mm (7.2”*3.9”*7.6”） Weight 0.88kg Channel Quantity 10/12 (all twelve channels can be programmed) ① DSSS&FHSS: 3400 meters in the air (Maximum range is tested in an Control Range unobstructed area free of interference) ② CRSF: Depends on the RX and TX from BLACKSHEEP ①... - Page 4 Transmitter AT9S Pro Note: The picture above takes the left-hand throttle as an example. ：GND -NC ：No Output -VCC：Voltage Output(7.4-18V) -OUT：Signal Out: PPM/SBUS/CRSF -IN ：RSSI Signal Input...
-
Page 5: Basic Operations
AT9S Pro has 4 two-way switches, 3 three-way switches and a reset switch. Function of all switches can be customized. For details, please refer to the detailed manual of AT9S Pro www.radiolink.com/at9spro_manual. Basic Settings 1. Language Settings: Long press the MODE button to enter the menu, if the language is displayed as Chinese, please rotate the PUSH button to move the cursor to PARAMETER(系统设置), short... -
Page 6: Working Modes
voltage alarm is 8.6V for transmitter; 4.0V for receiver; 11.1V for model battery. When the voltage is lower than the set alarm value, the transmitter will send out an alarm (See pictures below), and the low battery alarm can be set according to the actual voltage of the battery to avoid battery over-discharge. -
Page 7: Channel Settings
2. SBUS&PWM Signal Mode: Blue/purple LED indicates SBUS&PWM signal output at the same time with 10 channels totally. CH9 outputs SBUS signal while the original CH1 outputs CH3 PWM signal and original CH2 to CH6 output CH6 to CH10 PWM signal at the same time. Switch Signal Mode：Short press binding button (ID SET) twice within 1 second, the working mode will be switched. - Page 8 Note：Since RadioLink radio control systems are not open sourced, RadioLink transmitters are ONLY compatible with RadioLink receivers. After connecting TBS Crossfire module to AT9S Pro, the connection to TBS Crossfire receiver is supported Installment of Antenna 1.
- Page 9 (5) Antennas should be kept away from metal conductor and carbon fiber at least half inch away and no over bending. (6) Keep antennas away from motor, ESC, or other possible interference sources. (7) Receiver contains some electronic components of high-precision. Be careful to avoid strong vibration and high temperature.
- Page 10 R9DS receiver integrates telemetry of signal strength and receiver voltage by default. It can also realize the telemetry of model battery voltage or flight controller and GPS information when used with RadioLink PRM-01 or PRM-03 telemetry module, and the telemetry information can be displayed on the screen of AT9S Pro or AT10II transmitter.
- Page 11 1. Scan the QR code on the last page of the Quick Start Guide to view detailed video tutorials for connecting AT9S Pro to all the above devices. 2. TBS Crossfire connect cable and wireless trainer cable are sold separately. Please refer to the official website www.radiolink.com for more information and purchase.
- Page 12 Facebook Messenger If the above information cannot solve your problem, you can also send emails to our technical support: after_service@radioLink.com.cn This content is subject to change. Download the manual of AT9S Pro from https://www.radiolink.com/at9spro_manual Thank you again for choosing RadioLink product.
