Summary of Contents for Kogan Z11 PRO

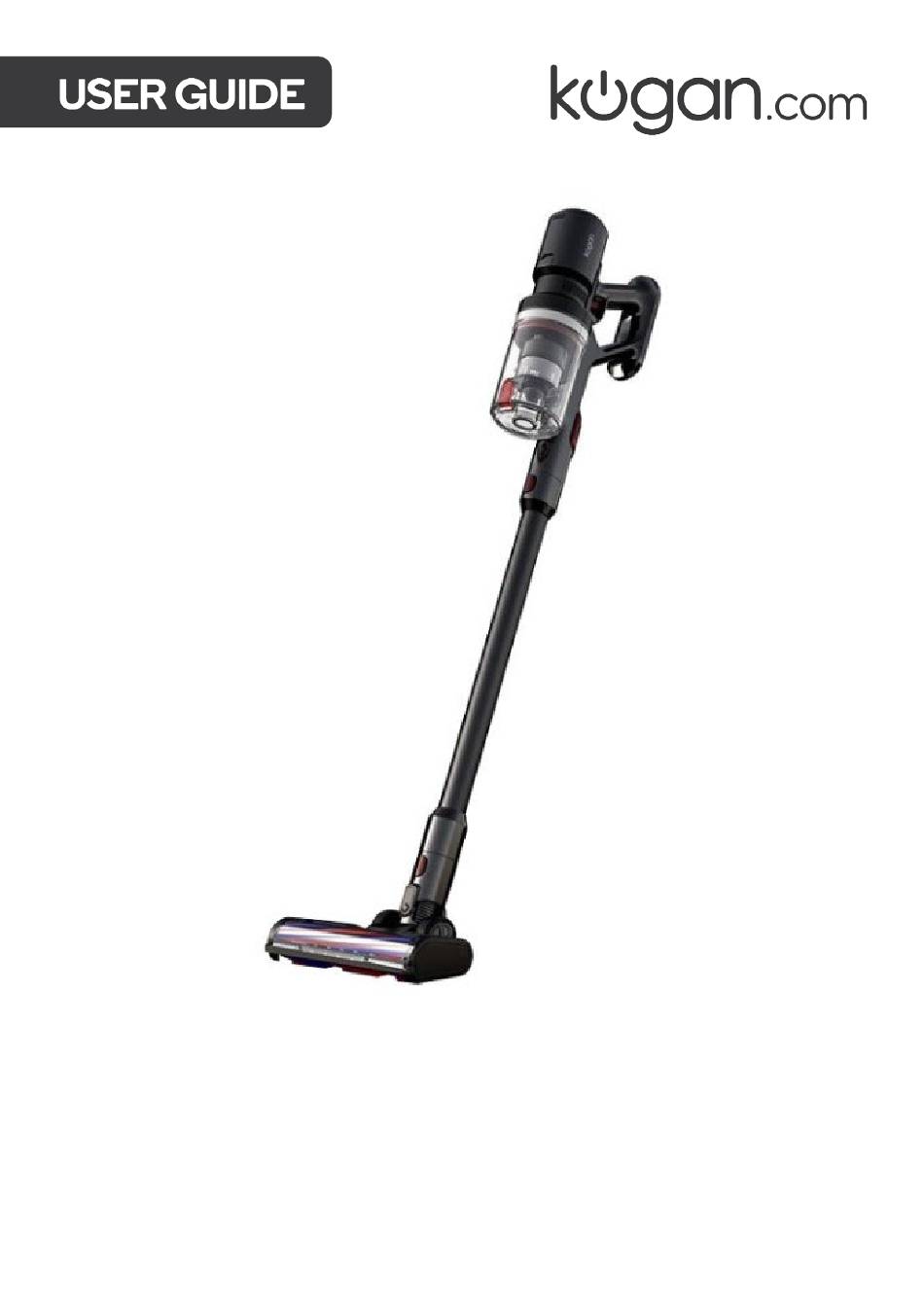

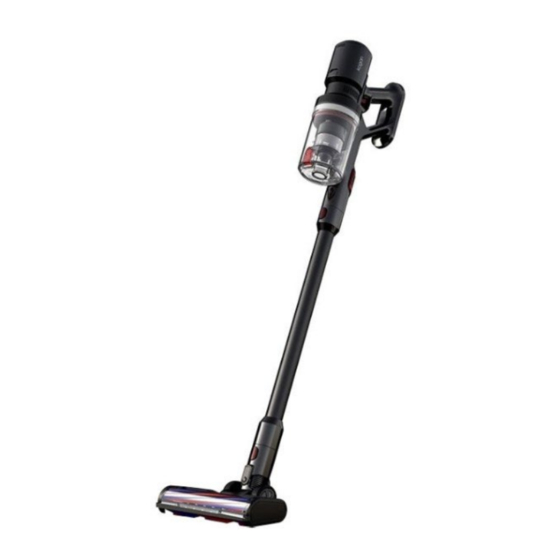

- Page 1 Z11 PRO CORDLESS STICK VACUUM CLEANER KAVACSTV11A, KAVACSTV11W...
-
Page 3: Safety And Warnings
• This product is powered by a 29.6V DC lithium battery. Do not use any other model or capacity of the battery. Only use the original battery supplied by Kogan.com. • If the battery has any malfunction or abnormality, cease use immediately and contact help.Kogan.com for support. - Page 4 ACCESSORIES Wall Bracket Motorised Mattress Brush 2-in-1 Bristle Brush Long Crevice Nozzle Charger...
- Page 5 OVERVIEW Speed Adjustment Button Battery Pack Battery Lock Power Button Dust Cup Dust Cup Lock Vacuum Cleaner Body Dust Cup Release Button Aluminium Tube Lock Aluminium Tube Floor Brush Lock Electric Floor Brush with Plush Roller Bar...
- Page 6 ASSEMBLY Align the floor brush to the aluminium tube and push it gently. It will connect with an audible click. Align the aluminium tube with the vacuum cleaner body and push it gently. It will connect with an audible click. Note: The floor brush and other brush heads can be connected directly to the vacuum cleaner body when a more compact unit is desired (for example, cleaning a car interior).
- Page 7 Dust Cup Installation and Removal Slide the dust cup release button forward on the vacuum cleaner body, and the dust cup assembly will pop up. Rotate the dust cup anticlockwise to remove. Roller Brush Replacement Push the release button underneath the brush head and lift the roller brush out. To install a replacement roller brush, insert the right side first and then gently press the roller brush down and into position.
-
Page 8: Operation
OPERATION Turning on vacuum Once assembly is complete, turn on the power button at the handle to turn on the vacuum. Suction adjustment Suction power can be set to three levels by pressing the suction adjustment button on the top of the machine body. There are three LED indicator lights on the button: the blue indicator light for low suction power, the purple indicator light for medium suction power and the red indicator for high suction power. - Page 9 Charging and indicator light Connect the power adapter to the charging port on the battery pack and plug it into a power outlet to begin charging the battery. The three indicator lights will flash when the battery is charging and become solid when it is fully charged.
- Page 10 Electric Floor Brush This is suitable for cleaning hard surfaces such as floor and ceramic tiles and the undercoat carpet. • Quickly remove dust thanks to the built-in independent motor and large plush roller brush rotating at high speed. • Flexibly and thoroughly clean thanks to the horizontal rotation (270°) and vertical rotation (90°) of floor brush.
- Page 11 Mattress brush • Suitable for cleaning fabrics such as mattresses and sofas. • The roller can rotate at a high speed and collect particles such as pollen and hair on bedding, improving sleeping health.
- Page 12 Long crevice nozzle This is suitable for cleaning various crevices and narrow areas in the household and car. 2-in-1 bristle brush • The brush is suitable for cleaning places such as curtains, car interior and air conditioners or any areas where hair can collect. •...
-
Page 13: Cleaning And Care
CLEANING & CARE During operation Do not let the unit get close to heaters or any other sources of heat (ovens, radiators etc.). Before use To prevent damage, remove large and sharp objects from the area to be cleaned. Do not vacuum any inflammable objects or liquids, such as gasoline, cigarettes or alcohol. - Page 14 Replacing/cleaning HEPA filter • Separate the dust cup from the machine body (refer to previous page). • Remove the HEPA filter element from the top of the dust cup and clean it with a soft brush. • The HEPA filter and dust cup can also be cleaned using warm water. Before next use, ensure the dust cup and HEPA filter are completely dry.
-
Page 15: Troubleshooting
TROUBLESHOOTING Issue Possible cause Solution Check battery and replace Vacuum wont power on Battery depleted if required Weak suction power • Dust cup or HEPA filter • Clean dust cup or HEPA filled with dust filter Dust leakage • Battery power low •... - Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
