Summary of Contents for Kogan C9 PRO

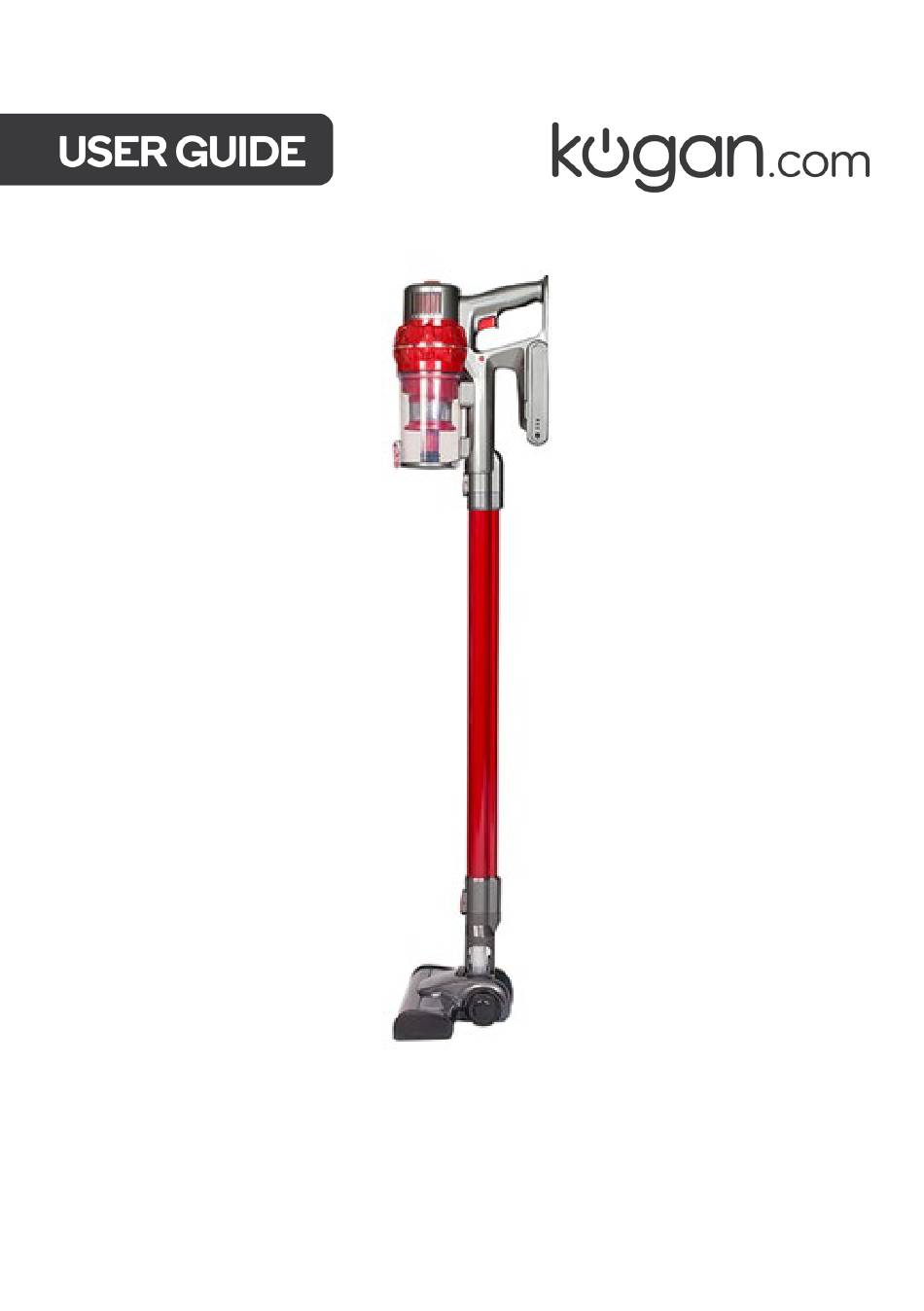

- Page 1 C9 PRO CORDLESS 25.9V STICK VACUUM CLEANER KAVACSTC09A...
-
Page 3: Safety And Warnings
• If the machine cannot be operated correctly, or some parts are broken, do not disassemble the machine. Cease use immediately and contact help.kogan.com for further assistance. •... - Page 4 OVERVIEW 12. Capacity indicator Dust cup assembly Power brush 13. Power adapter port Dust cup lid Dust cup assembly release button release button 14. 2-in-1 upholstery Power tube Power trigger brush release button 15. Long crevice nozzle Speed adjust button Aluminium power 10.
-
Page 5: Assembly Instruction
ASSEMBLY INSTRUCTION 1. Installing battery pack Insert the battery pack onto the bottom of the lower assembly until an audible ‘click’ is heard. Ensure the pack is securely connected before use. 2. Attaching Upper Assembly with Lower Assembly Align the hook of the upper assembly into the opening at the top of the lower assembly. Then press the rear of the upper assembly down onto the lower assembly until an audible ‘click’... - Page 6 3. Attaching Power Brush to Power Tube Align the opening at the top of the power brush with that of the lower end of the power tube, and insert until an audible ‘click’ is heard. 4. Attaching Power Tube to main assembly Ensure upper and lower assembly have already been attached (Step 2, previous page) before this step.
- Page 7 7. Installing the wall-mount (optional) • Fix the wall-mount plate to the wall using the screws provided. • The vacuum cleaner should be mounted to the wall only as depicted here:...
-
Page 8: Operation
OPERATION Charging the vacuum cleaner • Use only the supplied power adaptor to charge the vacuum cleaner. • Plug the adaptor into a mains power outlet, and then connect to the vacuum cleaner. Charging will automatically occur when the power outlet is switched on, and will be evident from the LED lights. -
Page 9: Cleaning And Care
CLEANING & CARE 1. Emptying the dust cup Press the dust cup assembly release button to release the dust cup assembly, then press the lower release button to remove the dust cup cover. It is recommended to remove and clean the dust cup after every use. - Page 10 • Hold the dust cup with one hand and use the opposite hand to open the upper part of the dust cup, twisting in an anti-clockwise direction, and remove the upper part of the dust cup. • Take out the filter (as shown) and clean or change it. •...
- Page 11 Cleaning the power brush head Slide the lock clip from the back of the brush. Remove the bristle from the brush. Do not wash the brush bristle. Clean by shaking dust and debris into a bin, and using a dry towel to remove dust. After cleaning, reassemble the bristle to the brush and lock the clip.
-
Page 12: Troubleshooting
The Bristle in power brush other debris product is designed for not working • Attempting to vacuum dust, large objects large objects or rubbish should be cleared beforehand. If problems persist, please contact help.kogan.com for further assistance. - Page 13 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
