KOGAN SMARTERHOME™ G80
ROBOT VACUUM AND MOP CLEANER
WITH AUTO EMPTY DOCK
KAVACRBG80P

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMARTERHOME G80 and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan SMARTERHOME G80

Summary of Contents for Kogan SMARTERHOME G80

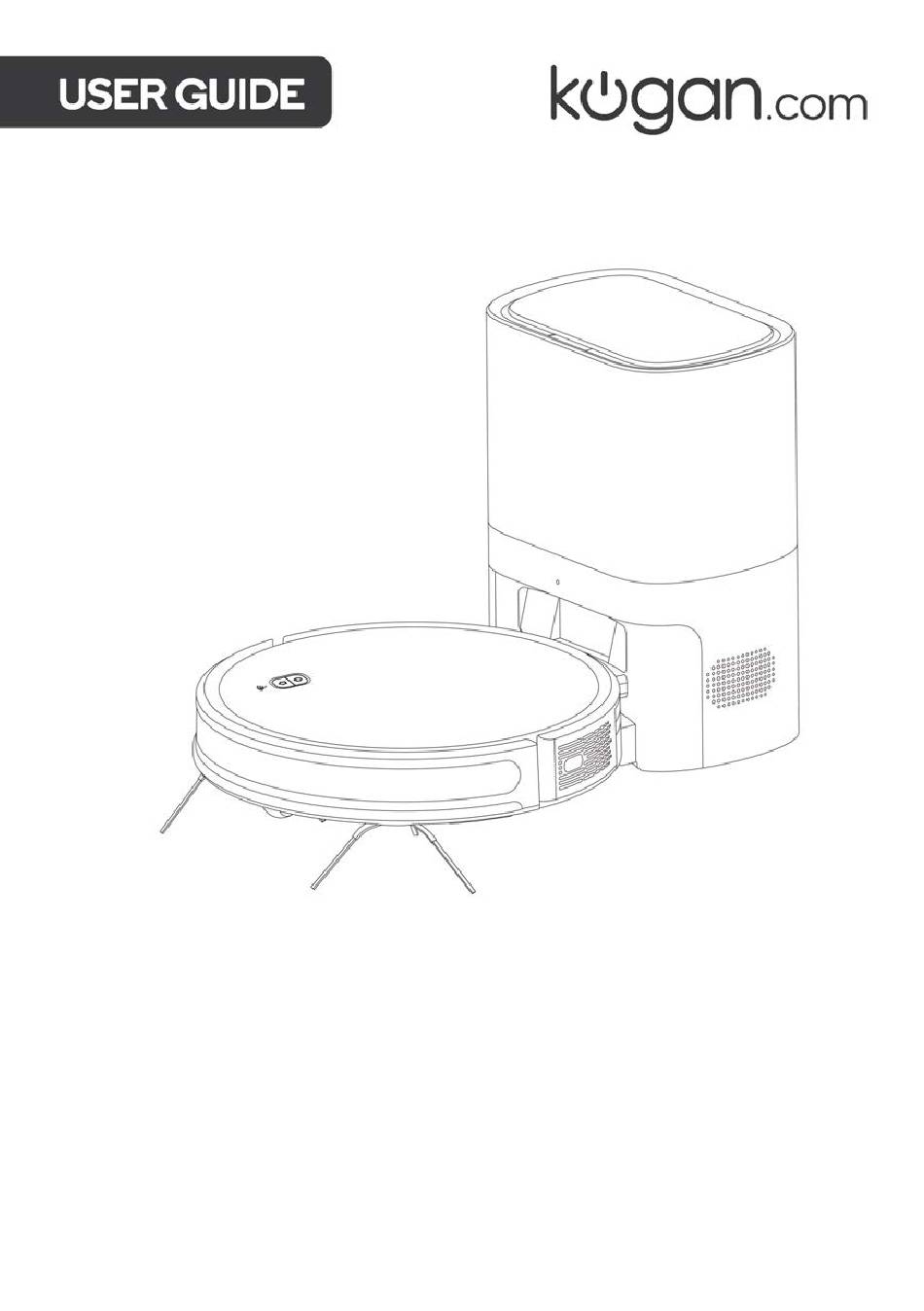

  • Page 1 KOGAN SMARTERHOME™ G80 ROBOT VACUUM AND MOP CLEANER WITH AUTO EMPTY DOCK KAVACRBG80P...

  • Page 2: Table Of Contents

    Safety & warnings Components Overview Assembly Before first use Connect to SmarterHome Google Home control Amazon Alexa control Operation Cleaning & care Specifications Troubleshooting...

  • Page 3: Safety & Warnings

    SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. • The vacuum can be used adults and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the vacuum in a safe way and understand the hazards involved.
  • Page 4 • Do not use the appliance if the cord or plug is damaged. If the appliance is not working properly, has been dropped, damaged, left outdoors, or submerged in water, cease use immediately and contact help.Kogan.com • Do not handle the plug or appliance with wet hands.
  • Page 5 • Do not attempt to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. • Do not use the appliance without the dust bag and filters properly in place. • Ensure that children are supervised to prevent them from playing with the appliance. •...

  • Page 6: Components

    COMPONENTS Robot vacuum cleaner Auto-empty dock Dustbin/Water tank Side brush HEPA & sponge filter Dust bag Cleaning brush Mopping module Mop cloth User guide Remote (optional)

  • Page 7: Overview

    OVERVIEW Wi-Fi Home button indicator Power button Reset button Home button Press it to recharge/pause. Power button • Press the button to start cleaning/pause. • Press and hold the button for 3 seconds to power on/off. Wi-Fi indicator • Off: Wi-Fi not networked. •...
  • Page 8 Button indicators Indicator Status Vacuum is cleaning, returning to the auto-empty dock to charge, Solid blue or is fully charged Flashing blue Vacuum is charging Flashing red Low battery There is an error with the vacuum. Ensure the dustbin/water tank Flashing red is secured to the vacuum.
  • Page 9 Cliff sensor Charging contact Universal wheel Side brush Battery cover Drive wheel Rolling brush Dustbin/Water tank Auto-empty Dock Cover Dust bag Lift position Indicator Charging contacts Infrared sensor Dust collecting chute...
  • Page 10 Dustbin/Water tank Filter cover HEPA filter Sponge filter Primary filter Water plug Dustbin button Dust ports Remote Control Auto-cleaning Home button Auto Direction buttons Pause/ start Spot cleaning Edge cleaning Water flow Suction level...

  • Page 11: Assembly

    ASSEMBLY Remove the protective material from both sides of the vacuum. Attach the left and right side brushes (L, R) to the corresponding letter on the underside of the vacuum. There should be a clicking sound when each side brush is secured.
  • Page 12 Ensure there is a 50cm clearance either side, and 150cm clearance in front of the auto-empty dock. Connect the power cord into a wall outlet. Note: • Do not freely move the auto-empty dock. • Avoid placing the dock in direct sunlight as this may interfere with the infrared signal and cause the vacuum cleaner to fail to return to the charging base.
  • Page 13 Whilst pressing and holding the dustbin button, insert the dustbin/water tank into the vacuum. If using the mopping function, attach the mop cloth to the mopping module, then insert the mopping module into the dustbin/water tank.

  • Page 14: Before First Use

    BEFORE FIRST USE Checks to the area • Ensure there are no loose wires or cables scattered on the ground. This is to prevent the vacuum becoming entangled or dragged along. • Ensure all fragile items, those easy to topple, dangerous items, and valuables are removed.
  • Page 15 Charging 1. Press and hold the power button to turn on the vacuum. 2. When the indicator lights on the home and power button illuminate, place the vacuum against the charging contacts on the auto- empty dock. The vacuum will prompt ‘Start charging’...

  • Page 16: Connect To Smarterhome App

    CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’.
  • Page 17 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (both buttons are slowly flashing purple). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the home and power buttons simultaneously for 3 seconds until they begin slowly flashing purple and the voice prompt “Wi-fi lost, please follow the App instructions for reconnection”...
  • Page 18 Adjust your connection method by tapping on the mode type in the top-right corner of the screen. Select “AP Mode” for the set-up type. Ensure that the device is in pairing mode, with the power and home buttons are slowly flashing purple, select “Confirm indicator is slowly blink” and tap “Next”. Follow the in-app prompts to continue AP Mode connection, which will pair your mobile phone to the device’s Wi-Fi hotspot to ensure a connection.
  • Page 19 The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete. After successfully being added, you will have the option to rename the device and assign it to a location.

  • Page 20: Google Home Control

    Note: You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Google Home app From the home page of the Google Home app, select the “+” icon (top left corner, see arrow in the below screenshot) to access the ‘Add and manage’...
  • Page 21 Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
  • Page 22 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.

  • Page 23: Amazon Alexa Control

    AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Alexa app From the home page of the Alexa app, select the “ ” icon in the bottom-right and select “Skills &...
  • Page 24 Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.

  • Page 25: Operation

    OPERATION Powering ON/OFF Press and hold the power button for 3 seconds. The indicators on the power and home buttons will illuminate, indicating the vacuum is turned on. When the robot vacuum cleaner is in standby, press and hold the power button for 3 seconds.
  • Page 26 Mapping and general cleaning Once the vacuum is powered, press the power Area cleaned button. On first use, the vacuum will start mapping out the area then begin cleaning. This map will be remembered by the vacuum on subsequent cleans. As an area is cleaned, the app will display the trail the vacuum has cleaned.
  • Page 27 Virtual Walls A magnetic strip (not supplied) can be installed in doorways to set a virtual wall and stop the vacuum entering a restricted area (such as bathroom or kitchens). Magnetic strip Note: Fix the magnetic strip to the ground to avoid it peeling off. Ensure the strip does not interfere with the opening and closing on the door.
  • Page 28 Spot Cleaning Spot cleaning focuses on specific areas to efficiently clean up local messes or spills. To enable spot cleaning: • Press spot cleaning button on the remote • Use the SmarterHome app to specify the desired location on the map. The vacuum will sweep the area in a spiralling motion with a diameter of 1.2m.
  • Page 29 DND (do not disturb) Mode When activated, DND mode ensures that the vacuum does not start cleaning or make any noise during specific periods or when you prefer uninterrupted activities or rest. In DND mode, the vacuum will continue to function normally, but it will not initiate any cleaning cycles or emit audible alerts.

  • Page 30: Cleaning & Care

    CLEANING & CARE • Ensure the vacuum is turned off before performing any maintenance or cleaning. • Only remove and reattach the components outlined in this user guide when cleaning. Do not completely disassemble the vacuum. Rolling brush The rolling brush should be cleaned once a week. Turn over the vacuum and press the buckle on the rolling brush cover.
  • Page 31 Side Brushes The side brushes should be cleaned once a week. Turn over the vacuum and pull out the side brushes vertically. Use the cleaning brush to clear dust and tangled debris, then reattach the side brushes. Press and reattach the left and right side brush (L, R) against the corresponding letters on the bottom of the vacuum.
  • Page 32 Filters The filters should be cleaned once a week. Lift the filter cover and remove the HEPA filter and sponge layer. Flush the primary filter, HEPA filter, sponge and dustbin under a water tap. Use your fingers to flush through harder to reach areas. After washing, shake off the water droplets, and air dry the primary filter, HEPA filter, sponge, and dustbin.
  • Page 33 Infrared Receiver Sensor The infrared receiver sensor should be cleaned once a month. Gently wipe the sensor with a soft dry cloth. Cliff Sensors The cliff sensors should be cleaned once a month. Gently wipe the sensor with a soft dry cloth.
  • Page 34 Auto-Empty Dock The charging contacts and infrared sensor on the auto-empty dock should be cleaned once a month. Gently wipe the areas with a soft dry cloth. Charging contact Infrared sensor Charging contact Firmware updates Check the app for any firmware updates. The battery capacity shall not be less than 50% when updating.
  • Page 35 Changing the Dust Bag 1. Unplug the power 2. Pull up the handle on 3. Remove the dust bag cord and open the the dust bag. from the auto-empty auto-empty dock dock. cover. 4. Discard the used dust 5. Insert the new dust bag 6.
  • Page 36 Auto-empty Dock Filter If the indicator on the auto-empty dock is flashing red after the dust bag is changed: Unplug the auto-empty dock, then turn it upside down. Check if the dust filter is blocked. If blocked, use a screwdriver to unscrew the dust filter cover, then clean the filter using a soft, dry brush.

  • Page 37: Specifications

    SPECIFICATIONS Vacuum Overall dimension 320x320x76mm Net weight 2.8kg Battery 2600mAh Rated voltage 14.4V Rated power Charging time 300min Capacity of dust bin 250ml Capacity of water tank 240ml Auto-empty Dock Overall dimension 320x240x165mm Net weight 2.7kg Rated Input 100-240V, 50/60Hz Rated Output 19V=1A Rated power...

  • Page 38: Troubleshooting

    TROUBLESHOOTING Problem Reason/Solution • The battery level is too low. Place the vacuum against the charging contacts of the auto-empty dock. The vacuum will then begin charging and turn on. The vacuum is not • The ambient temperature is below 0°C or above 40°C. turning on.
  • Page 39 • The Wi-Fi connection is abnormal. Reset the The vacuum cannot be Wi-Fi settings, ensure you have the latest version of the connected to the Kogan SmarterHome™ app™, and try to connect to the Kogan SmarterHome™ Wi-Fi network again. app.
  • Page 40 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
