Z12 PRO CORDLESS STICK

VACUUM CLEANER

KAVACSTV12A

Table of Contents

Need help?

Do you have a question about the Z12 PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for Kogan Z12 PRO

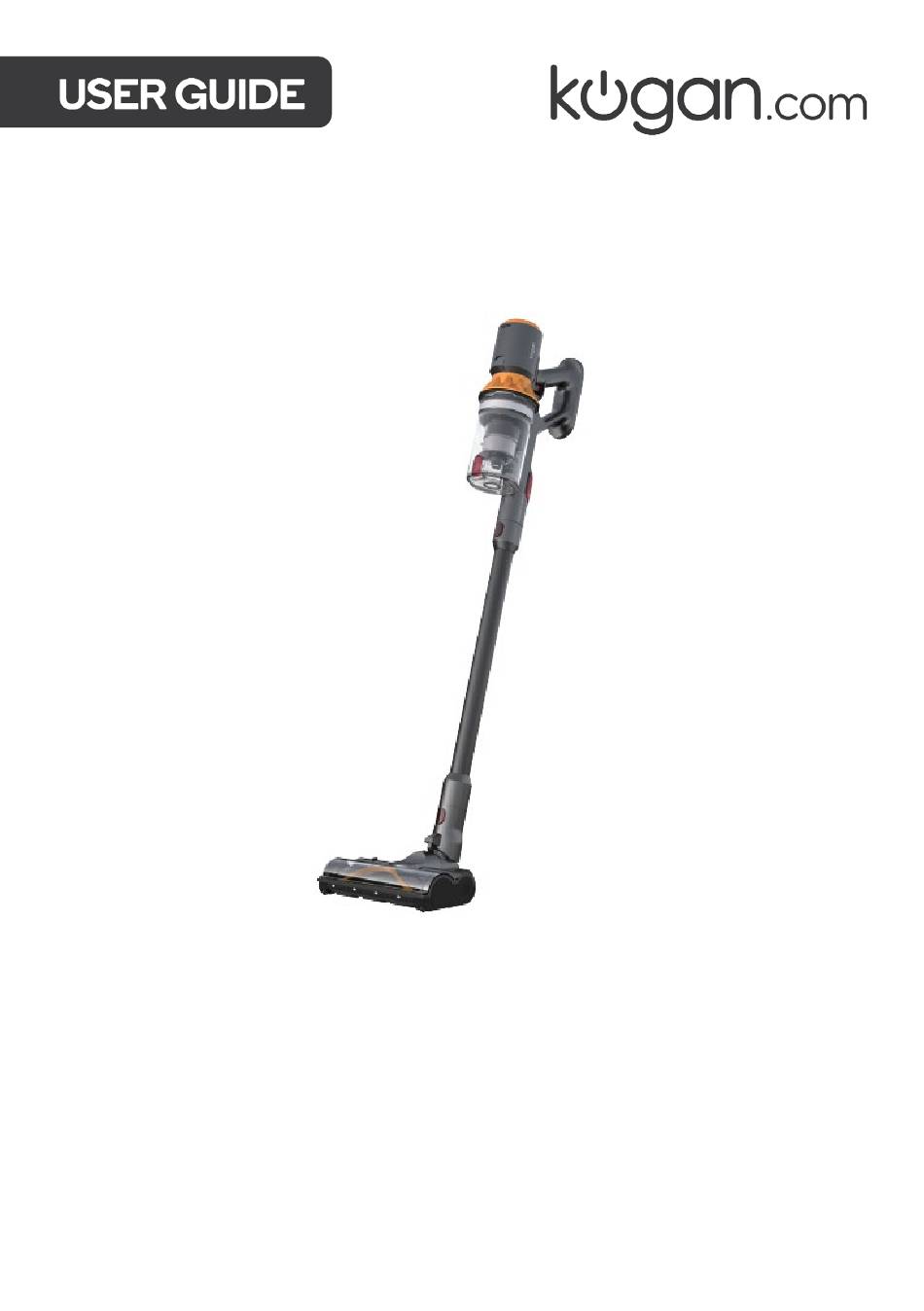

Page 1 Z12 PRO CORDLESS STICK VACUUM CLEANER KAVACSTV12A...
Page 2: Table Of Contents
Safety & Warnings Components Overview Installation Assembly Operation Cleaning & Care Specifications Troubleshooting Notes...
Page 3: Safety & Warnings
• Keep the vacuum out of reach of children. This is not a toy. Supervise use carefully in environments with children. • Exercise caution when vacuuming stairs. • If the vacuum is damaged, cease use immediately and contact help.Kogan.com for support. • Follow the instructions in this user guide carefully. Only use accessories recommended by Kogan.com with this product.
Page 4: Components
COMPONENTS Wall Bracket Fabric Brush Upholstery Brush Crevice Nozzle Cleaning Brush Charger Screw (x2) Wall Anchor (x2) 3M Adhesive (x4)
Page 5: Overview
OVERVIEW Suction Power Adjustment Button Battery Pack Power Button Vacuum Cleaner Body Dust Cup Release Button Aluminium Tube Floor Brush Lock Floor Brush Aluminium Tube Lock Dust Cup Lock Dust Cup Battery Lock...
Page 6: Installation
INSTALLATION Install the Bracket The bracket offers two installation methods to accommodate different wall materials and user preferences. Select the method that best suits your situation. Using screws: Drill holes at the marked positions, Screws Wall Anchors ensuring there are no wires, pipes, or other obstacles inside the wall.
Page 7: Assembly
ASSEMBLY Attaching the Floor Brush • Align the floor brush with the connector on the extension tube and gently push it into place. When you hear a ‘click,’ the connection is secure. • To disassemble, press the floor brush lock as shown in the diagram and pull the brush downward.
Page 8 Attaching the Crevice Nozzle • Align the crevice nozzle with the connector on the vacuum body and gently push it into place. When you hear a ‘click,’ the connection is secure. • To disassemble, press the crevice nozzle lock and pull it downward. Removing and Attaching the Dust Cup •...
Page 9: Operation
OPERATION Charging the Vacuum Cleaner • To charge the vacuum, connect the charger to the charging port on the battery pack, then into an electrical outlet. • While charging, the 3 indicators will flash. The vacuum is fully charged when all 3 indicators illuminate solidly.
Page 10 Using the Accessories Floor Brush • Ideal for cleaning hard surfaces such as floors, ceramic tiles, and low-pile carpets. • Equipped with an independent motor and a large plush roller brush that rotates at high speed for efficient dust removal. •...
Page 11 Crevice Nozzle • Designed for cleaning narrow spaces and crevices in both homes and cars. • Effectively reaches tight areas such as gaps between sofas, shelves, window corners, and car interiors for a thorough clean. Upholstery Brush • Ideal for cleaning delicate fabrics, sofa cushions, and other upholstered furniture.
Page 12: Cleaning & Care
CLEANING & CARE Storage For long-term storage, store the vacuum cleaner in a cool, dry place away from direct sunlight and humidity. Emptying the Dust Cup Press the ‘Dust Cup Release’ button under the vacuum body. The dust cup will pop out. Rotate the dust cup anticlockwise to remove it.
Page 13 Cleaning the Floor Brush To remove the roller brush cover, slide the switch to the left as illustrated in the image below. Lift the handle on the left end of the roller brush to remove it. Clean the roller brush. To reattach the roller brush, align the right end of the roller brush with the slot and then press the left end of the brush down into the groove.
Page 14 Cleaning the Fabric Brush • Use the cleaning brush to dust the underside of the fabric brush and remove debris as needed. • To remove the roller brush, place the switch into the ‘on’ position and then remove the roller brush rod. •...
Page 15: Specifications
SPECIFICATIONS Rated power 400W Battery configuration Li-ion 2000mAh 29.6V Charging time 2~3H Noise level 75dB Outline dimension 1172 × 256 × 217 Weight (net/gross weight) 3.3kg/4.55kg Capacity of dust cup 540ml...
Page 16: Troubleshooting
Solution The battery is out of Check if the battery has power or power. needs recharging. Fails to operate. Contact help.Kogan.com for The battery needs to be replaced. support. The dust cup is full. Empty and clean the dust cup.
Page 17 Common Fault Indications on the Battery Pack If the 3 indicators on the battery pack flash red, the following issues may have occurred: Problem Solution If the ‘Power’ button is held down for more than To resolve this, press the ‘Power’ 6 seconds, the vacuum will automatically shut button again to restart the down, and the 3 indicators will flash red.
Page 18: Notes
NOTES...
Page 20 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
