Kogan KAVACRBG50A User Manual

Kogan KAVACRBG50A User Manual

Smart robot vacuum cleaner with mopping function

Advertisement

KOGAN SMARTERHOME™ G50
SMART ROBOT VACUUM CLEANER
WITH MOPPING FUNCTION
KAVACRBG50A, KAVACRBG50B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KAVACRBG50A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kogan KAVACRBG50A

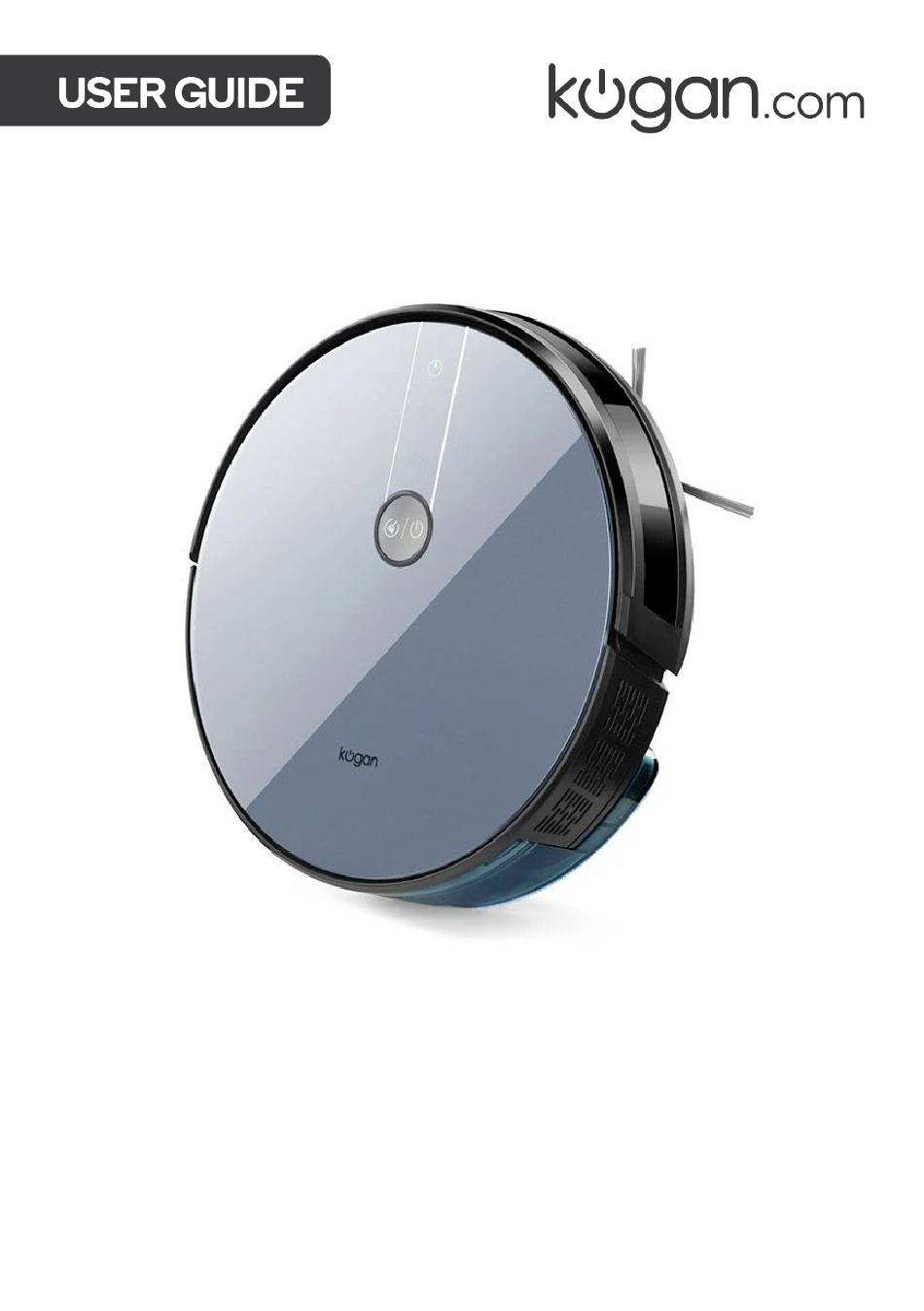

  • Page 1 KOGAN SMARTERHOME™ G50 SMART ROBOT VACUUM CLEANER WITH MOPPING FUNCTION KAVACRBG50A, KAVACRBG50B...
  • Page 2: Table Of Contents

    Safety & Warnings Components List Overview Installation Charging Connect to SmarterHome™ App Operation Cleaning & Care Google Home Control Amazon Alexa Control Specifications Troubleshooting Notes...
  • Page 3: Safety & Warnings

    SAFETY & WARNINGS • Before using this product, please read the following safety instructions and follow all the safety precautions. • Any operation inconsistent with this instruction manual may cause damage to this product. Note: • Only authorised technicians can disassemble this product. Users are not recommended to disassemble this product by themselves.
  • Page 4 • Please make sure that this product is not powered on when removing the battery. • Please recycle the discarded batteries safely. Warning: • Use only the original rechargeable battery and charging station specially equipped by the manufacturer. Non-rechargeable batteries are strictly prohibited; please refer to "product parameters"...
  • Page 5: Components List

    COMPONENTS LIST G50 Smart Robot Vacuum Cleaner Charging Station Remote Control Water Tank Dust Box Cleaning Brush Side Brushes (x2)
  • Page 6: Overview

    OVERVIEW Bottom...
  • Page 7 Dust Box Charging Station Water Tank and Mop Assembly...
  • Page 8 Remote Control Note: Images in this user guide are for reference only.
  • Page 9: Installation

    INSTALLATION Remove Protection Before using the vacuum, remove the protective strip on the unit and the protective film on the charging station. Remove the protective strip Remove the protective film Placing and charging: Fix the charging station against the wall while placed on a flat floor.
  • Page 10: Charging

    CHARGING Charging Place the robot vacuum on the charging station for charging. During charging, the indicator light blinks; if charging is over, the light always on. The charging time is approximately 5 hours. Attention: When manual charging, please keep the front bumper of the robot 2cm away from the charging station to ensure the metal contacts connect well for successful charging.
  • Page 11: Connect To Smarterhomeā„¢ App

    CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’.
  • Page 12 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (the light will be flashing rapidly). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by double pressing the Start/Pause button until the light starts flashing rapidly.
  • Page 13 Ensure that the device is in pairing mode, with the light flashing rapidly, and tap “Confirm light is rapidly flashing”. The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete.
  • Page 14: Operation

    OPERATION Start Cleaning According to different cleaning needs, the product has a variety of cleaning modes to choose from. You can start various cleaning modes via the vacuum, remote control or app. Automatic Cleaning: While shutdown, press the Start/Pause button on the robot vacuum for a few seconds. When the indicator light of the vacuum is on, it indicates that the vacuum is powered on.
  • Page 15 Mopping mode: Applicable scenario: Used to do wet & dry mopping. Install the water tank in the vacuum and press the start button on the vacuum or the automatic cleaning button or ) buttons on the remote controller to start mopping mode.
  • Page 16 Pause, Wake Up and Shut Down: Pause: During operation, press the vacuum button or the pause button on the remote controller or app to pause the vacuum. Wake up: If the vacuum is idle for more than ten minutes, it will automatically enter sleep mode (all the lights will turn off).
  • Page 17 Water tank use: Do not use the floor mopping function on carpets. After mopping the floor, please empty the water tank and remove the mop. Add water Install the water tank assembly Install mop Start mopping floor...
  • Page 18: Cleaning & Care

    CLEANING & CARE Clean Side Brush Use a cleaning brush to clean the rubbish on the sides. If you have more hair on the side, use scissors to carefully cut the hair. Dust Box Press the dust box button to take out the dust box.
  • Page 19 4. Open the HEPA Filter cover. Take out the HEPA filter and the primary filter. It is not recommended to wash the HEPA filter with water. Tap gently to remove the dust. 6. Rinse the primary filter.
  • Page 20 The dust box should be scrubbed or wiped. 8. Dry the dust box and filter assembly and keep it dry to ensure its service life.
  • Page 21 9. Replace the primary filter and the HEPA filter into the dust box. Notes: • Before installing the filters, please ensure that the HEPA filter and the primary filter are dry. • Do not expose the HEPA filter and primary filter to the sun. Air dry in a shaded place.
  • Page 22 Water Tank and Mop Take out the water tank assembly. Remove the mop. 3. Empty the water tank.
  • Page 23 4. Wash the mop. Air dry the mop. 6. Dry the water tank.
  • Page 24 Water Tank Dustbin Put the water tank horizontally with the dustbin port upside. Clean the rubbish in the dustbin of the water tank with running water. 3. Ensure the contacts are dry.
  • Page 25 Roller Brush and Side Brush Open the roller brush cover assembly. Take out the roller brush shaft. 3. Use the cleaning brush to cut off any hair or fibres tangled on the roller brush. 4. Clean the side brush.
  • Page 26 3 months to prevent the battery from over discharge. If the battery is over discharged or not used for a long time, the product may lose ability to charge entirely. Please contact Kogan.com for any support. Do not disassemble it by yourself.
  • Page 27: Google Home Control

    Note: You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Google Home app From the home page of the Google Home app, select the “+” icon (top left corner, see arrow in the below screenshot) to access the ‘Add and manage’...
  • Page 28 Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
  • Page 29 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.
  • Page 30: Amazon Alexa Control

    AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding “SmarterHome” to the Alexa app From the home page of the Alexa app, select the “ ” icon in the bottom-right and select “Skills &...
  • Page 31 Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
  • Page 32 Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands.
  • Page 33: Specifications

    SPECIFICATIONS Classification Item Parameter Diameter 330mm Structural class Height 74mm Net weight 2.7kg Voltage 14.4 volts Battery 2500mAh rechargeable Battery lithium battery pack Bin capacity 600 ml Automatic charging / Charging type manual charging Sweeping parameter Auto/ Schedule/ Single Cleaning mode room/ Fixed point/ Border/ Mop floor Charging Time...
  • Page 34: Troubleshooting

    The machine failed to get an open place and press the machine to open area out of trouble cleaning key again. Tips: If you can't rule out the corresponding faults by referring to the above methods, please contact customer Kogan.com for support.
  • Page 35: Notes

    NOTES...
  • Page 36 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
