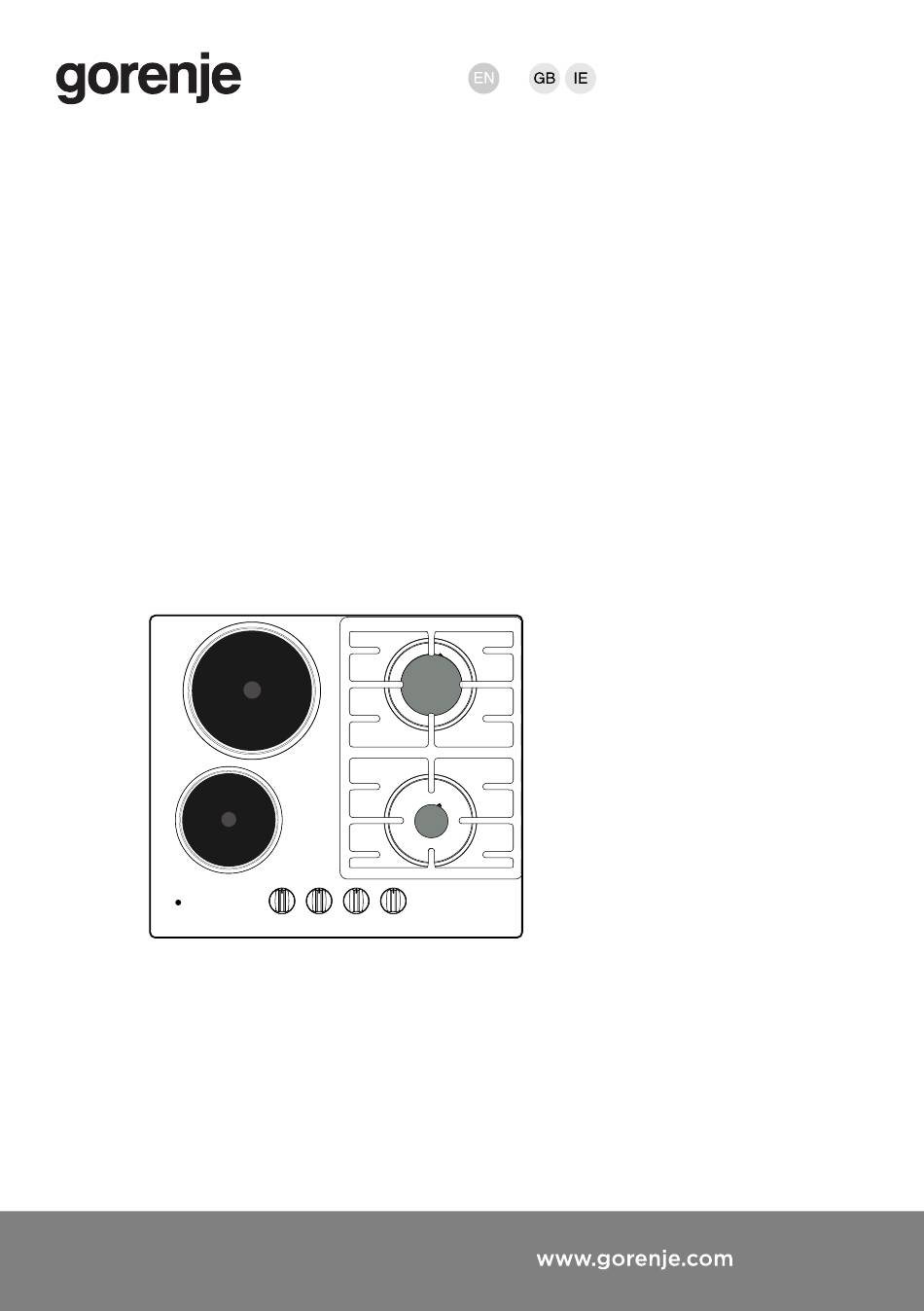

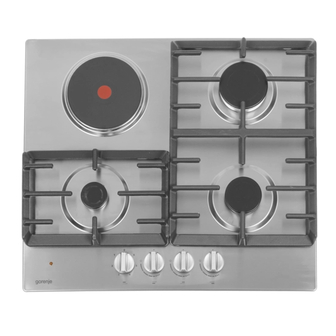

- Page 1 Instructions for use Mixed gas & electric hob BGH6xxA - BGH6xxB - BGR6xxA BGR6xxB...
- Page 2 The following symbols are used throughout the manual, and they have the following meanings: INFORMATION! Information, advice, tip, or recommendation WARNING! Warning general danger GAS CONNECTION! Warning gas connection ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! Warning danger of fire...
-
Page 3: Table Of Contents
Contents Safety regulations ........................READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! ..........Safe use ........................... User Manual ..........................Models ............................Description ..........................Information according to regulation (EU only) 66/2014 ............Use ............................Burner position: ........................Cleaning: ........................... On/Off- & Residual heat indicator ..................... Faults table .......................... -
Page 4: Safety Regulations
Safety regulations READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! General The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings. Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty. WARNING! This appliance and the accessible parts will become hot during use. - Page 5 NEVER try to extinguish a fire with water. Instead, switch the appliance off and then cover the flames with, for example, a lid or a fire blanket. Never flambé under a cooker hood. The high flames can cause a fire, even if the cooker hood is switched off. WARNING! Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the appliance...
- Page 6 When you use the hob for the first time, you will notice a “new smell”. Don’t worry, this is normal. If the kitchen is well ventilated, the smell will soon disappear. The appliance is not intended to be operated by means of an external timer or separate remote control system.
-
Page 7: Safe Use
WARNING! This appliance can be used by children aged 8 years and over, as well as by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised and instructed in the safe use of the appliance and understand the hazards involved. - Page 8 Never immerse hot burner caps and pan supports in cold water. Rapid cooling can damage the enamel. The distance between the pan and a knob or non-heat resistant wall should always be greater than one centimetre. In the case of smaller distances, the high temperature may cause the knobs or wall to discolour and/or deform.
-
Page 9: User Manual
User Manual Models Aa - Auxiliary burner Bb - Semi-rapid burner Cc - Rapid burner Dd - ø 180 mm heating element Ee - ø 145 mm heating element BGH6xxA BGH6xxB BGR6xxA BGR6xxB... -
Page 10: Description
Description Gas burner G20 - 20 mbar Burner Power BGH6xxA BGH6xxB BGR6xxA BGR6xxB Auxiliary 1.05 kW Semi-rapid 1.80 kW Rapid 3.00 kW G20 - 25 mbar Burner Power BGH6xxA BGH6xxB BGR6xxA BGR6xxB Auxiliary 1.00 kW Semi-rapid 1.90 kW Rapid 3.00 kW G30/G31 - 28-30/37 mbar Burner Power / Mass flow... -
Page 11: Information According To Regulation (Eu Only) 66/2014
Information according to regulation (EU only) 66/2014 Measurements according to EN60350-2 Model identification BGH6xxA BGH6xxB BGR6xxA BGR6xxB Type of hob Mixed gas & electric hob Number of electric heating elements Heating technology per electric heating ele- Solid plates Radiant heating ele- ments ments Diameter electric... -
Page 12: Use
Before first use BGH6xxA/B: Turn on the electric heating elements (without a pan) for 3-5 minutes at maximum power. During this time, the protective coating forms a durable layer on the electric heating elements. There may appear some smoke the first time the elements are heating up. BGR6xxA/B: Clean the heating elements with a damp cloth. - Page 13 Electric heating elements WARNING! BGH6xxA/B & BGR6xxA/B The distance between the pan and a non-heat resistant wall should always be greater than one centimetre. In the case of smaller distances, the high temperature may cause the knobs or wall to discolour and/or deform. Always keep the pans within the edges of the hob.
- Page 14 Control: BGH6xxA/B & BGR6xxA/B Control of gas burners (1) Push (2) Turn left + hold (3) Hold down 3 sec. low setting high setting BGH6xxA/B Control of electric heating elements low setting high setting BGR6xxA/B Control of electric heating elements high setting low setting...
-
Page 15: Burner Position
Burner position: Cleaning: We recommend that you clean the appliance after each use. This prevents that overcooked food can damage the glass surface. BGH6xxA/B Daily cleaning Use warm water with some dishwashing detergent to clean the area around the electric heating elements. -
Page 16: On/Off- & Residual Heat Indicator
Heavily polluted glass 1.. Immediately remove any food remains, burned grease, sugar or stubborn stains from the glass-ceramic hob using a scraper, even if the hob is still hot! Sugar and/or other food-related remains may permanently damage the glass-ceramic surface. Hold the scraper at the correct angle (45°... - Page 17 BGR6xxA/B: 1. On/Off indicator: Indicates that one or multiple heating elements turned on. 2. Residual heat indicator rear heating element: Indicates that the rear heating element is (still) hot. 3. Residual heat indicator front heating element: Indicates that the front heating element is (still) hot. HOT SURFACE! Warning! Risk of injury when touching the hot heating element.
-
Page 18: Faults Table
Faults table Following is some advice on rectifying some common problems. What happened...? Possible cause What to do? The burners will not burn. The flame is uneven due to a Have an expert check the gas The flame is uneven/unstable. wrong gas power setting. -
Page 19: Installation Instruction
Installation instruction Safety regulations This appliance should only be connected by a registered installer. Prior to installation, ensure that the local distribution conditions (voltage, frequency, nature of the gas and gas pressure) and the adjustment of the appliance are compatible. This appliance must be earthed. - Page 20 If a stationary appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
- Page 21 The gas supply valve must always be placed in an easily accessible position. The worktop into which the hob is fitted should be flat. The walls and the worktop surrounding the appliance must be heat resistant up to at least 105 °C. The bottom kitchen element must be equipped with a built-in horizontal shelf at a distance of not less than 15 cm from the bottom surface of the worktop.
-
Page 22: Preparations For Installation
Preparations for installation Free space around the appliance A (mm) B (mm) C (mm) D (mm) min. 650 min. 600 min. 450 min. 120 Dimensions Appliance: A (mm) B (mm) C (mm) D (mm) BGH6xxA/B BGR6xxA/B... -
Page 23: Sealing Tape
Built-in: A (mm) B (mm) C (mm) D (mm) E (>mm) F (mm) WARNING! The bottom kitchen element must be equipped with a built-in horizontal shelf at a distance of not less than 150 mm from the bottom surface of the worktop. The space between the shelf and the cooktop must be empty and may not be used for the storage of utensils. -
Page 24: Gas Connection
Gas connection PTFE tape Accessibility oven metal safety oven hose... -
Page 25: Built-In
Built-in Min. 20 mm Max. 50 mm Connecting & testing WARNING! Check if connections are gastight. -
Page 26: Conversion Instruction
Conversion instruction WARNING! Adjusting for a different gas type! WARNING! Attention! Performing these instructions by a non-qualified person can lead to dangerous situations. The supplier is not responsible for the consequences (the arising of a hazardous situation and/or damage to persons or goods) caused by the incorrect performance of these instructions by engineers who are not employees of the supplier. -
Page 27: Converting Nozzles
Contents of conversion set Nozzles for burners and (if applicable) by-pass screws for gas taps. Data label with the modified gas specifications and setting. Tools needed: T1 Socket spanner (7 mm) T2 Screwdriver flat blade (4 mm) T3 Nose pliers T4 Open-end spanner (7 mm) T5 Leak test spray Converting nozzles... -
Page 28: Check For Gas Tightness And Operation
3A. Screw the by-pass screws (3) of all gas taps completely in by using the flat-blade screwdriver (T2). 3B. Remove the by-pass screws by using the flat-blade screwdriver (T2) and the nose pliers (T3). Place the new by-pass screws with the nose pliers and screw the by-pass screws of all gas taps in, by using the flat-blade screwdriver. -
Page 29: Environmental Considerations
Environmental considerations Disposal of the appliance and packaging Sustainable materials have been used during the manufacture of this appliance. The appliance packaging is recyclable. The following may have been used: cardboard; paper; polyethylene film (PE); CFC-free polystyrene (PS-rigid foam); polypropylene tape (PP). Dispose of these materials in a responsible manner and in accordance with government regulations. - Page 30 GORENJE gospodinjski aparati, d.o.o. Address: Partizanska 12, 3320 Velenje, Slovenia Phone: +386 (0)3 899 10 00 Fax: +386 (0)3 899 28 00 www.gorenje.com 857146-a5...
