Summary of Contents for Gorenje BG7 D Series

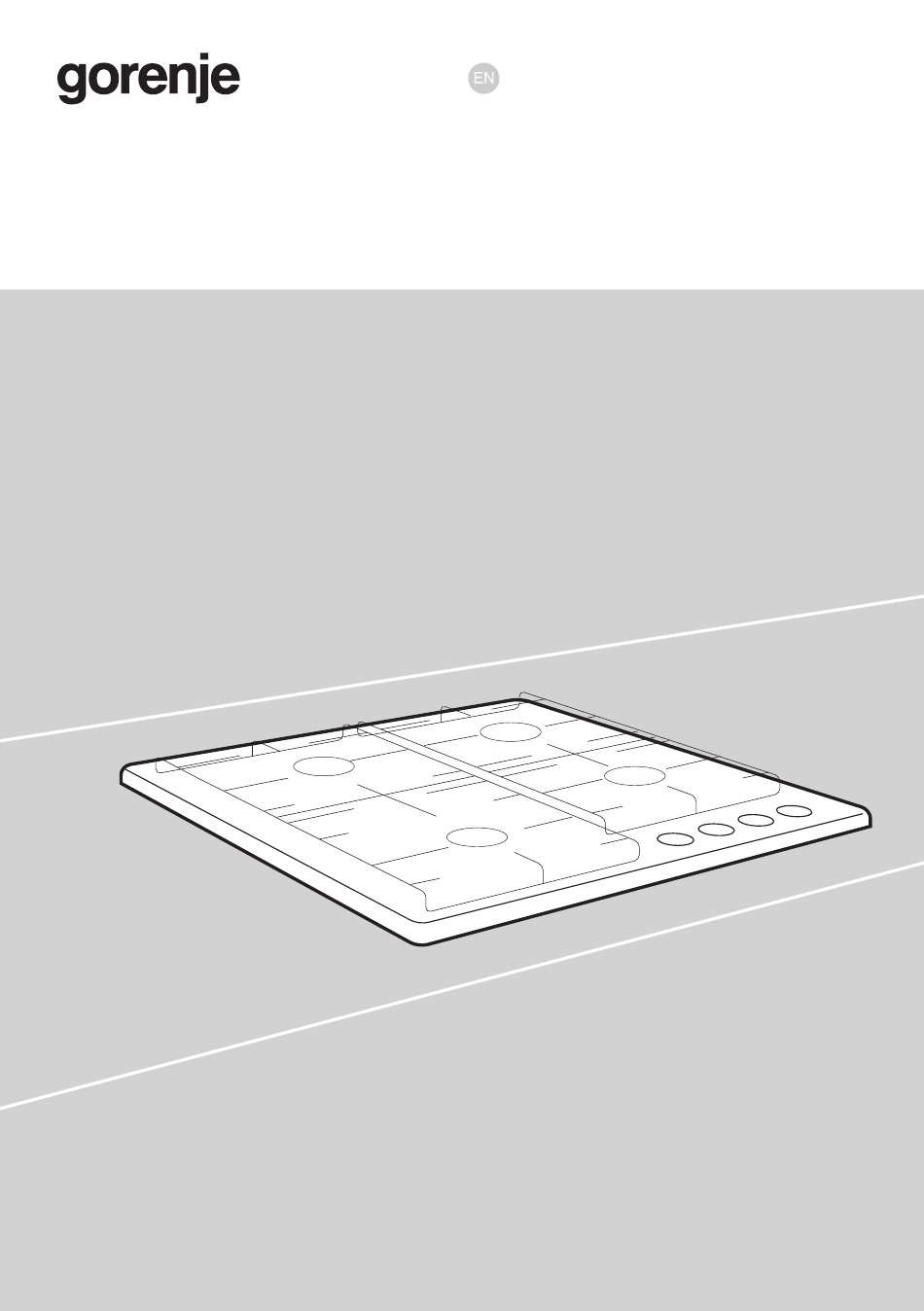

  • Page 1 User Manual Gas Hobs BG3xA - BG6xA - BG6xB - BG6xD BG6xE - BG7xA - BG7xB - BG7xC BG7xD - BG9xA - BG9xB - BG9xD BG9xE...
  • Page 2 The following symbols are used throughout the manual, and they have the following meanings: INFORMATION! Information, advice, tip, or recommendation WARNING! Warning general danger GAS CONNECTION! Warning gas connection ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! Warning danger of fire...
  • Page 3: Table Of Contents

    Contents Safety regulations ........................READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! ..........Gas hob ............................ Safe use ........................... User Manual ..........................Models ............................Description ..........................Information according to regulation (EU only) 66/2014 ............Use ............................Burner position: ........................Cleaning: ........................... Faults table ..........................
  • Page 4: Safety Regulations

    Safety regulations READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! General • The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings. • Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty. WARNING! This appliance and the accessible parts will become hot during use.
  • Page 5 DANGER OF FIRE! • WARNING: Danger of fire: do not store items on the cooking surfaces. • WARNING: Cooking with fat or oil on a hob without supervision can be dangerous and can lead to a fire. • CAUTION! The cooking process has to be supervised. A short-term cooking process has to be supervised continuously.
  • Page 6: Electric Shock

    • If a drawer underneath the appliance is permitted (see the installation instructions), without an intermediate bottom, this should not be used to store highly flammable objects/materials. Ensure that there is adequate clearance of a few centimetres between the bottom of the hob and the contents of any drawers.
  • Page 7: Gas Hob

    • The cooking zones/burners heat up during use and stay hot for a while afterwards. Keep young children away from the hob during and immediately after cooking. Gas hob • CAUTION! The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.
  • Page 8: Safe Use

    Safe use • Never cover the appliance with a cloth or something similar. If the appliance is still hot or is switched on, there is a risk of fire. • Do not use the appliance as a worktop. The appliance may accidentally be switched on or still be hot, which means objects could melt, become hot or catch fire.
  • Page 9: User Manual

    User Manual Models BG3xA Aa - Auxiliary burner Bb - Semi-rapid burner Cc - Rapid burner Dd - Wok burner BG6xA BG6xB BG6xD BG6xE...
  • Page 10 BG7xA / BG7xC BG7xB / BG7xD BG9xA / BG9xD BG9xB / BG9xE...
  • Page 11: Description

    Description G20 - 20 mbar Burner Power BG3xA BG6xA BG6xB BG7xA BG7XC BG6xD BG6xE BG7xB BG7xD BG9xA BG9xD BG9xB BG9xE Auxiliary 1.05 kW Semi-rapid 1.80 kW Rapid 3.00 kW 3.50 kW 4.05 kW G30/G31 - 28-30/37 mbar Burner Power / Mass flow BG3xA BG6xA BG6xB...
  • Page 12: Information According To Regulation (Eu Only) 66/2014

    G20 - 25 mbar (HU) Burner Power / Mass flow BG3xA BG6xA BG6xB BG7xC BG6xD BG6xE BG7xD BG9xD BG9xE Auxiliary 1.15 kW Semi-rapid 2.00 kW Rapid 3.30 kW 3.90 kW G30 /G31 - 37 mbar (PL) Burner Power / Mass flow BG3xA BG6xA BG6xB...
  • Page 13: Use

    Ø12-24 cm Ø15-26 cm Min. 1 cm WARNING! The distance between the pan and a non-heat resistant wall should always be greater than one centimetre. In the case of smaller distances, the high temperature may cause the knobs or wall to discolour and/or deform.
  • Page 14: Burner Position

    Burner position: Cleaning: Faults table Following is some advice on rectifying some common problems. What happened...? Possible cause What to do? The burners will not burn. The flame is uneven due to a Have an expert check the gas The flame is uneven/unstable. wrong gas power setting.
  • Page 15 A visit by a service technician during the warranty period will be charged if the appliance is not functioning because of improper use. Store these instructions in a place where they are always readily accessible; if you pass the appliance on to another person, the instructions should also be included. NOTE! If the problem persists despite observing the instructions above, call an authorized service technician.
  • Page 16: Installation Instruction

    Installation instruction Safety regulations • Faulty parts may only be replaced by original parts. The manufacturer can only guarantee that original parts meet safety requirements. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 17: Preparations For Installation

    • A safety hose may not be bent and must not come into contact with moving parts of kitchen units. • The gas supply valve must always be placed in an easily accessible position. • The worktop into which the hob is fitted should be flat. •...
  • Page 18: Sealing Tape

    Table continued from last page BG6xA/B BG6xD/E A (mm) B (mm) C (mm) D (mm) E (>mm) F (mm) G (mm) Sealing tape Stainless steel drip tray Glass drip tray BGR6xxA/B BGH6xxA/B worktop Gas connection PTFE tape...
  • Page 19: Accessibility

    Accessibility oven safety hose metal oven Built-in Min. 20 mm only for 75+90 cm Max. 50 mm Connecting & testing WARNING! Check if connections are gas-tight.
  • Page 20: Conversion Instruction

    Conversion instruction WARNING! Adjusting for a different gas type! WARNING! Attention! Performing these instructions by a non-qualified person can lead to dangerous situations. The supplier is not responsible for the consequences (the arising of a hazardous situation and/or damage to persons or goods) caused by the incorrect performance of these instructions by engineers who are not employees of the supplier.
  • Page 21: Contents Of Conversion Set

    Gas type P mbar Modification BG6xB/E / BG7xA/B / BG7xC/D / BG9xA/B BG9xD/E nozzle nozzle 20 / 25 Convert from G20 - 20 mbar to: G30/G31 28-30/37 Replace nozzle & screw in bypass (see 3A) (PL) Replace nozzle & screw in G30/G31 bypass (see 3A) G30/G31...
  • Page 22: Converting Nozzles

    Converting nozzles NOTE! Please note: disconnect the appliance from the power supply. Prevent damage of the worktop. Lay down parts of the appliance on a protected base. For converting to a different type of gas, the nozzles have to be changed. The values are also marked on the nozzle.
  • Page 23: Check For Gas Tightness And Operation

    Check for gas tightness and operation When the appliance is connected to the gas supply, use leak test spray to check the gas tightness. 1. Seal the injector. 2. Open the gas tap. Attention: press and open the tap to override the thermo-electric safety device and keep it pressed down.
  • Page 24: Environmental Considerations

    Environmental considerations Disposal of the appliance and packaging Sustainable materials have been used during the manufacture of this appliance. The appliance packaging is recyclable. The following may have been used: • cardboard; • paper; • polyethylene film (PE); • CFC-free polystyrene (PS-rigid foam); •...
  • Page 25: Your Notes

    Your notes...
  • Page 26 Your notes...
  • Page 27 Your notes...
  • Page 28 830202-a27...
