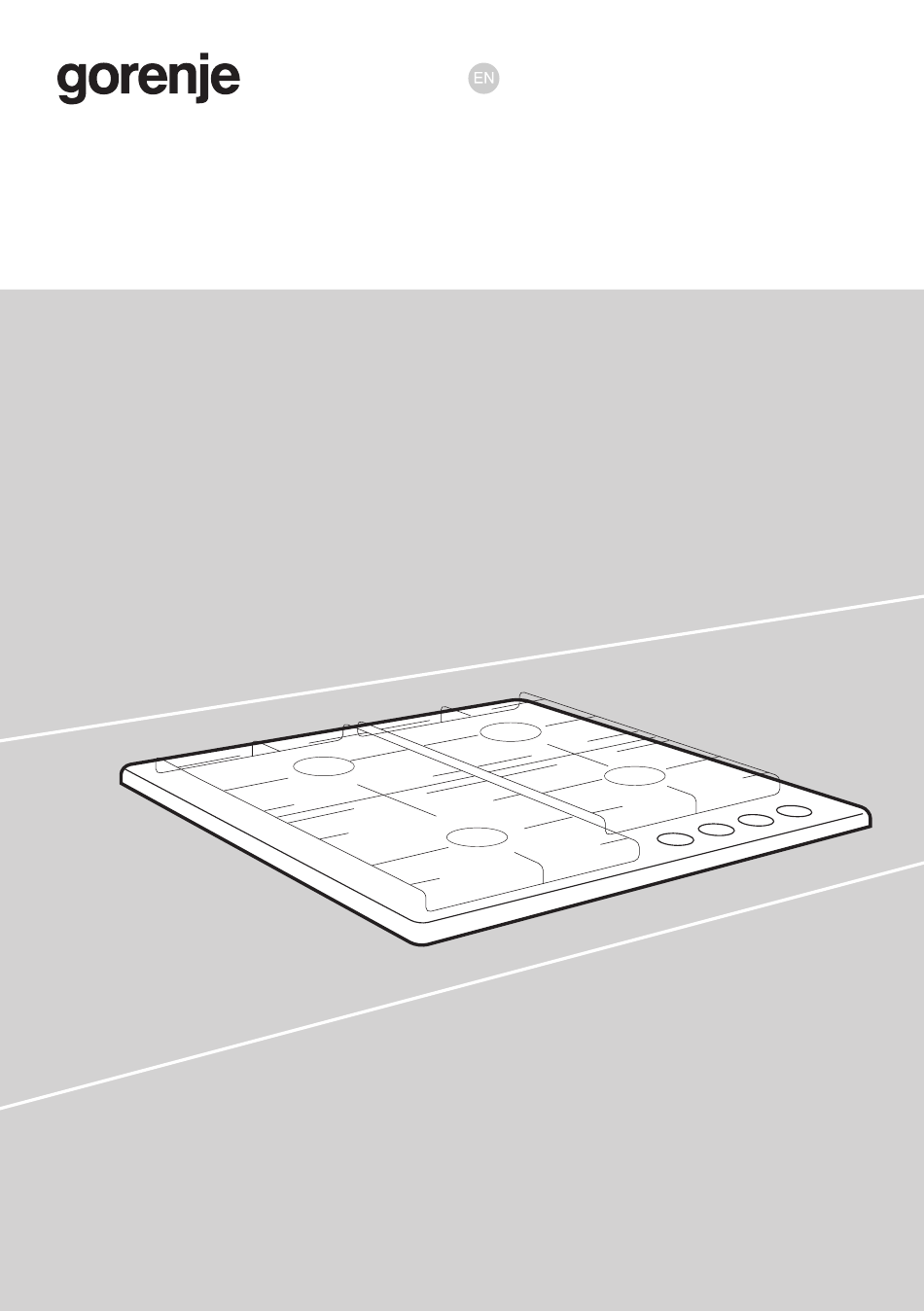

- Page 1 User Manual Gas Hobs BG3xA - BG6xA - BG6xB - BG6xD BG6xE - BG7xA - BG7xB - BG7xC BG7xD - BG9xA - BG9xB - BG9xD BG9xE...
- Page 2 The following symbols are used throughout the manual, and they have the following meanings: INFORMATION! Information, advice, tip or recommendation WARNING! Warning general danger GAS CONNECTION! Warning gas connection ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! Warning danger of fire...
-
Page 3: Table Of Contents
Contents Safety regulations ........................READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! ..........Gas hob ............................ Safe use ........................... User Manual ..........................Models ............................Description ..........................Use ............................Burner position: ........................Cleaning: ........................... Faults table ..........................Information according to regulation ..................Installation instruction ...................... -
Page 4: Safety Regulations
Safety regulations READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! General • The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings. • Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty. WARNING! This appliance and the accessible parts will become hot during use. - Page 5 DANGER OF FIRE! • WARNING: Danger of fire: do not store items on the cooking surfaces. • WARNING: Cooking with fat or oil on a hob without supervision can be dangerous and can lead to a fire. • CAUTION! The cooking process has to be supervised. A short-term cooking process has to be supervised continuously.
-
Page 6: Electric Shock
• If a drawer underneath the appliance is permitted (see the installation instructions), without an intermediate bottom, this should not be used to store highly flammable objects/materials. Ensure that there is adequate clearance of a few centimetres between the bottom of the hob and the contents of any drawers. -
Page 7: Gas Hob
• The cooking zones/burners heat up during use and stay hot for a while afterwards. Keep young children away from the hob during and immediately after cooking. Gas hob • CAUTION! The use of a gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed. -
Page 8: Safe Use
Safe use • Never cover the appliance with a cloth or something similar. If the appliance is still hot or is switched on, there is a risk of fire. • Do not use the appliance as a worktop. The appliance may accidentally be switched on or still be hot, which means objects could melt, become hot or catch fire. -
Page 9: User Manual
User Manual Models BG3xA Aa - Auxiliary burner Bb - Semi-rapid burner Cc - Rapid burner Dd - Wok burner BG6xA BG6xB BG6xD BG6xE... - Page 10 BG7xA / BG7xC BG7xB / BG7xD BG9xA / BG9xD BG9xB / BG9xE...
-
Page 11: Description
Description G20 - 20 mbar Burner Power BG3xA BG6xA BG6xB BG7xA BG7XC BG6xD BG6xE BG7xB BG7xD BG9xA BG9xD BG9xB BG9xE Auxiliary 1.05 kW Semi-rapid 1.80 kW Rapid 3.00 kW 3.50 kW 4.05 kW G30/G31 - 28-30/37 mbar Burner Power / Mass flow BG3xA BG6xA BG6xB... -
Page 12: Use
G20 - 25 mbar (HU) Burner Power / Mass flow BG3xA BG6xA BG6xB BG7xC BG6xD BG6xE BG7xD BG9xD BG9xE Auxiliary 1.15 kW Semi-rapid 2.00 kW Rapid 3.30 kW 3.90 kW G30 /G31 - 37 mbar (PL) Burner Power / Mass flow BG3xA BG6xA BG6xB... -
Page 13: Burner Position
Control: (1) Push (2) Turn left + hold (3) Hold down 3 sec. high setting low setting Accessories (to be obtained via After Sales): Suits wok burner Suits Auxiliary burner Code: 806206 Code: 537584 (BG6Ax/BG6Bx/BG6Hx/BG6Fx/BG6Ix) Code: 819356 (BG6Jx/BG7Dx) Burner position:... -
Page 14: Cleaning
Cleaning: Faults table Following is some advice on rectifying some common problems. What happened...? Possible cause What to do? The burners will not burn. The flame is uneven due to a Have an expert check the gas The flame is uneven/unstable. wrong gas power setting. -
Page 15: Information According To Regulation
Information according to regulation (EU) 66/2014 - (EU) 2023/826 Model identification BG3xA BG6xA BG6xB BG7xA BG6xD BG6xE BG7xB BG7xC BG7xD BG9xA BG9xB BG9xD BG9xE Type of hob Gas hob Gas hob Gas hob Gas hob Number of gas burners Heating technology Gas burner Gas burner Gas burner... -
Page 16: Installation Instruction
Installation instruction Safety regulations • Faulty parts may only be replaced by original parts. The manufacturer can only guarantee that original parts meet safety requirements. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. -
Page 17: Preparations For Installation
• The worktop into which the hob is fitted should be flat. • The walls and the worktop surrounding the appliance must be heat resistant up to at least 105 °C. Preparations for installation Free space around the appliance A (mm) B (mm) C (mm) D (mm) - Page 18 A (mm) B (mm) C (mm) D1 (mm) D2 (mm) BG6xA/B/D/E Built-in dimensions BG6: WARNING! The bottom kitchen element must be equipped with a built-in horizontal shelf at a distance of not less than 60 mm from the top surface of the worktop. The space between the shelf and the cooktop must be empty and may not be used for the storage of utensils.
-
Page 19: Sealing Tape
Sealing tape Stainless steel drip tray Glass drip tray BGH6xxA/B BGR6xxA/B worktop Gas connection PTFE tape Accessibility oven metal safety hose oven... -
Page 20: Built-In
Built-in Min. 20 mm only for 75+90 cm Max. 50 mm WARNING! If you combine your gas hob with an oven with steam functions (Steam oven), the required thickness of the kitchen worktop is at least 38 mm. Otherwise, with other types of ovens, the minimum thickness of the kitchen worktop is 20 mm. -
Page 21: Conversion Instruction
Conversion instruction WARNING! Adjusting for a different gas type! WARNING! Attention! Performing these instructions by a non-qualified person can lead to dangerous situations. The supplier is not responsible for the consequences (the arising of a hazardous situation and/or damage to persons or goods) caused by the incorrect performance of these instructions by engineers who are not employees of the supplier. -
Page 22: Contents Of Conversion Set
Gas type P mbar Modification BG6xB/E / BG7xA/B / BG7xC/D / BG9xA/B BG9xD/E nozzle nozzle 20 / 25 Convert from G20 - 20 mbar to: G30/G31 28-30/37 Replace nozzle & screw in bypass (see 3A) (PL) Replace nozzle & screw in G30/G31 bypass (see 3A) G30/G31... -
Page 23: Converting Nozzles
Converting nozzles NOTE! Please note: disconnect the appliance from the power supply. Prevent damage of the worktop. Lay down parts of the appliance on a protected base. For converting to a different type of gas, the nozzles have to be changed. The values are also marked on the nozzle. -
Page 24: Check For Gas Tightness And Operation
Check for gas tightness and operation When the appliance is connected to the gas supply, use leak test spray to check the gas tightness. 1. Seal the injector. 2. Open the gas tap. Attention: press and open the tap to override the thermo-electric safety device and keep it pressed down. -
Page 25: Environmental Considerations
Environmental considerations Disposal of the appliance and packaging Sustainable materials have been used during the manufacture of this appliance. The appliance packaging is recyclable. The following may have been used: • cardboard; • paper; • polyethylene film (PE); • CFC-free polystyrene (PS-rigid foam); •... -
Page 26: Your Notes
Your notes... - Page 27 Your notes...
- Page 28 943755-a30...
