Related Manuals for SMITH SYSTEM Acrobat 26550
Summary of Contents for SMITH SYSTEM Acrobat 26550

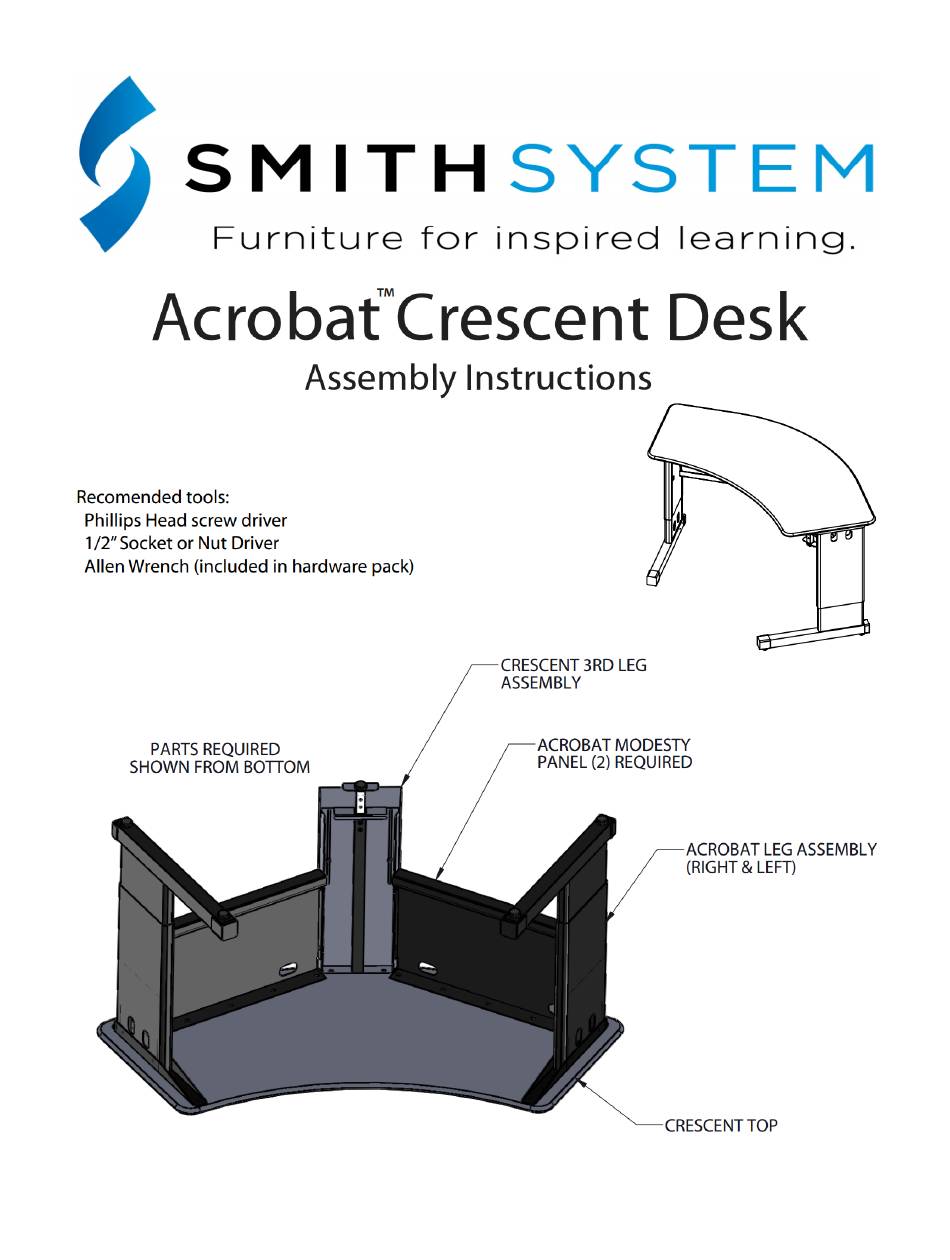

- Page 1 (Model # 26550, 26551) If you have damaged or missing components please contact customer service. Form# 179954 800-328-1061 02/2013...
- Page 2 Hardware and Components #10 Wood Screws 10-32X1/2” Machine Screws ¼-20X1/2” Machine Screws (Qty. 18) (Qty. 8) (Qty. 8) P/N-70054 P/N-70226 P/N-77471 Allen Wrench 3/8” – Dog Nut Screw Tinnerman Clip (Qty. 1) (Qty. 2) (Qty. 1) P/N-77813 P/N-77741 P/N-77482 ½” Nut Acrobat Modesty Panel (Qty.
- Page 3 Step 1: On a clean flat surface, flip the top upside down so that the pre-drilled holes are visible. As shown in figure 1, attach the two modesty panels to the center leg using the large 1/4-20 machine screws (2 per panel). Do not tighten completely. If you have damaged or missing components please contact customer service.
- Page 4 Step 2: Adjust the left and the right leg to the desired height by removing the 4 machine screws in each leg and re-attach them securely (figure 2A). if a high range is required, install the Tinnerman Clips into the square openings (one per leg). As shown in figures 2&2B, attach the two legs to the modesty panels using the large 1/4-20 machine screws.
