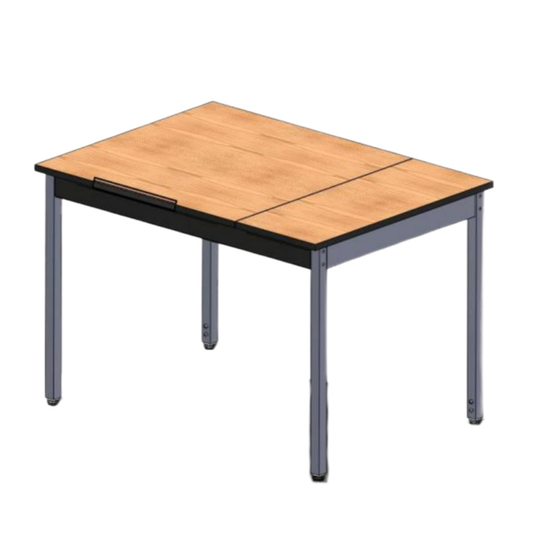

Graphic Arts Table
Assembly Instructions
Model
27344
27345
27346
27347
27348
For Assistance in assembling product, missing or damaged parts,
or to place an order, please contact customer service at 800-328-1061
You may also place your order online at
www.smithsystem.com
Form# 179773
04/2013
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SMITH SYSTEM 27344
Summary of Contents for SMITH SYSTEM 27344
- Page 1 Graphic Arts Table Assembly Instructions Model 27344 27345 27346 27347 27348 For Assistance in assembling product, missing or damaged parts, or to place an order, please contact customer service at 800-328-1061 You may also place your order online at www.smithsystem.com...
- Page 2 Pencil Retainer P/N: 78083 (QTY: 1) Spacer Clip Only Models 27344, 27345, 27346 For Assistance in assembling product, missing or damaged parts, or to place an order, please contact customer service at 800-328-1061 You may also place your order online at www.smithsystem.com...
- Page 3 Assembly Instructions Step 1: NOTE: You will assemble the legs while the top assembly is still in the shipping box. Remove the filler pieces on each end; this should allow some working room to attach the legs. You may break down the short ends of the box to gain more access to the ends.
- Page 4 Step 2: Attach the cable. Take the loose end of the cable and set it flush against the pilot hole on the leg. Using a Phillips head screwdriver, or an electric screwdriver, attach the eyehole of the cable with the sheet metal screw to the leg (See Picture 3).
