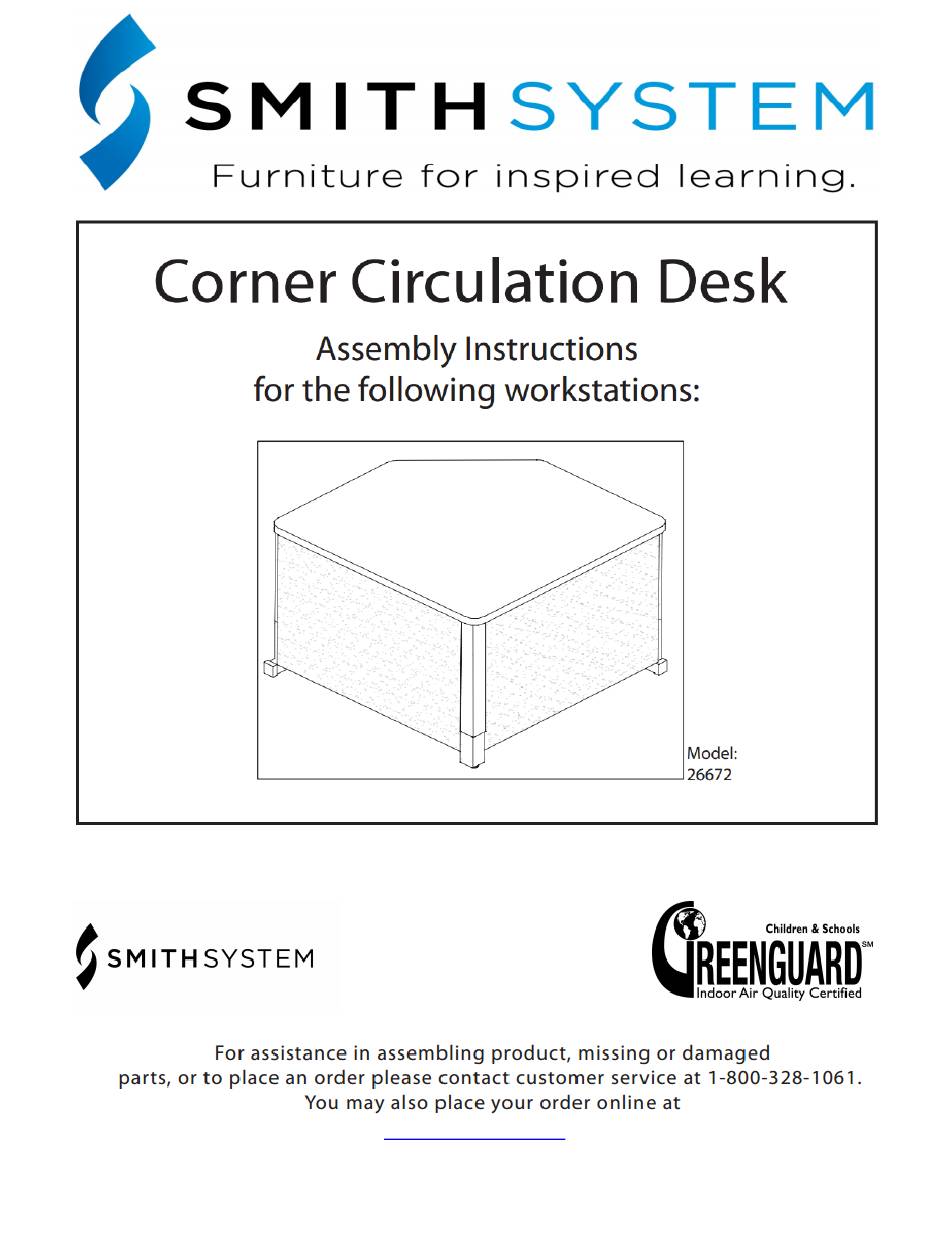

- Page 1 www.smithsystem.com If you have damaged or missing components please Form# 179862 contact customer service. 04/2014 800-328-1061...
- Page 2 Special Notes 1. Check that all components are accounted for and undamaged before assembling. 2. Please assemble product in a clean and dry area. 3. For larger units, you may need another person to help assemble the product. 4. Clean the product with a mild cleaner and a damp cloth. Hardware and Components #10 Wood Screw 10-32X1/2”...
- Page 3 Assembly Instructions Step 1: Locate all of the parts needed for assembly. Place the table top face down on a clean, dry surface. Align the corner leg and the side leg sets with the predrilled holes in the top. Step 2: Now adjust the corner leg to the desired height using (4) ¼-20X1/2” Machine Screws. Next adjust the side legs using (8) ¼-20X1/2”...
- Page 4 Step 3: Now Install (1) Tinnerman Clip per leg, in the square hole located inside of the leg. Next Install (4) Tinnerman Clips at the top and the bottom of the corner leg. NOTE: Tinnerman Clips are only used if the desk is raised to a high range, when set to a low range the threaded hole for the lower leg will be used instead of the Tinnerman Clips.
- Page 5 Step 5: Attach the leg sets, the corner leg, and the Modesty panel to the top using the wood screws provided. Step 6: Go back and tighten all of the screws referenced in step 4. With help, flip the desk into the upright position.
