Summary of Contents for SMITH SYSTEM 26680

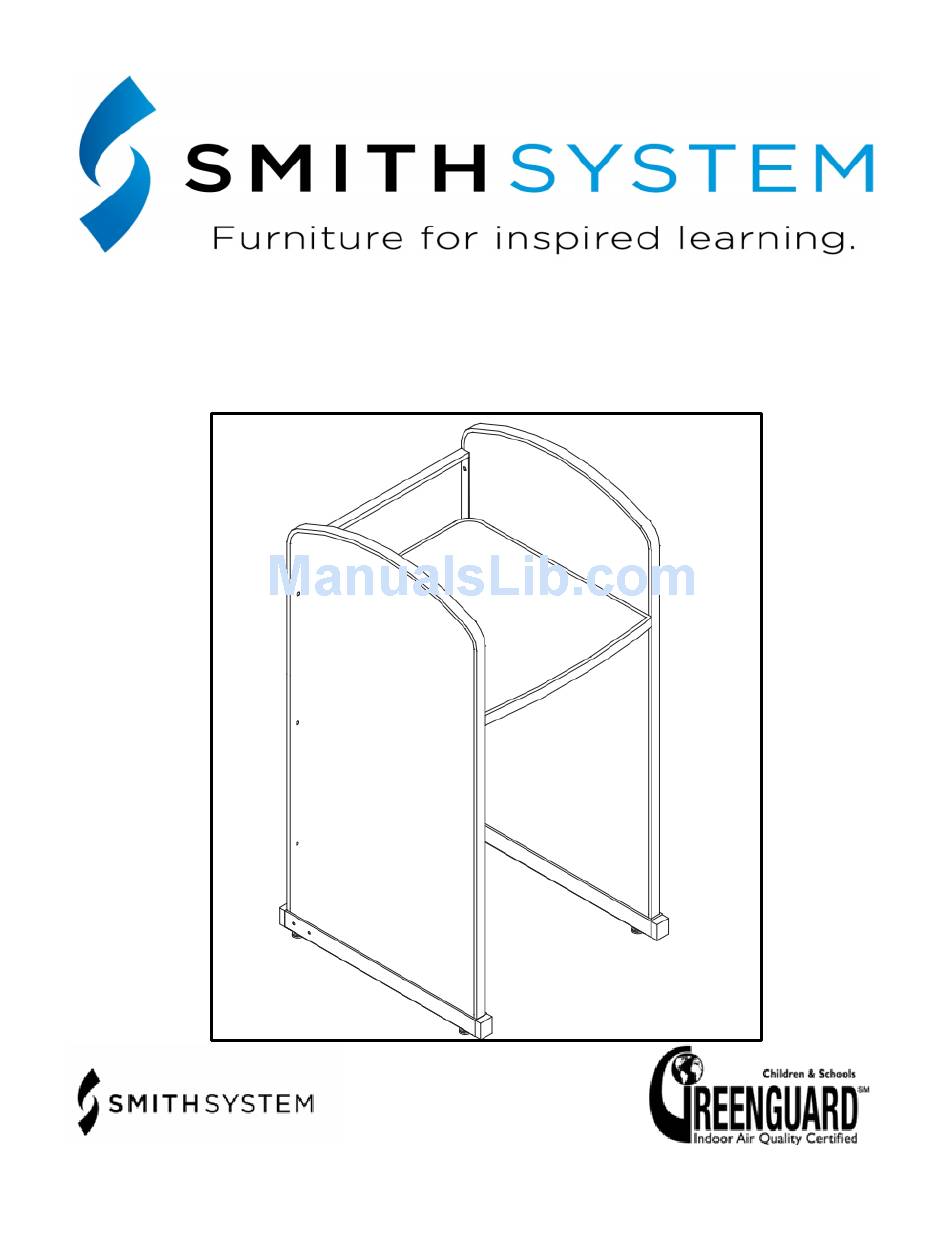

- Page 1 Library Carrels Assembly Instructions (Starter Unit) See Instruction Sheet 179874 for Adder Unit Model 26680 26682 26684 For assistance in assembling product, or to place An order please contact customer service at Form# 179873 800-328-1061 02/2013...
- Page 2 Special Notes 1. Check that all components are accounted for and undamaged before assembling. 2. Assemble product in a clean and dry area. 3. Due to size, we recommend that two people should be involved in assembling product. 4. Clean the product with a mild cleaner and a damp cloth. Tools You will need a Phillips head screwdriver.
- Page 3 Assembly Instructions Library Carrels (Starter Unit) URGENT: Back panel orientation determines the top height. By rotating 180 degrees, you can change the carrel to the desk height or the kiosk height. “C” brace on back panel *Due to size, we recommend that two people should be involved in assembling the product Step 1: With help, lay the right and the left panels on the floor while aligning the cross bar with the pilot holes.
- Page 4 Step 2: Slide the back panel in-between both panels with the bracket facing up. Verify alignment with the pilot holes and attach using (6) Connector Bolts (See Drawing 2A). Next, attach the brackets to either kiosk or desk height by using (6) Wood Screws (See Drawing 2B). Drawing 2A Drawing 2B Back Panel orientation determines...
