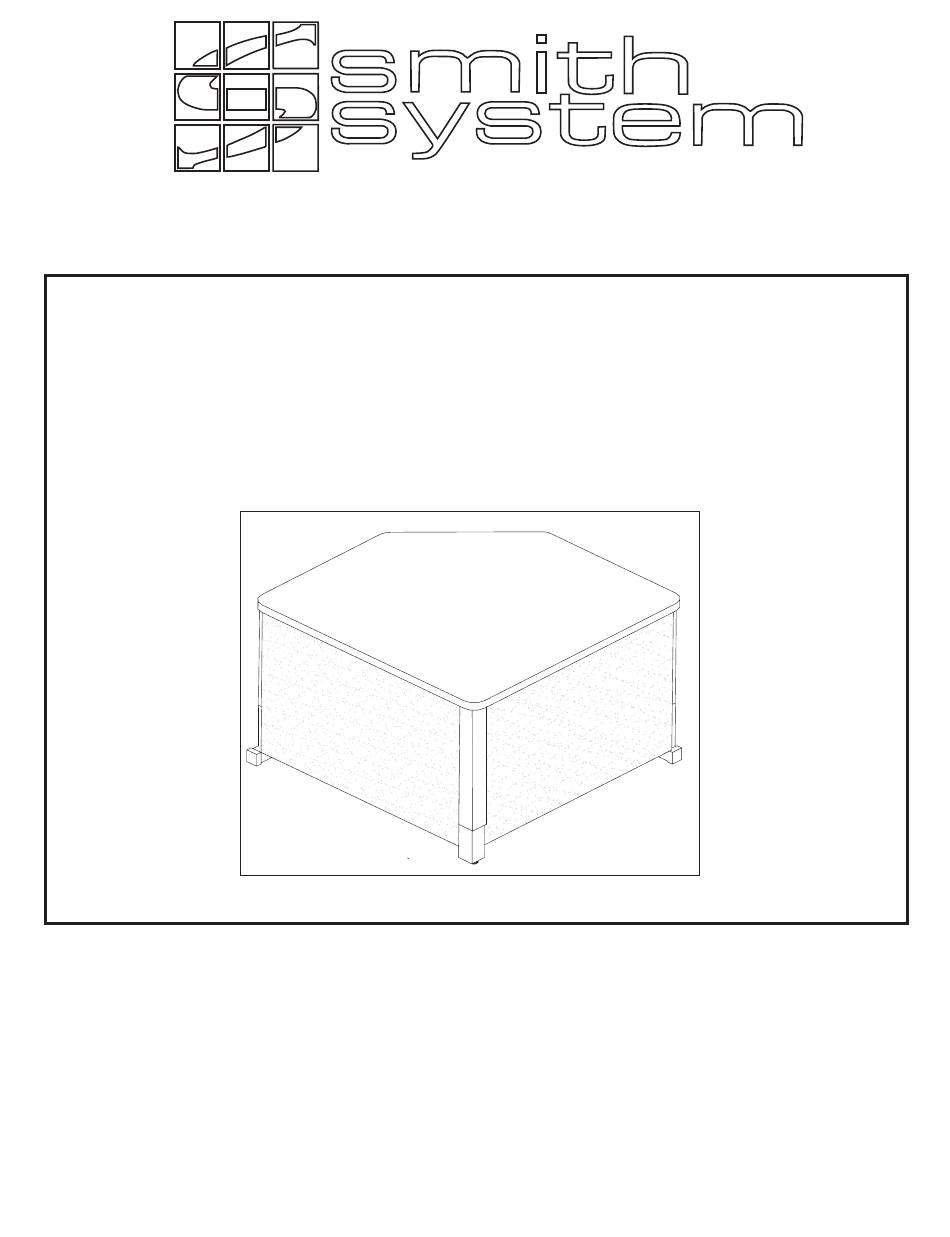

Corner Circulation Desk
Assembly Instructions
for the following workstations:
Model:
26672
For assistance in assembling product, missing or damaged
parts, or to place an order please contact customer service at 1-800-328-1061.
You may also place your order online at
www.smithsystem.com
8/2006
Form # 179862
page 1 of 5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SMITH SYSTEM 26672
Summary of Contents for SMITH SYSTEM 26672
- Page 1 Corner Circulation Desk Assembly Instructions for the following workstations: Model: 26672 For assistance in assembling product, missing or damaged parts, or to place an order please contact customer service at 1-800-328-1061. You may also place your order online at www.smithsystem.com...
- Page 2 1. Check that all components are accounted for and undamaged before assembling. 2. Please assemble product in a clean and dry area. 3. For larger units you may need another person to help assemble the product. 4. Clean the product with a mild cleaner and a damp cloth. You will need a Phillips head screw driver.
- Page 3 Assembly Instructions for Corner Circulation Workstation Step 1. Locate all the parts needed for assembly. Place the table top face down on a clean, dry surface. Attach the brackets to the top using the (8) #10 Wood Screws by using a Phillips head screw driver. (See Drawing 1A). Next attach the corner leg to the top using (4) #10 Wood Screws.
- Page 4 Assembly Instructions for Corner Circulation Workstation Step 3. Now adjust the corner leg to the desired height using (4) 1/4-20x1/2" Machine Screws. (See Drawing 3A). Next adjust the side legs using (8) 1/4-20x1/2" Machine Screws to desired height. (See Drawing 3B). Drawing 3C shows the side view of what the exact length the leg needs to be set at.
- Page 5 Step 5. Next loosely attach panel assembly to legs using (4) 1/4-20x1/2" Machine Screws per panel. Use 2 Wood Screws per panel to attach the bracket to the table top. Drawing 5 Step 6. Now go back and tighten all the screws referenced in all 5 steps. With help, tip the desk in the upright position.
