88 5537 09
The Lafayette
Entertainment Stand
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

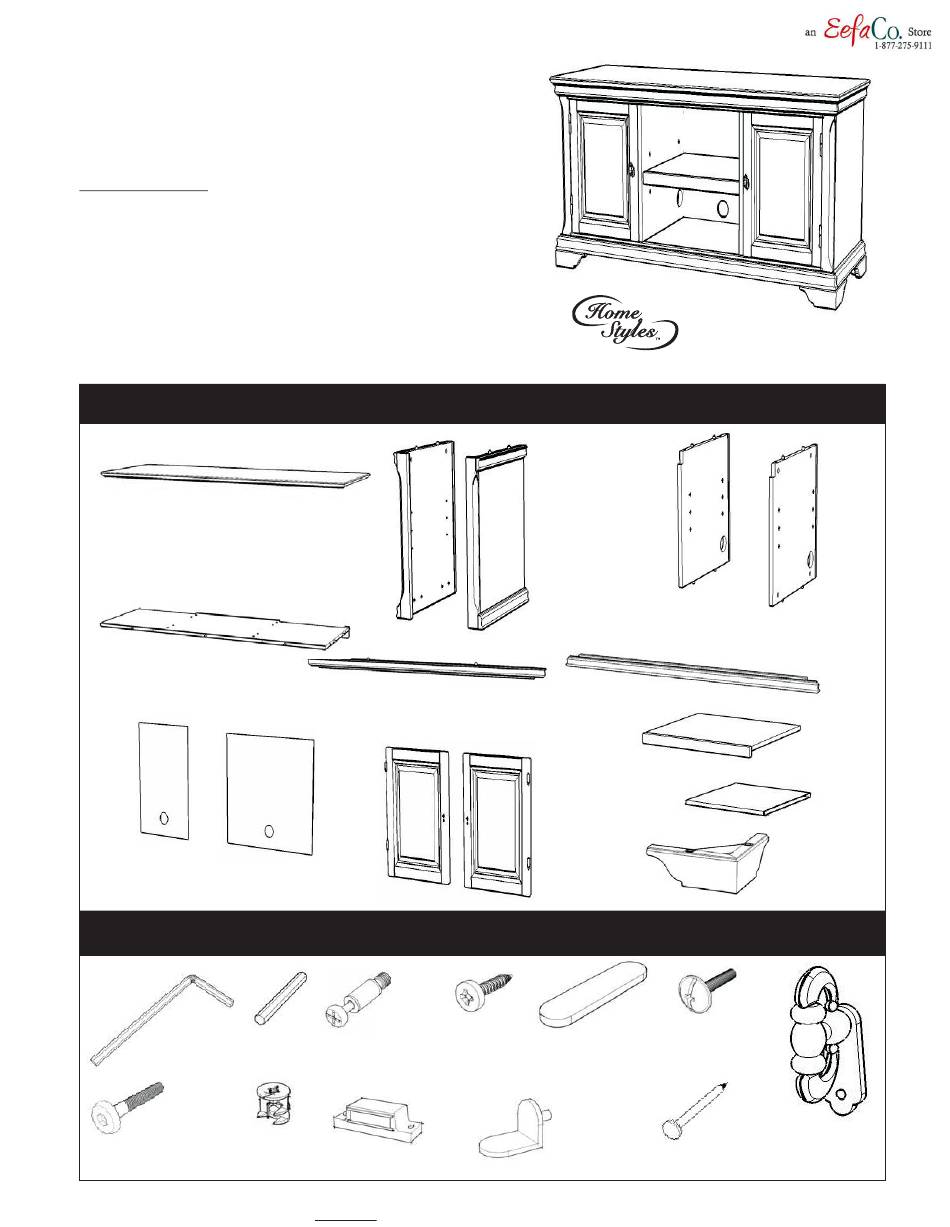

Part List
A.
Top
1 pc.
E.
Base
1 pc.
H.
I.
Back Panel
Back Panel
2 pcs.
1 pc.
Hardware List
Hex Wrench
Small
1 pc.
Hex Wrench
1 pc.
Head Cap Bolt
Cam Lock
8 pcs. (+1extra)
22 pcs.(+1 extra)
Tools required for assembly : Phillips screwdriver
B.
Side Panel
1 pc
.
F.
Front Rail
1 pc.
J.
Door
1 pc.
Cam Lock Screw
Wood Screw
22 pcs.(+1 extra)
for Magnet
4 pcs.(+1 extra)
Magnet
2 pcs.
Casual Attire For Today's Home
C.
Side Panel
1 pc.
Middle Panel
1 pc
G.
Plinth
1 pc.
K.
Door
1 pc.
Steel Plate
Machine Screw
2 pcs.
for Pull Handle
Attachment
1 pc.
Adjustable Pin
Nail
12 pcs.(+1 extra)
2 pcs.(+1 extra)
D1.
D2.
Middle Panel
.
1 pc
.
L.
Shelf
1 pc.
M.
Shelf
2 pcs.
N.
Leg
4 pcs.
Pull Handle
2 pcs.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Styles Lafayette 88553709
Summary of Contents for Home Styles Lafayette 88553709
- Page 1 88 5537 09 The Lafayette Entertainment Stand IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a Casual Attire For Today's Home...
- Page 2 Assembly Instructions 2/5 IMPORTANT Do not tighten up all the screws until each part is properly Magnet assembled. You should keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. STEP 1 Attach 2X Magnets to Front Rail (F) by using Wood Screws (see Figure 1).
- Page 3 Assembly Instructions 3/4 Figure 2 Cam Lock STEP 2 Cam Lock Screw Attach Middle Panel (D1) and (D2) onto Base (E) with Cam Locks (see Figure 2). Cam Lock Screw Cam Lock Head Cap Bolt STEP 3 Attach Plinth (G) to the unit with Cam Locks, then attach Side Panel (B) and (C) to the unit with Cam Locks.
- Page 4 Assembly Instructions 4/4 Nail Steel Plate Figure 4 Figure 5 STEP 4 Slide Back Panels (H) and (I) into place. Assemble Pull Handles to Doors (J) and (K) with Machine Screws. Use the Steel Plate to firmly push the nail through the hole in the Pull Handle and into the pre-drilled hole in the door (see Figure 4).
