88 5537 101
The Lafayette
Entertainment Credenza
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damages occuring to the wood parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.

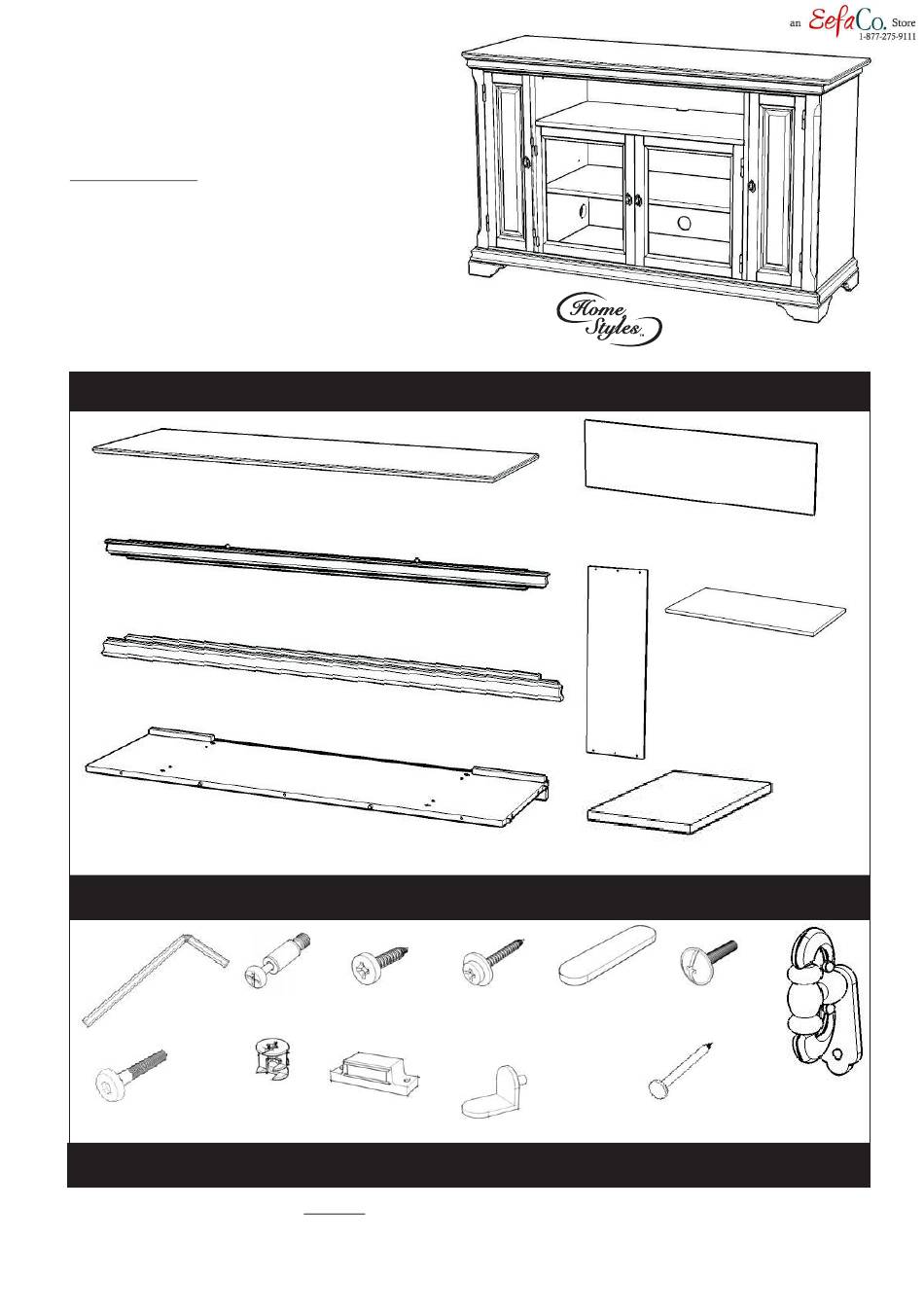

Part List
A.
Top
1 pc.
T.
Front Rail
1 pc.
H.
Plinth
1 pc.
I.
Base
1 pc.
Hardware List
Cam Lock Screw
Hex Wrench
1 pc.
26 pcs.(+1 extra)
Head Cap Bolt
8 pcs. (+1extra)
For assembly see instructions in carton 88 5537 102
Tools required for assembly : Phillips screwdriver
Wood Screw
for Magnet
8 pcs.(+1 extra)
Cam Lock
Magnet
26 pcs.(+1 extra)
4 pcs.
Casual Attire For Today's Home
J.
Back Panel
1 pc.
Wood Screw
Steel Plate
for Pull Handle
for Back Panel
12 pcs.(+1 extra)
Attachment
1 pc.
Adjustable Pin
20 pcs.(+1 extra)
L.
Shelf
1 pc.
K.
Back Panel
2 pcs.
M.
Shelf
4 pcs.
Machine Screw
4 pcs.
Nail
Pull Handle
4 pcs.(+1 extra)
4 pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Lafayette 88 5537 101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Styles Lafayette 88 5537 101

  • Page 1 88 5537 101 The Lafayette Entertainment Credenza IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
  • Page 2: Important Note

    88 5537 102 The Lafayette Entertainment Credenza IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
  • Page 3 Assembly Instructions 2/4 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in a safe place as you Magnet Cam Lock may need to tighten up the Cam Lock Screw Head Cap Bolts in the future.
  • Page 4 Assembly Instructions 3/4 Head Cap Bolt STEP 4 Attach Base (I) to the unit with Cam Locks. Attach Side Panel (B) and (C), Plinth (H) Head Cap Bolt to the unit with Cam Locks. Attach Legs (R) to the unit with Head Cap Bolts (see Figure 3).
  • Page 5 Assembly Instructions 4/4 Nail Figure 5 Steel Plate Figure 6 STEP 6 Assemble Pull Handles to Doors with Machine Screws. Use the Steel Plate to firmly push the nail through the hole in the Pull Handle and into the pre-drilled hole in the door (see Figure 5). Attach Doors (N), (O), (P) and (Q) by sliding the door lift hinges into the side panels lift hinges (see Figure 6).
