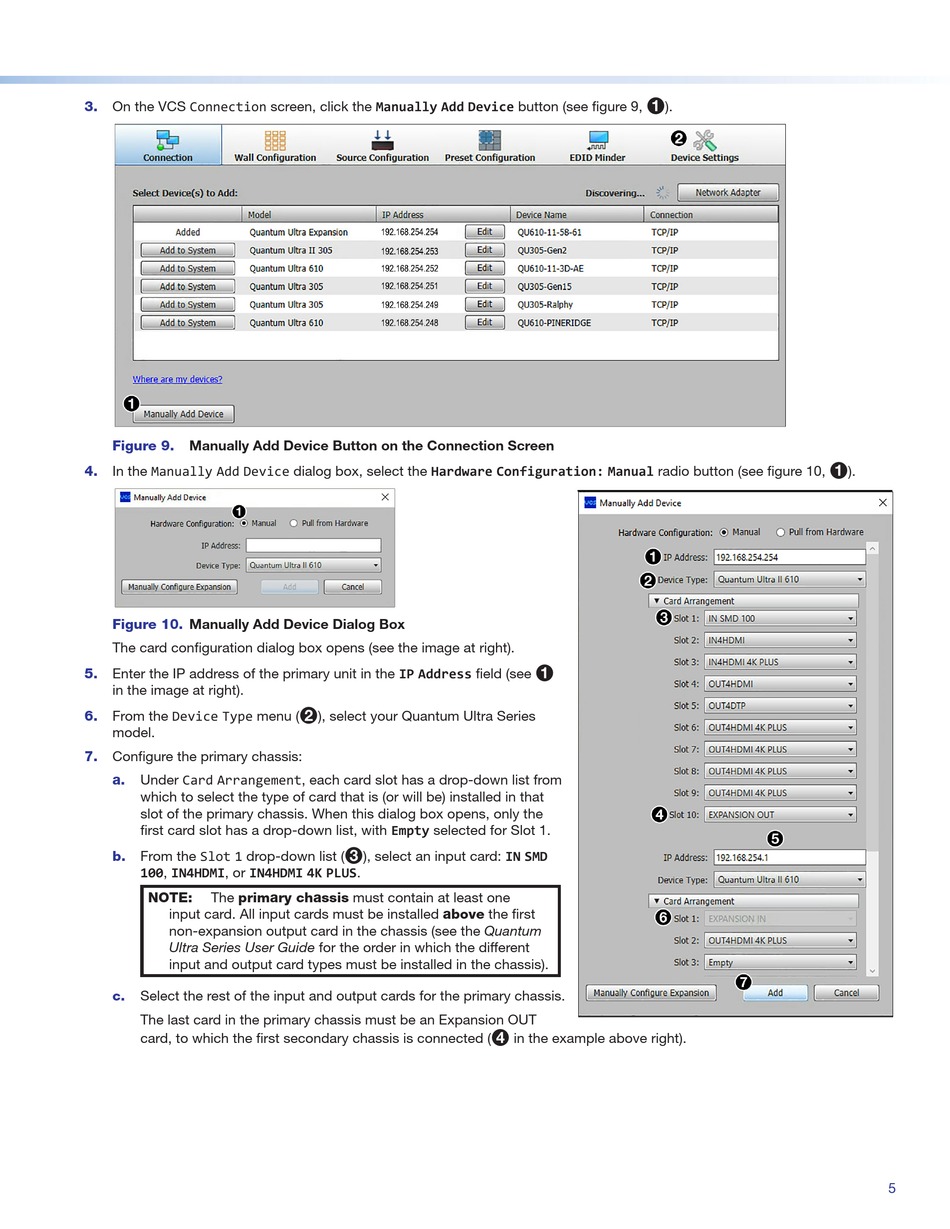

Extron electronics Quantum Ultra Expansion System Setup Manual page 5

On the VCS Connection screen, click the Manually Add Device button (see figure 9,
3.
Manually Add Device Button on the Connection Screen
Figure 9.
4. In the Manually Add Device dialog box, select the Hardware Configuration: Manual radio button (see figure 10,
Manually Add Device Dialog Box
Figure 10.
The card configuration dialog box opens (see the image at right).
5. Enter the IP address of the primary unit in the IP Address field (see
in the image at right).
From the Device Type menu (
6.
model.
7. Configure the primary chassis:
Under Card Arrangement, each card slot has a drop-down list from
a.
which to select the type of card that is (or will be) installed in that
slot of the primary chassis. When this dialog box opens, only the
first card slot has a drop-down list, with Empty selected for Slot 1.
b. From the Slot 1 drop-down list (
100, IN4HDMI, or IN4HDMI 4K PLUS.
NOTE: The primary chassis must contain at least one
input card. All input cards must be installed above the first
non-expansion output card in the chassis (see the Quantum
Ultra Series User Guide for the order in which the different
input and output card types must be installed in the chassis).
c. Select the rest of the input and output cards for the primary chassis.
The last card in the primary chassis must be an Expansion OUT
card, to which the first secondary chassis is connected (
2 ), select your Quantum Ultra Series
3 ), select an input card: IN SMD
1
).
1
4
in the example above right).
Product Category
1 ).
5
