Step 3 Execute the Validate Mac
The Validate MAC window should now be displayed.
1. Click on the Execute Nonce button.
2. Click on the Execute MAC button.
3. Click on the Execute CheckMac button.
The CheckMac Result line should indicate Matched. See

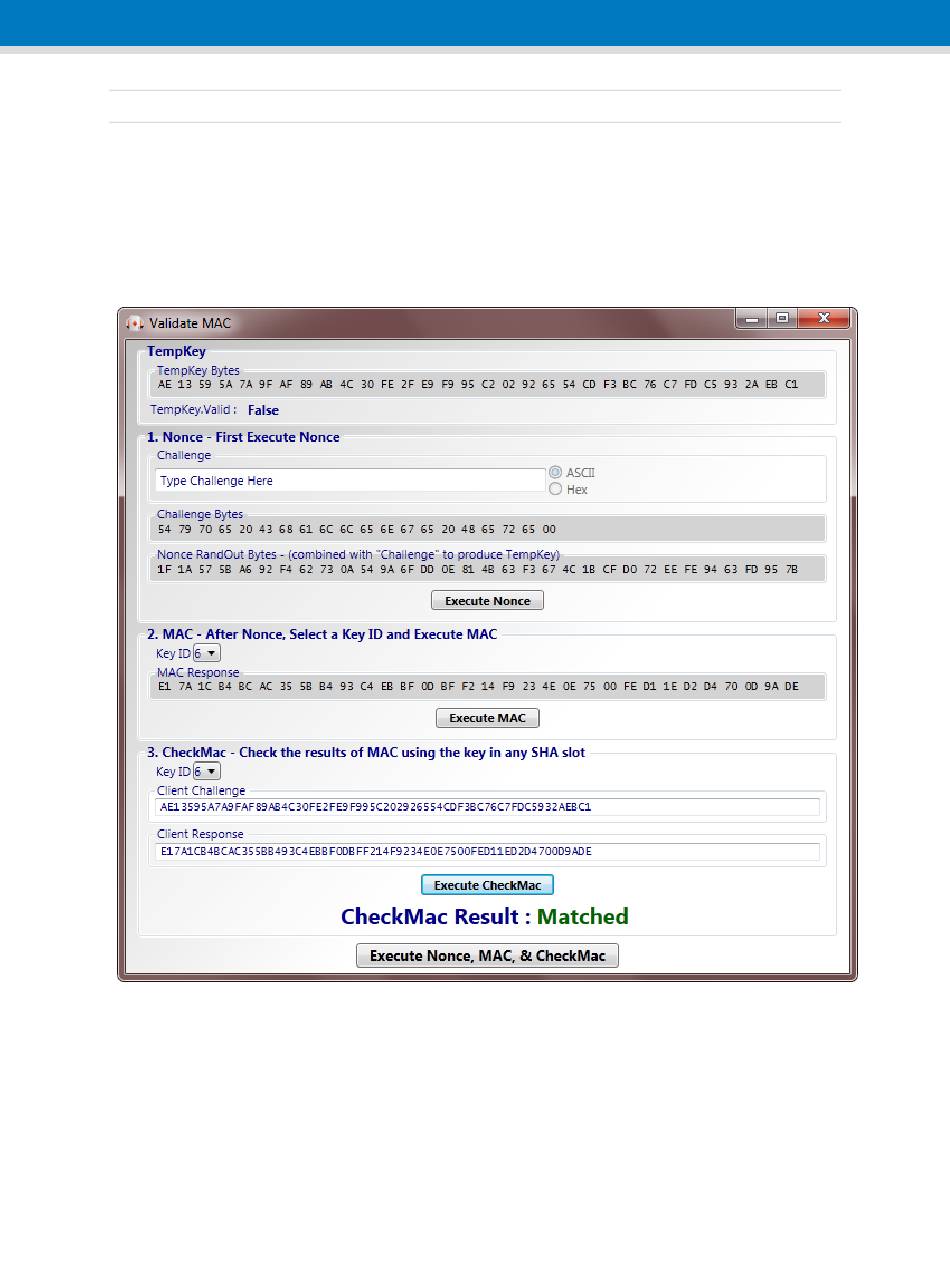

Figure 6. Validate MAC Pane
Congratulations, the Atmel USB Dongle Demonstration-Evaluation Kit is up and running. See ACES
online help for additional information. Additional samples can be found at:
http://www.atmel.com/forms/Samples.asp?family_id=699
CryptoAuthentication USB Dongle Demo-Evaluation Kits [HARDWARE USER GUIDE]
10
1
Atmel-8945A-CryptoAuth-USB-Dongle-Demo-Eval-Kits-Hardware-UserGuide_052015
0
Figure 6.
