2.2 Installing the Front Fender
1. Locate the long bolt, washer, and nut which will either be in the parts bag/
box or inserted in the top of the fork.
2. Slide the fender in place from the back of the fork. Insert the long bolt
through the top/center fork hole from the front of the bike. At the rear of the
fork hole, place the bolt through the fender mounting tab with the washer
and nut. While pushing the fender tab up as far as it will go, tighten the bolt
and nut to secure the fender to the top of the fork (Fig. 10).
3. Position the fender braces to the mounting holes on the fork dropouts. It's
okay to squeeze inward as these braces are designed to be pliable. Partially
thread the screw through the fender brace end hole and into the dropout—
repeat for the other side. When both braces are partially attached, tighten
the brace screws to complete the install (Fig. 11).
4.
If the fender is not straight, or rubbing the tire, that's okay! As mentioned
above, the fender braces can be bent to center the fender. Gently adjust the
fender by hand until it's straight.
NOTE: Rear Fender Adjustment: The rear fender is installed at the factory and
should be good-to-go. However, it may require some small adjustment due
to shipping. Follow 2.2 step 4 to straighten as necessary or a combination of
loosening the brace end bolts, retightening, and centering.
Release lever. Turn the nut by hand to adjust the tension while holding the
lever stable.

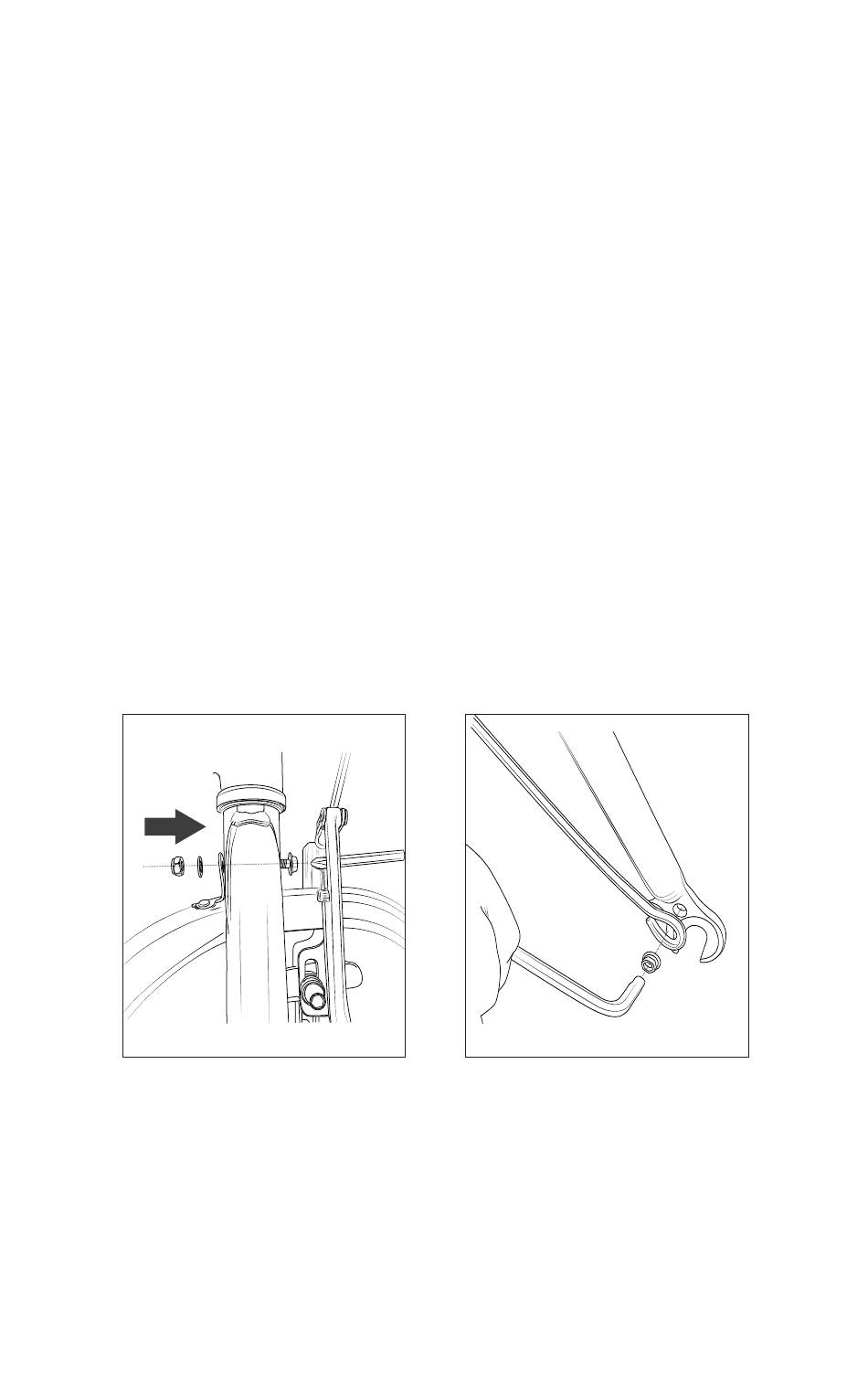

Fig. 10 Fig. 11
