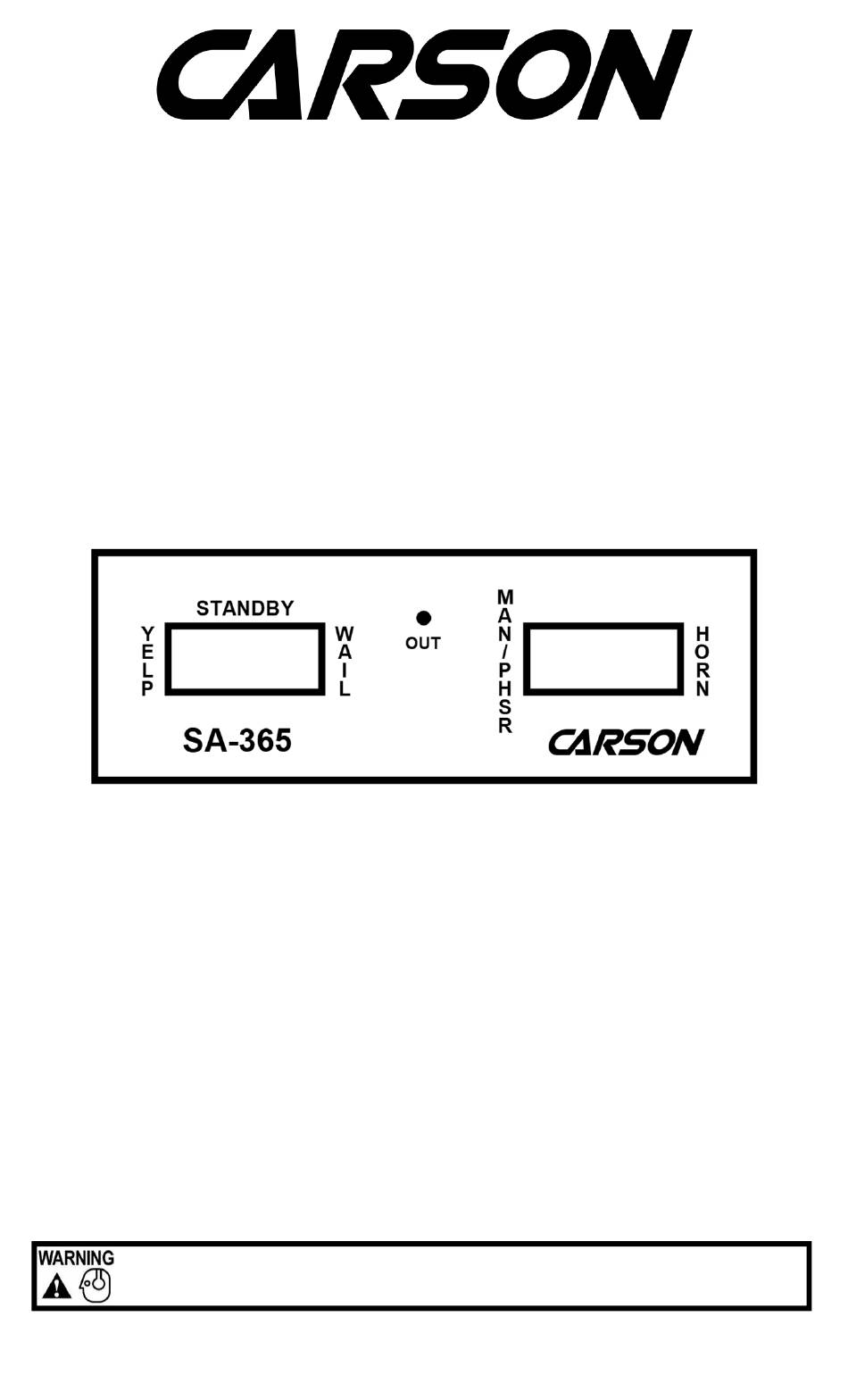

SA-365-20

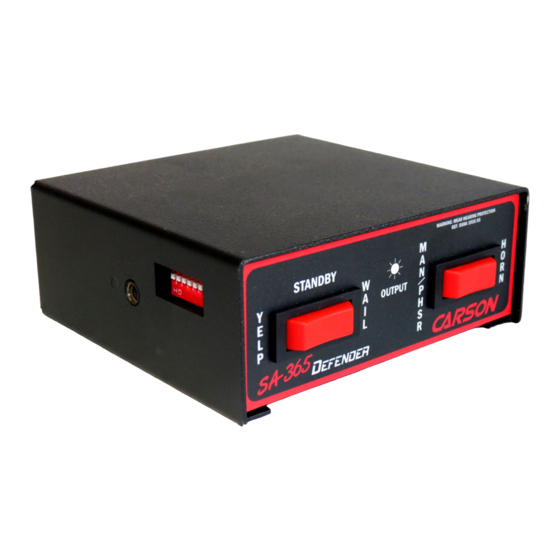

SIREN AMPLIFIER
INSTALLATION AND OPERATING
INSTRUCTIONS
Carson is a trademark of Carson Manufacturing Company, Inc.
Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage.
Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
(Ref. OSHA 1910.95 for occupational noise exposure guidelines)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Carson SA-365-20
Summary of Contents for Carson SA-365-20
- Page 1 INSTALLATION AND OPERATING INSTRUCTIONS Carson is a trademark of Carson Manufacturing Company, Inc. Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity.
- Page 2 Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 SA-365-20 Installation Instructions Page 3 of 8 SPECIFICATIONS Speaker Load Single 100W 11ohm Input Voltage 10 - 16 VDC (negative ground) Input Current 8 AMPS (@14 VDC - single 100W speaker) Standby Current Less than 5mA Output Power 105 WATTS RMS MAX. (15 VDC - single 100W speaker) Siren Frequency 700Hz - 1500Hz (Two-Tone and Horn = 435 &...
- Page 4 Page 4 of 8 SA-365-20 Installation Instructions OPTION SWITCHES An 8-position DIP switch on the remote amplifier may be changed to select various options. Adjusting Option Switches - use a small screwdriver to change switch settings. SW-1 Auxiliary Input Polarity - The auxiliary input is normally activated with positive. Turn switch OFF for negative activation.
- Page 5 SA-365-20 Installation Instructions Page 5 of 8 See OPTION SWITCHES section for polarity selection. NOTE: Permanent disconnection of the vehicle horn is NOT recommended. The auxiliary input may be activated with positive or negative voltage. See Auxiliary Polarity under OPTION SWITCHES section for proper activation polarity. Input current is 1 to 20 mA.
- Page 6 Page 6 of 8 SA-365-20 Installation Instructions OPERATION Sound Hazard - Sound level from siren speaker (>120dBA @ 10 feet) may cause hearing damage. Do not operate siren without adequate hearing protection for you and anyone in immediate vicinity. (Ref. OSHA 1910.95 for occupational noise exposure guidelines)
- Page 7 CP4688-06 * Connector, 6-pin Terminal Block Plug CP5166 * Instruction Manual The following parts and accessories are available from Carson Manufacturing Company, Inc.: See www.carsonsirens.com for additional information or contact our Service Department at: E-mail service@carsonsirens.com or Phone (888) 577-6877...
- Page 8 If a product must be returned for any reason, please contact our Technical Service Department to obtain a Returned Merchandise Authorization num- ber (RMA#) before you ship the product to Carson. Please write the RMA# clearly on the package near the mailing label. Be sure to provide a return address, contact and phone number, along with a brief description of the problem.
