- Page 1 Carson MANUFACTURING COMPANY, INC. SA-441 DUAL REMOTE SIREN AMPLIFIER RADIO RADIO DUAL DUAL SIREN SIREN V V OL OL HRN/TT HRN/TT Carson Carson WAIL WAIL YELP YELP POWER POWER PHASR/W- - Y Y PHASR/W SA SA- - 441 INSTALLATION AND OPERATING INSTRUCTIONS 5451 N.
-
Page 2: Table Of Contents
Page 2 SA-441 Installation and Operating Instructions TABLE OF CONTENTS TABLE OF CONTENTS ......................2 SPECIFICATIONS ........................3 NOTICE............................ 3 GENERAL DESCRIPTION....................... 4 INSTALLATION........................5 SAFETY PRECAUTIONS ..................... 5 UNPACKING ........................5 OPTION SWITCHES ......................6 MOUNTING – Control Head ....................6 ELECTRICAL CONNECTIONS –... -
Page 3: Specifications
Carson Manufacturing Co., Inc. makes no warranty of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 4: General Description

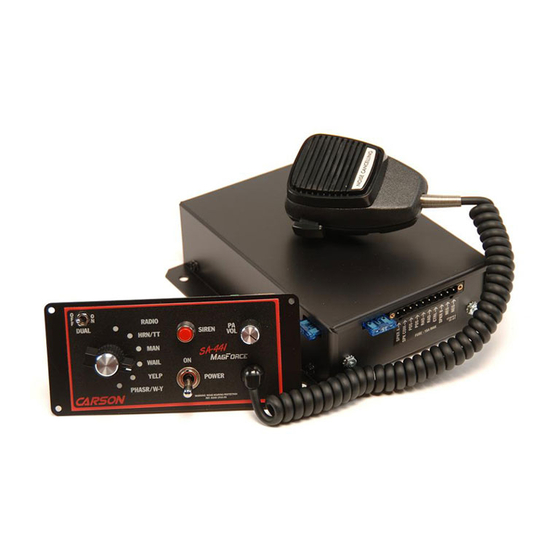

SA-441 Installation and Operating Instructions GENERAL DESCRIPTION The SA-441 Dual Siren Amplifier is a premium unit designed for dual 100W speaker use from a 12 volt DC power source (negative ground). The control head is only 1 inch deep and can be installed in minimum clearance areas. -
Page 5: Installation
SA-441 Installation and Operating Instructions Page 5 INSTALLATION Proper installation of the unit is essential for years of safe, reliable operation. Please read all instruction before installing the unit. Failure to follow these instructions can cause serious damage to the unit or vehicle and may void warranties. -
Page 6: Option Switches
Page 6 SA-441 Installation and Operating Instructions OPTION SWITCHES Various options can be controlled by turning on or off any of 8 DIP switches exposed in the amplifier. Switch 1 On: Two-Tone - Two-Tone replaces Phaser function. Switch 2 On: Dual Phaser Disable –... - Page 7 SA-441 Installation and Operating Instructions Page 7 Yellow: Lights - This lead may be connected to the dash lights or to the red power lead. Connecting to the dash lights will turn on the panel lights whenever the dash lights are on.
-
Page 8: Mounting - Amplifier
Page 8 SA-441 Installation and Operating Instructions MOUNTING – Amplifier Select a location for the amplifier in an area such as the driver compartment firewall, under a seat, etc. Mounting the amplifier in the engine compartment or in an area directly exposed to weather is not recommended. -
Page 9: Siren Testing
SA-441 Installation and Operating Instructions Page 9 SIREN TESTING Before re-connecting the battery in the vehicle make sure that the siren is turned off. Observe polarity when re-connecting. Caution: Hearing protection should always be used when testing any siren, especially indoors. -
Page 10: Operation
Page 10 SA-441 Installation and Operating Instructions OPERATION GENERAL This unit is designed for easy operation under the stress associated with high-speed pursuit. Most siren functions are accessible with one simple motion without repetitive activation of switches or automatic timed switching that can interfere with desired operation. -
Page 11: Microphone (Pa Override)
SA-441 Installation and Operating Instructions Page 11 MICROPHONE (PA Override) The attached noise-canceling microphone is used for public address operation and overrides any function when the button on the side is pressed. PA VOL This control adjusts the PA volume. With the vehicle parked, set the PA volume to the maximum level with no feedback (squeal). -
Page 12: Service
Page 12 SA-441 Installation and Operating Instructions SERVICE This unit is designed to provide years of reliable service under even the worst conditions. Many times there may appear to be a problem with the unit when the true problem is in the speaker(s) or improper installation. -
Page 13: Parts
Department to obtain a Returned Merchandise Authorization number (RMA#) before you ship the product to Carson. Please write the RMA# clearly on the package near the mailing label. Be sure to provide a return address, contact and phone number, along with a brief description of the problem. -
Page 14: Limited Warranty
During this warranty period the obligation of Carson Manufacturing is limited to repairing or replacing, as Carson Manufacturing may elect, any part or parts of such product which after examination by Carson Manufacturing is determined to be defective in material and/or workmanship. -
Page 15: Control Head Installation Template
SA-441 Installation and Operating Instructions Page 15 CONTROL HEAD INSTALLATION TEMPLATE 11/6/01 CP4816A...
