Summary of Contents for Spudnik 2350

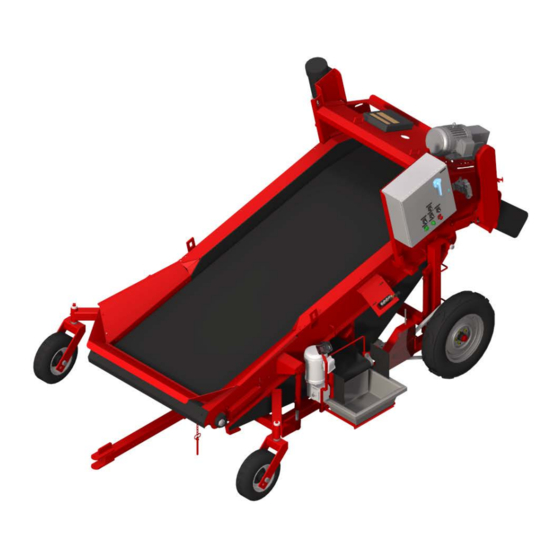

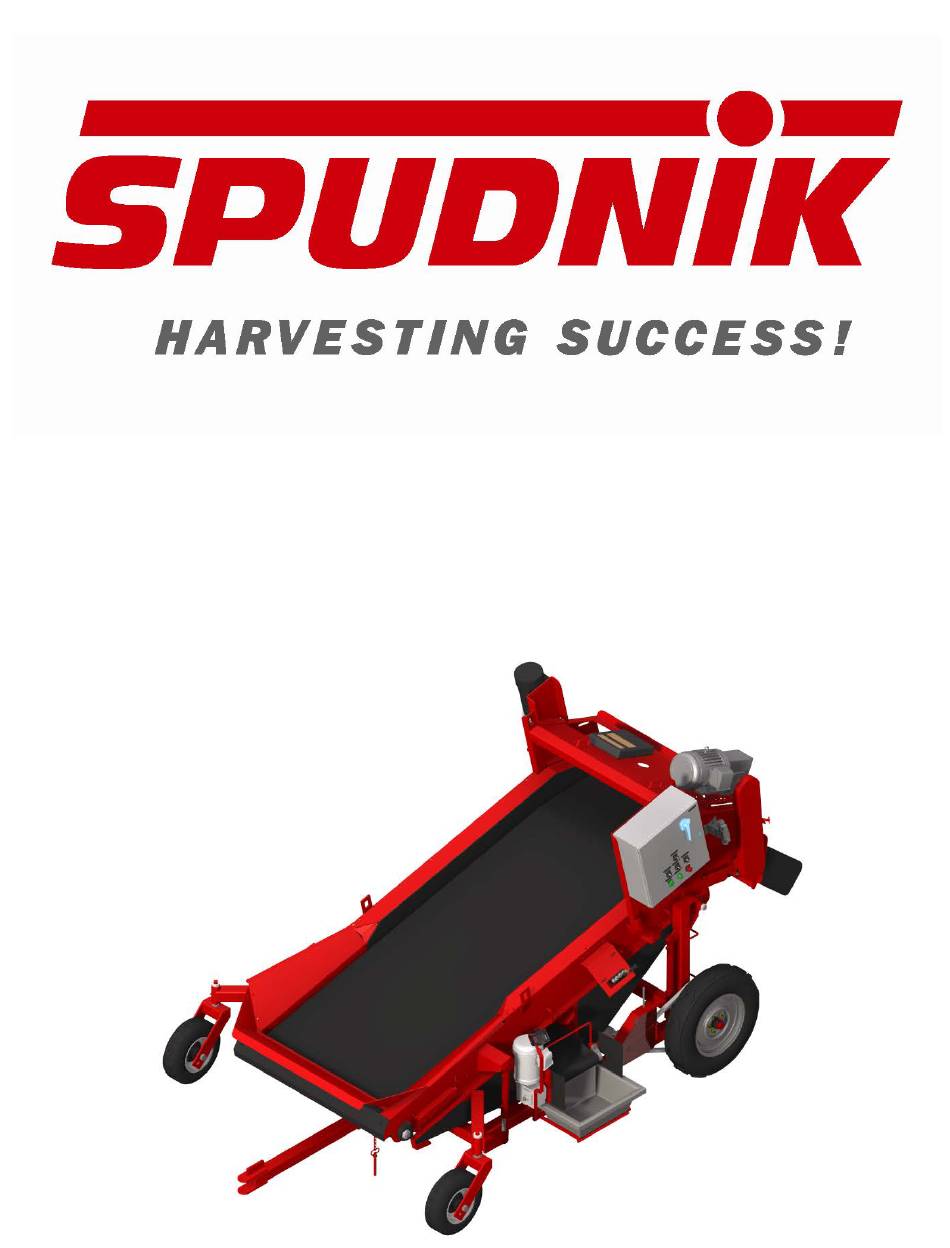

- Page 1 OPERATORS/ PARTS MANUAL MODEL 2350 PORTABLE SAMPLE TAKER PUP CONVEYOR Part # 290209...
- Page 2 Operators manual MODEL 2350 Sample Taker Operating Manual Overview The purpose of this Spudnik Operating Manual is to make the user familiar with this machine and to assure the machine is used for what it has been designed to do.
- Page 3 Operators manual MODEL 2350 Sample Taker Mission Statement Our mission is to consistently provide high quality, reliable, safe and well-designed products and services to meet and exceed the needs of our customers. Service Centers Phone: (208) 785-0480 E-Mail: spudnik@spudnik.com Web Site: www.spudnik.com...
-
Page 4: Table Of Contents
Operators manual MODEL 2350 Sample Taker Table of Contents Description Page # Introduction ……………………………………………………………………………………………….. Forward to Operating Manual …………………………………………………………………………... Warranty …………………………………………………………………………………………………… 5 Product Characteristics …………………………………………………………………………………… 6 Dangers, operating errors and exemption from liability .…………………………………….………… 7 Safety ….…………………………………………………………………………………………….……… 8 General safety and accident prevention regulations …………………………….……………………. 9 Special safety instructions .…………………………………………………………………………….…... -
Page 5: Introduction
Operators manual MODEL 2350 Sample Taker Notes !! Page 4... -
Page 6: Forward To Operating Manual
Operators manual MODEL 2350 Sample Taker Foreword to the Operating Manual This operating manual is intended to familiarize the user with the 2350 Sample Taker Pup and its designated use. This operating manual contains important information on how to operate the machine safely, properly and efficiently. -
Page 7: Warranty
30 days of noticing the defect and (d) make the product available to the dealer or service center within a reasonable period of time, transportation charges prepaid. The selling dealer has no authority to make any representation or promise on behalf of Spudnik, or to modify the terms or limitations of this warranty in any way. -
Page 8: Product Characteristics
Operators manual MODEL 2350 Sample Taker Product Characteristics Manufacturer's address SPUDNIK EQUIPMENT COMPANY LLC 584 W 100 N PO Box 1045 Blackfoot, ID 83221 Phone: (208) 785-0480 Fax: (208) 785-1497 www.spudnik.com E-mail: spudnik@spudnik.com Advice concerning inquiries and orders Please quote the type designation and the machine number when ordering accessories and spare parts. -
Page 9: Dangers, Operating Errors And Exemption From Liability
The results produced by the machine must be constantly monitored and checked. SPUDNIK shall not be liable for any damage to agricultural produce and other items which occurs as a result of operating and adjustment errors or other incorrect usage. -
Page 10: Safety
•The use of spare parts, accessories and auxiliary equipment not supplied and/or not approved by SPUDNIK can have detrimental effect on the construction of the SPUDNIK machine or on its functions and hence impair the active and./or passive driven an/or operational safety (accident prevention). -
Page 11: General Safety And Accident Prevention Regulations
Operators manual MODEL 2350 Sample Taker General safety and accident prevention regulations The safety advice and information given in this operating manual, the valid national regulations concerning accident prevention and any applicable internal employment, operational and safety regulations of the operator are to be observed. -
Page 12: Special Safety Instructions
Operators manual MODEL 2350 Sample Taker Special safety instructions Electrical system, electronics Use only original fuses with the specified current rating! Switch off the machine immediately if a fault occurs in the electrical power supply. Work on the electrical system or equipment may only be carried out by an electrician, or by specially instructed personnel under the control and supervision of an electrician, and in accordance with the applicable electrical engineering regulations. -
Page 13: Hydraulic System
Operators manual MODEL 2350 Sample Taker Special safety instructions Hydraulic system The hydraulic system is under high pressure! Make sure that the hydraulic system is depressurized (tractor and machine) when connecting the hydraulic hoses to the tractor’s hydraulic system. Hydraulic hose lines should be inspected at regular intervals and replaced if damaged or worn! New hose lines must comply with the technical specification of the machine manufacturer! Hoses and hose couplings undergo a natural ageing process, even if stored and used correctly;... -
Page 14: Safety Check Instructions
Operators manual MODEL 2350 Sample Taker Safety check instructions 1. Make sure main disconnect and All switches are “OFF” 2. Look at the voltage label on the control panel. Make sure the voltage from the machine it is attached to, is the same as the Sample Taker voltage. -
Page 15: Warning Symbols And Other Instruction Notices On The Machine
Operators manual MODEL 2350 Sample Taker Warning symbols and other instruction notices on the machine SIGNAL WORDS: DANGER, WARNING, and CAUTION are signal words with messages: DANGER: An immediate and specific hazard, which WILL result in severe injury or death if proper precautions are not taken. -
Page 16: Configuration And Functions Of The Machine
Operators manual MODEL 2350 Sample Taker Configuration and Function of the Machine 1. Make sure that “Emergency Stop” button is pulled out. 2. Push the green push button switch, labeled “Belt”, to initiate belt drive. 3. Turning the switch labeled “Truck” to the “Hand” position and it will run regardless of the Sample Taker. -
Page 17: Maintenance
Operators manual MODEL 2350 Sample Taker Maintenance General safety instructions Regular maintenance is a prerequisite for operational reliability. The following safety advice is to be observed during any maintenance, cleaning or repair work. To prevent accidents, all relevant rules and regulations concerning safe and competent working must be observed! •Observe the adjustment, maintenance and inspection activities and intervals specified in this operating... - Page 18 Operators manual MODEL 2350 Sample Taker Maintenance •Clean the machine, especially connections and threaded unions of any traces of oil, fuel or preservatives before carrying out maintenance/repairs. Never use aggressive detergents. Use lint-free cleaning cloths. •Before cleaning the machine with water or steam jets (high-pressure cleaners) or other cleaning agents, cover or tape all openings which –...
-
Page 19: Special Safety Instructions
Operators manual MODEL 2350 Sample Taker Maintenance Special safety instructions Safety devices Never stand beneath suspended loads! Never stand or work beneath suspended loads! Engage safety catches! Never stand or work beneath suspended loads. Adjustment and maintenance work on these parts of the machine may only be carried out with the safety devices engaged. -
Page 20: Spare Parts Procurement
No liability can be taken for consequences resulting from the use of other parts. When replacing electrical or hydraulic parts, ensure that only original SPUDNIK spare parts are used. The use of non-SPUDNIK parts can cause malfunctioning of the machine. Type plate on machine Machine serial number The machine serial no. -
Page 21: Cleaning After
Operators manual MODEL 2350 Sample Taker Maintenance Repairs to the electrical system may only be carried out by authorized dealers. Exercise extreme care when working on engine or hydraulics – risk of serious burns! In order to keep wear down to a minimum, clean the machine thoroughly inside and outside. -
Page 22: Parts To Be Cleaned
Operators manual MODEL 2350 Sample Taker Maintenance Parts to be cleaned Cleaning with high-pressure cleaning equipment Clean the machine thoroughly, inside and outside. Dirt attracts moisture and leads to corrosion. The following advice should be adhered to when using high-pressure... -
Page 23: Storage
Make a note of all maintenance work to be carried out before the next season and arrange for this to be carried out in good time. Your SPUDNIK dealer is in a better position to perform maintenance work and any repairs that may be necessary outside the season. -
Page 24: Screwed Connections
Operators manual MODEL 2350 Sample Taker Maintenance Screwed connections Screwed connections in general Only carry out adjustments and maintenance work when the engine is switched off! Remove ignition key! Secure the machine against rolling away! The tightening torques given in the table below do NOT apply when a different torque is specified in this manual for a particular screwed connection. -
Page 25: Chassis
Operators manual MODEL 2350 Sample Taker Maintenance Chassis Any adjustments or repairs to the chassis which are not shown here may only be carried out by an authorized dealer. Non-compliance with this rule invalidated the warranty. The adjustments shown here may only be carried out when the engine is switched off! -
Page 26: Mechanical Drives
Operators manual MODEL 2350 Sample Taker Maintenance Mechanical drives Gearboxes Only carry out adjustments and maintenance work when the engine is switched off! Remove ignition key! Secure the machine against rolling away! Mount all guards correctly after completing any adjustments. -
Page 27: Chain Drives
Operators manual MODEL 2350 Sample Taker Maintenance Chain drives Gearboxes Only carry out adjustments and maintenance work when the engine is switched off! Remove ignition key! Secure the machine against rolling away! Mount all guards correctly after completing any adjustments. -
Page 28: Belt Drives
Operators manual MODEL 2350 Sample Taker Maintenance Belt drives Only carry out adjustments and maintenance work when the engine is switched off! Remove ignition key! Secure the machine against rolling away! Mount all guards correctly after completing any adjustments. Periodic maintenance: •... -
Page 29: Lubrication
Operators manual MODEL 2350 Sample Taker Maintenance Lubrication Only carry out adjustments and maintenance work when the engine is switched off! Remove ignition key! Secure the machine against rolling away! Mount all guards correctly after completing any adjustments. Only use a good quality brand-name grease, e.g. Shell Retinaz A EP2 multipurpose grease. -
Page 30: Hydraulic System
Changing the filter: -Cleanliness is important when changing a filter. -Insert the new filter immediately after removing the old one. -Release filter, unscrew and replace with an original SPUDNIK filter. Insert the new filter as follows: -Moisten the sealing face with oil. -
Page 31: Electrical System
Operators manual MODEL 2350 Sample Taker Maintenance Hydraulic system Periodic maintenance: -Visual inspection for leads. -Check level Maintenance at the end of the harvesting season: -Change oil as instructed Changing the oil and checking the level: Clean the area around the filling nozzle thoroughly before filling the system with new oil. -
Page 32: Braking System
Operators manual MODEL 2350 Sample Taker Maintenance Braking system Never overload axles, brakes or chassis. Any adjustments and repairs to the axles which are not shown here may only be carried out by an authorized dealer. Non-compliance with this rule invalidates the guarantee. - Page 33 Notes !!
-
Page 34: Machine Parts Breakdown
Operators manual MODEL 2350 Sample Taker Machine Parts Breakdown Description Page # SAFTEY LABELS ……………....……………………………………………………………….. BELTS AND HYDRAULIC LIFTS ..…………………………………………………………………... HOPPER ASSEMBLY ..........……………………………………………….. DOOR ASSEMBLY …....…………………………………………..…………………. MINI CONVEYOR ASSEMBLY …......…………………………………………………… CRAZY WHEEL ASSEMBLY ........………………………………………………….. WHEEL ASSEMBLY …............…………………………………………… HYDRAULIC SCHEMATICS ...................... - Page 35 Operators manual MODEL 2350 Sample Taker 2350 SAFTEY LABELS Page 34...
-
Page 36: Belts And Hydraulic Lifts
Operators manual MODEL 2350 Sample Taker BELTS AND HYDRAULIC LIFTS DETAIL A DETAIL B Page 35... - Page 37 Operators manual MODEL 2350 Sample Taker BELTS AND HYDRAULIC LIFTS ITEM # DESCRIPTION PART # CORD HOLDER, SAMPLE TAKER, BOLT ON, 2350 195607 CORD HOLDER,BOLT PLATE,SAMPLE TAKER,2350 174628 CORD HOLDER,RH, MDL 2350 SAMPLE TAKER 174632 CYL,1.50"x12",WELD,22.25",SAE 6,REPHASE 602989 CYL,1.50"x8",WELD,20.25",SAE 6,REPHASE...
-
Page 38: Hopper Assembly
Operators manual MODEL 2350 Sample Taker HOPPER ASSEMBY 18 18 Page 37... - Page 39 QTY (42" EFF) DESCRIPTION PART # BELT,FLAT,16"x33-1/4",SAMPLE TAKER SHLD 261968 BRNG,PB,1-7/16"BORE,TTB,1/7/16,FAFNIR 231241 COLLAR,SHAFT,SET,SCREW,1-7/16" 501951 COVER, BLTD, CHN, 66", LH INSIDE, 2350 195612 COVER, BLTD,CHN, 66",RH INSIDE, 2350 195613 HOPPER,LH,BOLT ON, SAMPLE TAKER, 2350 174623 HOPPER,RH,BOLT ON, SAMPLE TAKER, 2350 174622 RLR,BLTD,CHN,1-7/16"x5"FLNG/GRVD SETSCRW 352698 RLR,BLTD,CHN,1/2"x4"...
-
Page 40: Door Assembly
Operators manual MODEL 2350 Sample Taker DOOR ASSEMBLY DETAIL OF DOOR DETAIL A Page 39... - Page 41 Operators manual MODEL 2350 Sample Taker DOOR ASSEMBLY ITEM # DESCRIPTION PART # BOLT&NUT,FLTHD,SCKT,BLTD CHN 10-24x1-1/4 351257 BUSHING,TENSION 1"ID x 1/8"WALL x 3/4"L 231152 BUSHING,TENSION,1/2"ID,1/8"WALL,1/2"LONG 231397 BUSHING,TENSION,3/4"ID,1/8"WALL,1/2"LONG 231161 CYL,1.00"x8",TIE ROD,20.25",1.125",3/4 602928 DOOR,SLIDING,GUIDE, MDL 2350, 2010 174620 RLR,BC,PU,5/8X3.5X2.625X5FL,SC GROVD 351267 RLR,BLTD,CHN,1/2"x4"...
-
Page 42: Mini Conveyor Assembly
Operators manual MODEL 2350 Sample Taker MINI CONVEYOR ASSEMBLY MINI CONVEYOR COMPLETE PART # DESCRIPTION SAMPLE TAKER WIDTH 133169 2350 SAMPLE TAKER PUP MINI CONV 42" 42" EFFECTIVE 133398 36" SAMPLE TAKER MINI CONV 30" EFFECTIVE Page 41... - Page 43 Operators manual MODEL 2350 Sample Taker MINI CONVEYOR ASSEMBLY ITEM # DESCRIPTION PART # BRNG,PB,1" BORE SAS 231061 DIRT SHEAR,MINI CONVEYOR,BRACKET,2350 174629 GRBX,SHFT,MNT,30:1 RT ANGL SMPL TKR DOOR 571107 PLATFORM,SAMPLE,MINI CONV,2350,2010 195620 RLR,CRWND,2.5ODx15.5"L SMPL TKR MINI CNV 781240 RLR,LGD,2.5"ODx15.5"L SMPL TKR MINI-CONV...
-
Page 44: Crazy Wheel Assembly
Operators manual MODEL 2350 Sample Taker CRAZY WHEEL ASSEMBLY ITEM # DESCRIPTION PART # BOLT,HEX,1"-8UNC x 8" GR 5 **BLACK** 501198 BRACKET,CRZY,WHL,8" & 12" BARE 171124 HUB,ASSM,4-HOLE,8" & 12" CRAZY WHEEL 951270 NUT,LOCK,HEX,1"-8UNC NYLON INSERT 501713 SPACER,PIPE,1",LG.8"&12" CRAZY WHEEL 171856 SPACER,PIPE,1-1/4"... - Page 45 Operators manual MODEL 2350 Sample Taker CRAZY WHEEL ASSEMBLY Item # QTY DESCRIPTION PART #: BRNG,WHEEL,4 HOLE 2/HUB #44643 231000 HUB,ONLY,4 HOLE W/STUDS 951023 NUT,LUG,TAPERED, 1/2"-20UNF, RIGHT HAND 951116 SEAL,GREASE,4 HOLE,#34823 951026 Page 44...
-
Page 46: Wheel Assembly
Operators manual MODEL 2350 Sample Taker WHEEL ASSEMBLY Item # QTY DESCRIPTION PART #: BRNG,WHEEL,5 HOLE INNER #68149 231001 BRNG,WHEEL,5 HOLE OUTER #44649 231002 CAP,DUST,5 HOLE & 4 HOLE 951031 HUB,ONLY,5 HOLE W/STUDS 951055 NUT,LUG,TAPERED, 1/2"-20UNF, RIGHT HAND 951116 RACE,BEARING,4 HOLE & 5 HOLE OUTER... -
Page 47: Hydraulic Schematics
SPRCKT,H60A80x10" BORE WHEEL DRIVE 881060 SPRCKT,H60BS11x1" BORE 881033 TAKE UP BRACKET, WHEEL DRIVE, 2350 195610 TIRE,&,TUBE,760x150 V-GRIP 951009 WHEEL DRIVE SHIELD, MDL 2350 SAMPLE TAKER 174627 30" EFFECTIVE WIDTH FRAME,PORTABLE,SAMPLE TAKER,30"EFF,2350 198176 42" EFFECTIVE WIDTH FRAME,PORTABLE SAMPLE TAKER,42",MDL 2350 195595... - Page 49 Operators manual MODEL 2350 Sample Taker Page 48...
- Page 50 Operators manual MODEL 2350 Sample Taker Page 49...
- Page 51 Operators manual MODEL 2350 Sample Taker Page 50...
- Page 52 Operators manual MODEL 2350 Sample Taker Page 51...
- Page 53 Operators manual MODEL 2350 Sample Taker Page 52...
- Page 54 Operators manual MODEL 2350 Sample Taker Page 53...
- Page 55 Operators manual MODEL 2350 Sample Taker Page 54...
- Page 56 Operators manual MODEL 2350 Sample Taker Page 55...
- Page 61 ...
