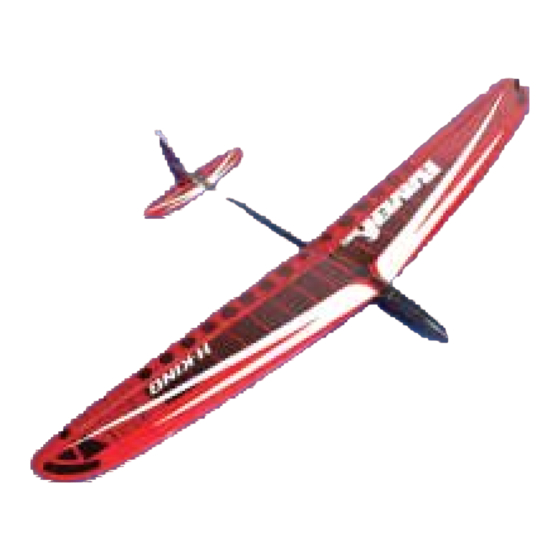

HobbyKing Raven 990 MINI DLG 2017 Assembly Manual

M I N I D L G 2 0 1 7
SPECIFICATIONS:
ca. 990 mm ca. 730 mm
FEATURES:
Construction : Fuselage pod is made of light weight plastic features with carbon fiber boom attached and
ultra light weight balsa tail and wing with carbon fiber reinforced
Wing : One-piece bolt-on balsa wood sheeted reinforced with carbon fiber, full span ailerons with strategic
lightening holes and carbon throwing peg
Empennage : Full balsa sheet with carbon fiber reinforcement and strategic lightening holes
Aileron Control : Dual servo
Elevator Control : By using a single pulling cable to control the elevator with a spring mechanism design
Building Time : Ready for launch in only 30 mins

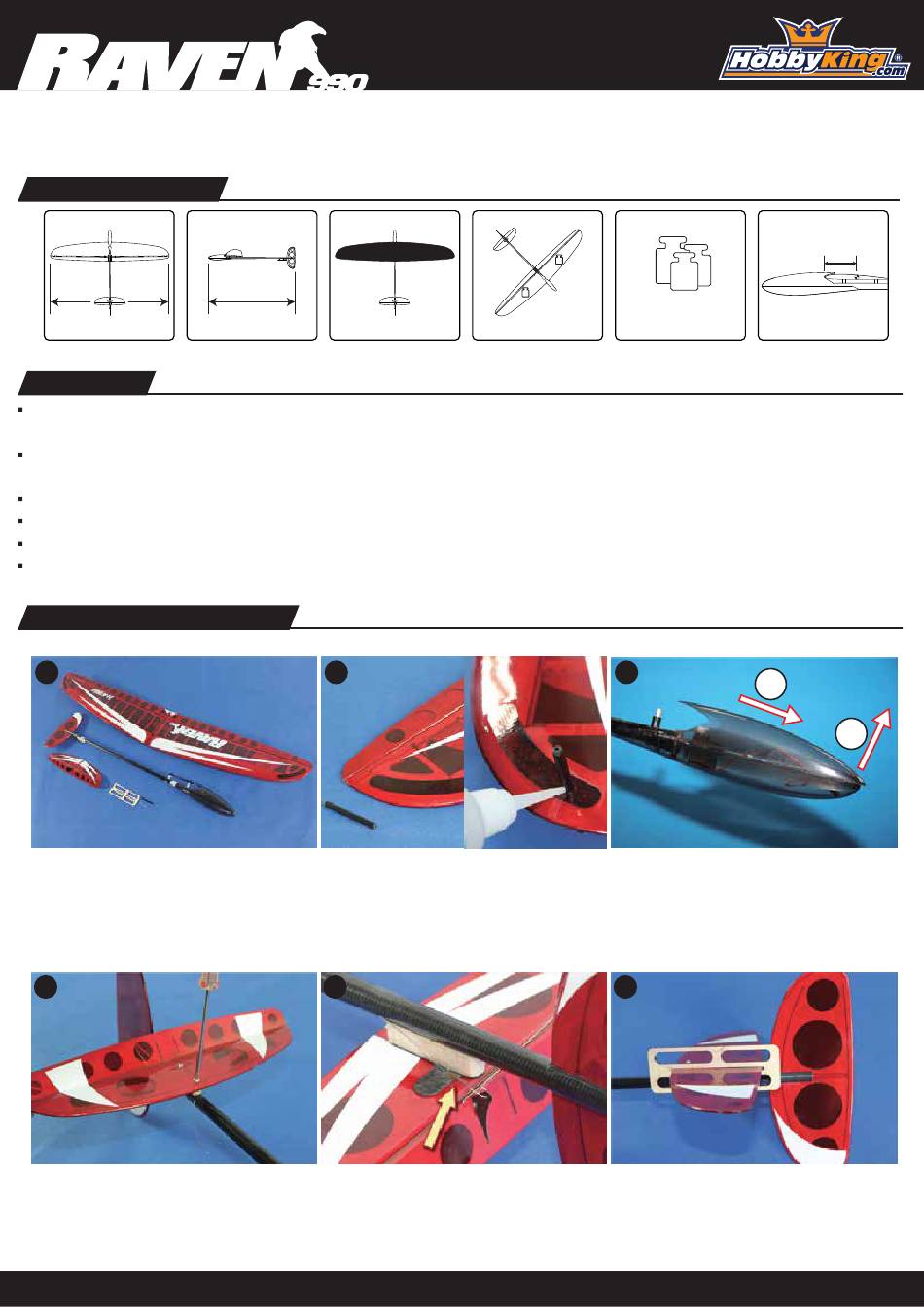

Assembly procedures:
1
Package of contents.
4
Install the elevator to the elevator
mount on the tail boom by using
the tapping screws provided in
the kit.
ASSEMBLY MANUAL
ca. 11.17dm
2
2
Install the carbon tube launcher to
either right or left wing tip according
to your own requirement.
5
Hook up the prepared cable to
the elevator horn as shown.
1
kg
kg
ca. 160 g
ca. 14.3 g/dm
2
3
We feature a simple but effective
locking mechanism design to
secure the canopy in place. First,
pull the canopy forward, then lift up
the canopy as shown in the picture.
6
Slide on the provided wooden jig
to hold the elevator in straight and
level for servo linkage setup.
80mm
g
CG.
1
2
