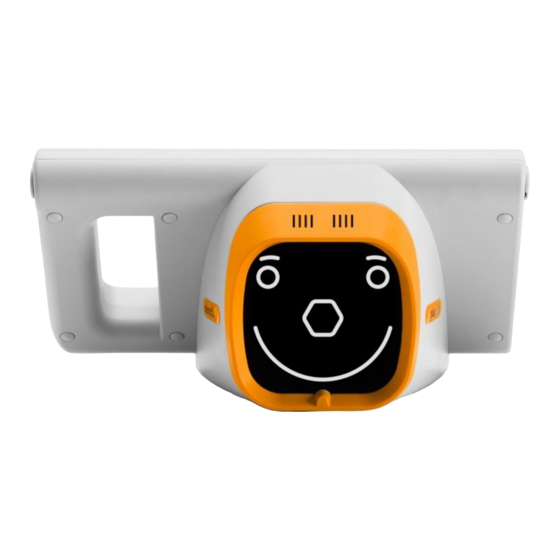

PLUSOPTIX Vision Screener Short Manual
Hide thumbs
Also See for Vision Screener:
- User manual (14 pages) ,
- Short manual (8 pages) ,
- Short manual (11 pages)
Related Manuals for PLUSOPTIX Vision Screener
Summary of Contents for PLUSOPTIX Vision Screener

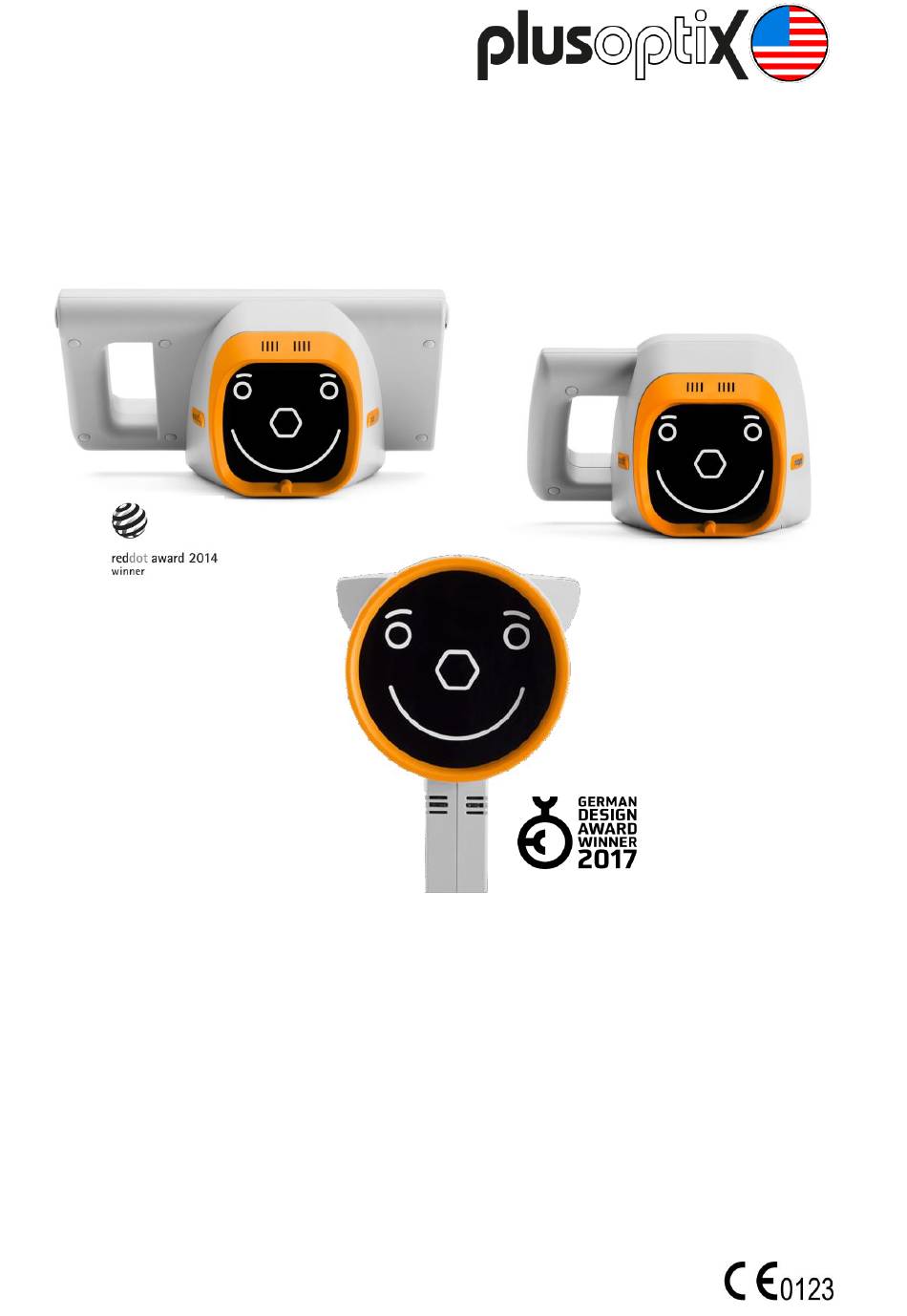

- Page 1 Vision Screener Short Manual 4 “Viewing measurement results” Plusoptix GmbH Neumeyerstrasse 48 90411 Nuremberg Germany www.plusoptix.com Edition: 12/16/2019...
- Page 2 Figure 6: “Database” results page ..................7 This manual is a supplementary short manual. For general information about your Plusoptix device, such as its intended use, basic handling, technical information, maintenance, service, and warranty information, please refer to the user manual that was delivered with your device.
- Page 3 As space on the screen is limited, the measurement results are spread across a total of two (plusoptiX S12R), or three screens (plusoptiX S12C and S16) respectively. After the measurement, you will first see the “camera image” results page. By touching the appropriate button in the middle of the navigation bar, you can access each of the three results pages.
- Page 4 Attention: Following an anonymous measurement, a screening report is not saved automatically. As soon as you return to the home page without previously saving, the screening report can no longer be saved and printed. However, even the measurement values of an anonymous measurement will be saved in the patient database under a consecutive ID number (only S12C and S16).
- Page 5 10. 3 “Measurement values” results page The measurement values are shown separately for the right eye (OD) and the left eye (OS): OD gaze map OS gaze map plusoptiX S12 Screening result Figure 4: Viewing the measurement values Spherical...
- Page 6 If the measurement values are exceeding the measuring range, “HYP” (for hyperopia) or “MYO” (for myopia) is displayed as the measurement of the spherical equivalent instead of a quantitative numerical value. The spherical equivalent is shown instead of the sphere in order to ensure that the referral criteria can be applied irrespective of the cylinder setting.
- Page 7 SD card (plusoptiX 12) / USB stick (plusoptiX 16). For more information about the documentation of measurement results, please see supplementary short manual 6 and 7.
- Page 8 5 Performing the next measurement Attention: Following an anonymous measurement, a screening report is not saved automatically. As soon as you return to the home page without previously saving, the screening report can no longer be saved and printed. However, even the measurement values of an anonymous measurement will be saved in the patient database under a consecutive ID number (only S12C and S16).
