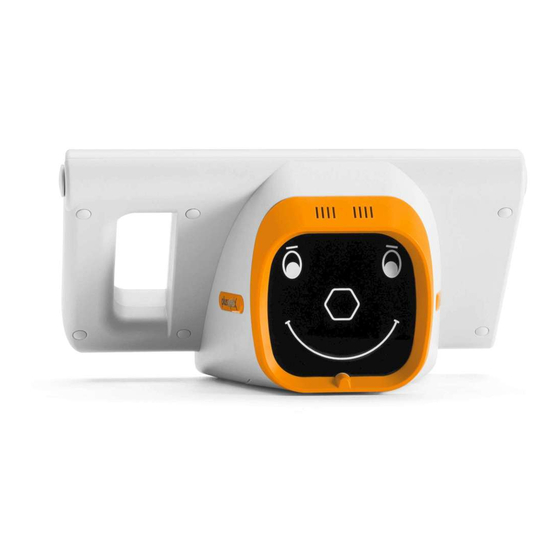

PLUSOPTIX Vision Screener Short Manual
Preparing and performing a measurement
Hide thumbs
Also See for Vision Screener:
- User manual (14 pages) ,
- Short manual (8 pages) ,
- Short manual (11 pages)
Subscribe to Our Youtube Channel
Related Manuals for PLUSOPTIX Vision Screener
Summary of Contents for PLUSOPTIX Vision Screener

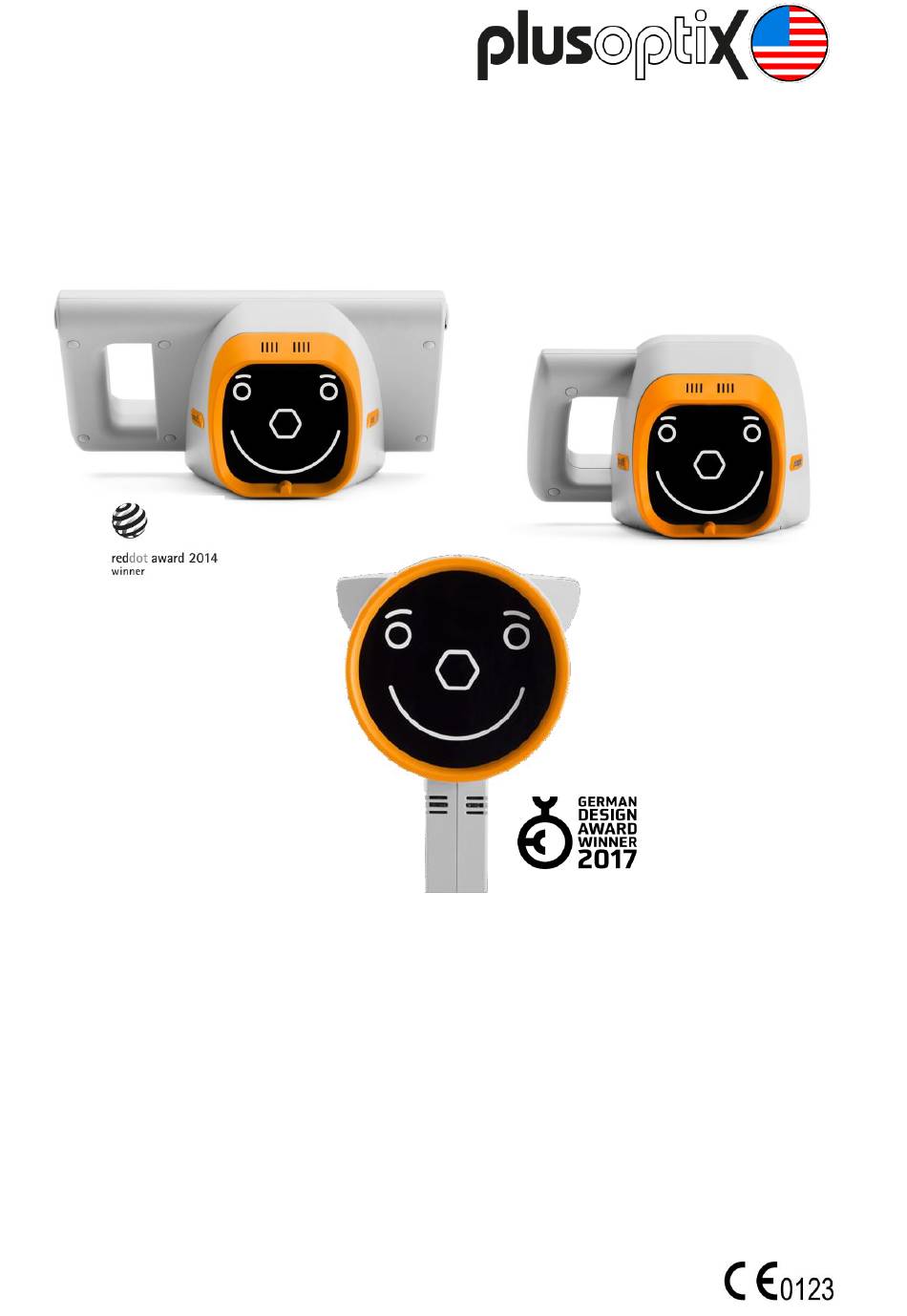

- Page 1 Vision Screener Short Manual 3 “Preparing and performing a measurement” Plusoptix GmbH Neumeyerstrasse 48 90411 Nuremberg Germany www.plusoptix.com Edition: 12/16/2019...
- Page 2 Performing a measurement ..................... 5 Preconditions for a successful measurement ............... 5 Selecting an age group ....................6 Starting the measurement and adjusting the Plusoptix Vision Screener ....... 7 List of figures Figure 1: Measuring environment ..................3 Figure 2: Selecting the referral criteria ................... 4 Figure 3: Home screen ......................
- Page 3 The attention span of infants is very short. You can use the fact that the examination room is unfamiliar to the infant to your advantage. An attention-grabbing warble sound and the child-friendly Plusoptix smiley face in this unfamiliar environment will always arouse interest. Avoid any lengthy conversations with the parents before the measurement.
- Page 4 - Importing patients from the EMR software before the measurement Note: The “plusoptiX S12R” has no internal patient database. After the measurement a single line to enter patient data will be portrayed, where you can fill in individual patient data. These data will also be portrayed in the screening report and on the self-adhesive label.
- Page 5 2 Performing a measurement 2.1 Preconditions for a successful measurement a) The measuring distance is correct: The measuring distance must be between 37 and 41 inch (95 and 105 cm). Check whether the camera image on the screen is in focus. You must be able to see individual hair of the eyelids or eyelashes clearly on the camera image.
- Page 6 2.2 Selecting an age group After you have set the time and date, the home page will be displayed every time you turn the device on again. Figure 3: Home screen Select an age group (1) by touching the appropriate age range (see Figure 4). You must select the age group (1) in order to ensure the measurement values of the patient are compared with the correct age-specific referral criteria (see Chapter 1.3 “Selecting referral criteria”).
- Page 7 Note: The screen in the plusoptiX S12 models is fixed at a 45° angle to the camera axis. Tilt your wrists downwards to align the camera. Figure 5: Aligning the plusoptiX 12 model - By touching the flashing “GO”...
- Page 8 The image is blurry. As the measuring distance is too great, you can see the head of the patient virtually in its entirety. Move the device towards the patient until the camera image can be seen in high-definition on the screen and both pupils are encircled in green (see next picture).
