Global LP 2881 Series Instruction Manual & Parts Book
  1. Manuals
  2. Brands
  3. Global Manuals
  4. Sewing Machine
  5. LP 2881 Series
  6. Instruction manual & parts book

Global LP 2881 Series Instruction Manual & Parts Book

Postbed machine with stepper motor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

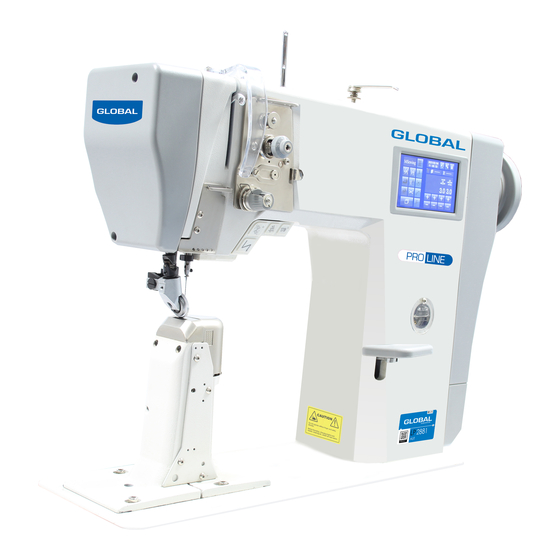

LP 2881 series
Postbed machine with stepper motor
Instruction manual & Parts book
Always switch off the electricity when working on
the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LP 2881 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Global LP 2881 Series

Summary of Contents for Global LP 2881 Series

  • Page 1 LP 2881 series Postbed machine with stepper motor Instruction manual & Parts book Always switch off the electricity when working on the machine.
  • Page 62 USER MANUAL FOR STEP ROLLER FEED MACHINE 1: Boot interface Boot screen icon description: Sewing confirmation key. Click this key, the spindle motor and the pendulum motor will find the origin point, and the system will enter the sewing mode. Factory setting key.
  • Page 63 Figure 1: Free sewing interface Figure 2: Overlapping sewing interface Figure 3: Programmed sewing interface 2.1: Key description...
  • Page 64 Start back-tacking. The white font icon indicates that this function is activated and the dark gray font icon indicates that this function is invalid. End back-tacking. The white font icon indicates that this function is activated and the dark gray font icon indicates that this function is invalid.
  • Page 65 change speed of "start back-tacking", "end back-tacking" and the current segment. Under the overlapping sewing and programmed sewing it just can change current segment speed. Back-tacking setting. The white font icon indicates that this function is activated and the dark gray font icon indicates that this function is invalid.
  • Page 66 program will continue. Under the free sewing mode activate this key used for coiling bottom thread, at this time the upper and lower rollers not action. Under the programming sewing activate this key, it will automatic stop machine after sewing is completed for current segment.
  • Page 67 Press this key on correspond position, parameter plus. Press this key in correspond position, parameter minus. Long press this key, it will enter to pattern editing mode. See the following section for detailed operation. Long press this key, it will enter to parameter setting mode. See the following section for detailed operation. Lock and unlock key.
  • Page 68 Upper roller icon Lower roller icon This icon corresponding number indicates current pattern no. This icon corresponding number indicates current sewing speed. This icon corresponding number indicates current sewing stitches. This icon number indicates current sewing segment. 3: Basic operation 3.1 Free sewing Figure 4: Free sewing interface - Roller value setting 3.1.1 Adjustment of roller value...
  • Page 69 3.1.2 Start back-tacking setting Figure 5: Free sewing screen - Start back-tacking setting If you need to set up start back-tacking, activate the back-tacking key first . Then, click the scroll ，shift settings interface, as shown above. Red box set "A" section, yellow box set "B" section, black box, set repeat number "R".
  • Page 70 3.1.3 Speed setting Figure 7: Free sewing interface - Speed setting If need to setting speed, first to activated speed setting key . And then click scroll key shift setting interface. Red box can setting start back-tacking speed, yellow box can setting end back-tacking speed, black box can setting speed of free sewing segment.
  • Page 71 enter needle position angle setting interface. As shown in figure 8. Interface current display spindle shaft position, use the hand-wheel to turn the needle bar to requirement position, press “OK” key to save the current setting value, and then press return key to turn back.
  • Page 72 Figure 10: Overlapping sewing interface- Needle position setting If need to use needle position function in the overlapping sewing, please activated key. Press scroll shift to needle position setting page, use “+”, “-” key modify to require angle value. As require needle position value can through free sewing needle position angle setting page, by turn over hand-wheel, obverse current spindle shaft position to confirmation.
  • Page 73 means ABA. And so on. A total of 8 segments can be set. The arrow in the red box can increase or decrease the number of segments. 3.2 Programmed sewing Figure 12: Programmed sewing interface - Description As shown in the above figure, in the programmed sewing interface red box indicates the current code of pattern.
  • Page 74 Figure 13: Programmed sewing interface - Multi-segment shift Use the LCD panel to shift different segment, at first need to activated key, then use “+”,”-” key in the red box to select require sewing segment. Figure 14: Programmed sewing interface - Multi-segment shift As shown in above figure is shift to the second segment interface, segment no is display 2 segment, after number and selected segment number is same number 2.
  • Page 75 Figure 15: Programmed sewing interface - Setting start back-tacking On the programmed sewing, start back-tacking, end back-tacking setting method is similar as free sewing. The different is under programmed modem, it can’t modify speed and repeat times for start back-tacking and end back-tacking.
  • Page 76 Figure 17: Parameter setting interface As shown above figure, click white key for turn left or turn right, interface will turn to previous or latter parameter setting interface, at the same time after No. Number will be change accordingly. After select the parameter item which want to modify, use right side “+” “-” key to modify the parameter value.
  • Page 77 Figure 19: Added pattern As shown above figure, in the P04 the 04 indicates it will add pattern code, click right side “+” key will added pattern. After complete added, waiting add pattern number will automatic add 1 to became next waiting for add pattern, if no need to continue add then press return key to back.
  • Page 78 Figure 21: Select waiting editing pattern Press key to select need to editing pattern number. After select press key, to enter editing interface. 5.3.1 Editing method Figure 22: Pattern editing method Pattern editing method, it is similar with previous chapter introduction setting method in the sewing interface. At first it need to consider the pattern require how many segment.
  • Page 79 Figure 23: Adding delete segment Press “+”, “-” key white font below of the “add segment”, delete segment. Press “+”, “-” key white font below of the “cycle sewing”, the pattern setting as the cycle sewing mode. Noted: only after the segment have been set then can setting cycle sewing.
  • Page 80 Shift between each setting use scroll key . The 2 segment and 3 segment setting method is same as 1 segment.
  • Page 81 It need to save pattern after pattern editing setting. 5.4 Pattern output to USB flash drive Export the edited pattern on the current machine to the U disk. This operation can easily input the edited pattern to other unedited machines. The patterns that can be output start from the pattern number 3 on this machine to the maximum pattern number that has been edited.
  • Page 82 3 Tacking and back-tacking parameter 3.1 Start back-tacking speed: 700~1500. Default: 1500 Unit: Rpm 3.2 End back-tacking speed: 700~1500. Default: 1500 Unit: Rpm 3.3 Sewing back-tacking speed: 700~1500. Default: 1500 Unit: Rpm 3.4 Back-tacking break mode: 0~1. Default: 0 3.5 Action mode after start back-tacking: 0~2. Default: 0 3.6 Back-tacking speed mode 0~1.
  • Page 83 6.2 Roller presser slow down enable：ON/OFF. Default: OFF 6.3 Sew start delay time when presser down: 0~25. Default: 8 6.4 Presser lift holding time: 3~15. Default: 8 6.5 Presser solenoid duty: 10~40. Default: 20 6.6 Presser slowdown time: 20~200. Default: 50 7 Soft start parameter 7.1 Soft start enable: ON/OFF.
  • Page 84 9.5 Decelerate factor: 1~100. Default: 20 9.6 Motor boost enable: ON/OFF. Default: OFF 9.7 Motor boost setting: 1~15. Default: 1 9.8 Shaft motor reversal enable after thread trimming: ON/OFF. Default: OFF 9.9 Shaft motor reversal angle after thread trimming: 10~40. Default: 10 9.10 Shaft motor hold function: 0~2.
  • Page 85 It not received the panel return data. 3122 Communicate data verification error The data received was wrong 3123 Spindle shaft drive abnormal Spindle motor over-current. 3124 Pendulum drive abnormal Pendulum motor over-current. 3125 Pattern transfer error Pattern transfer error, communicate problem. 3126 Parameter transfer error Parameter transfer error, communicate problem.
  • Page 86 Sewing with 2 different stitch lengths and retrieval via knee switch: » Go to „PSewing“ » Press „Open Folder“ » Press „P“ long » Press „Program A Dsn“ » Now select the desired program number with the + button » Confirm with the green tick »...
  • Page 87 POST BED COMPOUND FEED SEWING MACHINE WITH STEP MOTOR PARTS MANUAL 零件手册...

  • Page 89: Table Of Contents

    CONTENT 目录 A. Arm bed and its accessories 机壳部件…………………………………2 B. Presser bar parts 压杆部件…………………………………………………4 C. Needle bar holder parts 针棒座部件…………………………………………6 D. Thread tension regulator parts 夹线调节器部件…………………………8 E. Main shaft driving parts 主动轴传动部件……………………………………10 F. Needle feed parts 针送料部件………………………………………………12 G. Presser foot lifting parts 压脚提升部件……………………………………14 H.

  • Page 90: Arm Bed And Its Accessories 机壳部件

    A. Arm bed and its accessories 机壳部件 Part No. Name 名称 1NEEDLE 2 NEEDLE Arm bed 7.02.01.068 机壳 Back cover 7.02.21.467 后罩壳 Power switch 电源开关 Back cover screw 7.02.15.096 GB/T 65 M5×16 后罩壳罗钉 Lower plate 7.02.11.482 下盖板 Lower plate screw 7.02.15.044 GB/T 65 M5×8 下盖板螺钉...
  • Page 91 A. Arm bed and its accessories 机壳部件...

  • Page 92: Presser Bar Parts 压杆部件

    B. Presser bar parts 压杆部件 Part No. Name 名称 1NEEDLE 2NEEDLE Presser foot lifting lever 1 7.02.05.01101 压脚提升扳手 Screw 2 7.02.15.056 螺钉 GB/T 77 M5×5 Screw 3 7.02.15.049 螺钉M5 Set screw 4 7.02.15.057 紧定螺钉 GB/T 77 M6×8 Screw 5 7.02.15.025 螺钉...
  • Page 93 B. Presser bar parts 压杆部件...

  • Page 94: Needle Bar Holder Parts 针棒座部件

    C. Needle bar holder parts 针棒座部件 Part No. Name 1NEEDLE 2NEEDLE 名称 Thread take-up assy. 1 7.02.01.353 天秤组件 Thread take-up fixed pin 天秤固定销 Plastic stop ring 塑料挡圈 Needle bearing 滚针轴承 Thread take-up holder 天秤固定架 Thread take-up shaft bushing 天秤轴套管 Set screw 7 7.02.15.049 紧定螺钉...
  • Page 95 C. Needle bar holder parts 针棒座部件...

  • Page 96: Thread Tension Regulator Parts 夹线调节器部件

    D. Thread tension regulator parts 夹线调节器部件 Part No. Name 名称 1NEEDLE 2NEEDLE Thread tension regulator assy. 7.02.01.280 单针沙拉组 Thread tension regulator assy. 7.02.01.282 双针沙拉组 Screw 2-1. 夹线调压螺钉 Thread tension plate(Small) 2-2. 小夹线板 Spring 2-3. 夹线调节弹簧 2-4. 夹线调节螺母 2-5. 螺母 Screw 2-6.
  • Page 97 D. Thread tension regulator parts 夹线调节器部件...

  • Page 98: Main Shaft Driving Parts 主动轴传动部件

    E. Main shaft driving parts 主动轴传动部件 Part No. Name 名称 1NEEDLE 2NEEDLE 1 7.02.01.358 凸轮 Screw 2 7.02.15.014 螺钉GB/T 70.1 M5×12 Cam position screw 3 7.02.15.013 凸轮定位螺钉 M7 Cam set screw 4 7.02.15.053 凸轮紧定螺钉 M7×13 Set screw 5 7.02.15.050 M6×0.75×8 紧定螺钉...
  • Page 99 E. Main shaft driving parts 主动轴传动部件...

  • Page 100: Needle Feed Parts 针送料部件

    F. Needle feed parts 针送料部件 Part No. Name 名称 1NEEDLE 2NEEDLE Retaining ring 针杆架轴挡圈 Screw 螺钉 Link 针送连杆 Screw 螺钉 Needle bearing 滚针轴承 针距调节连杆销 Vibrating needle step motor 摆针步进电机 Eccentric shaft 偏心轴 Screw 螺钉 Needle bearing 滚针轴承 Screw 螺钉 Motor seat 针送电机座...
  • Page 101 F. Needle feed parts 针送料部件...

  • Page 102: Presser Foot Lifting Parts 压脚提升部件

    G. Presser foot lifting parts 压脚提升部件 Part No. Name 名称 1NEEDLE 2NEEDLE Adjusting presser handle 调压手柄 Elastic presser plate 2 7.02.17.007 弹片压板 3 7.02.15.791 弹簧压板支撑螺钉 M6 Spring presser plate supporting screw Split retaining ring 4 7.02.18.039 开口挡圈 GB/T 896-5 Restrict screw 5 7.02.15.020 限位螺钉...
  • Page 103 G. Presser foot lifting parts 压脚提升部件...

  • Page 104: Bobbin Winder Parts 绕线器部件

    H. Bobbin winder parts 绕线器部件 Part No. Name 名称 1NEEDLE 2NEEDLE Thread guide 7.02.01.302 过线器 Thread guide bar 过线杆 Adjusting spring seat 调节弹簧座 Spring 弹簧 夹线调节螺母 螺母 Thread post 7.02.21.029 线柱 Bobbin winder assy. 7.02.01.281 绕线器组件 Stopper screw 止动螺钉 GB∕T65 M5×8 Stopper block 止动块...
  • Page 105 H. Bobbin winder parts 绕线器部件...

  • Page 106: Bed Plate Feed Parts For 2 Needle 双针中座部件

    I. Bed plate feed parts for 2 needle 双针中座部件 Part No. Name 名称 1NEEDLE 2NEEDLE Feed wheel fixed plate 7.02.17.002 送料轮固定板 Feed wheel 7.02.07.013 送料齿 Support plate screw 7.02.15.006 GB/T 65 M4×8 双针中座螺钉 Support plate 7.02.13.29101 双针中座 Fixed plate screw 7.02.15.017 GB/T 65 M4×10 固定板螺钉...
  • Page 107 I. Bed plate feed parts for 2 needle 双针中座部件...

  • Page 108: Lower Feed And Clutch Set Parts 下送料及离合器部件

    J. Lower feed and clutch set parts 下送料及离合器部件 Part No. Name 名称 1NEEDLE 2NEEDLE Lower feed step motor 下送料步进电机 Motor mounting screw 电机安装螺钉 Gear (Small) 齿轮（小） Screw 螺钉 Gear (Large) 齿轮（大） Screw 螺钉 Retaining ring 轴用挡圈 Bearing 轴承 Lower shaft collar 7.02.09.079 下轴紧圈...
  • Page 109 J. Lower feed and clutch set parts 下送料及离合器部件...

  • Page 110: Oil Lubrication Parts 润滑部件

    K. Oil lubrication parts 润滑部件 Part No. Name 名称 1NEEDLE 2NEEDLE Oil box 油盒 Screw 螺钉 Oil tube clamp 7.02.17.412 油管夹 Screw 7.02.15.022 螺钉 M4×4.5 Oil tube 7.02.16.047 油管 Oil tube clamp 7.02.16.166 油管夹 Screw 7.02.15.006 螺钉 Oil tube joint 7.02.16.307 油管接头...
  • Page 111 K. Oil lubrication parts 润滑部件...

  • Page 112: Hook Parts (Left) 旋梭勾线、剪线部件（左

    L. Hook parts (Left) 旋梭勾线、剪线部件（左） Part No. Name 名称 1NEEDLE 2NEEDLE Hook assy. 7.02.01.285 旋梭组件 Bobbin case 旋梭壳组 Elastic gasket 阻尼弹片 Screw 螺钉 Screw 螺钉 Needle guard slice 护针片 Screw 护针片螺钉 Screw 7.02.15.038 M5×20 旋梭螺钉 Bobbin 7.02.21.385 锁芯 Screw 7.02.15.047 螺钉...
  • Page 113 L. Hook parts (Left) 旋梭勾线、剪线部件（左）...

  • Page 114: Side Bracket Parts (Left)边座部件（左

    M. Side bracket parts (Left) 边座部件（左） Part No. Name 1NEEDLE 2NEEDLE 名称 Bearing 7.02.04.111 BTM20303.5 推力轴承 Washer 7.02.18.253 垫圈 Needle bearing 7.02.04.112 K20×24×13 滚针轴承 Bushing 7.02.08.393 釜轴轴套 Elastic retaining ring 7.02.18.254 弹性挡圈 Left side bracket 左边座 Oil felt 7.02.16.301 羊毛毡 Adjusting pin 7.02.10.011 调整销...
  • Page 115 M. Side bracket parts (Left) 边座部件（左）...

  • Page 116: Hook Parts (Right)旋梭勾线、剪线部件（右

    N. Hook parts (Right) 旋梭勾线、剪线部件（右） Part No. Name 名称 1NEEDLE 2NEEDLE 7.02.01.285 Hook assy. 旋梭组件 Hook-top 梭头体 Screw 板式弹簧螺钉 Spring 板式弹簧 Elastic gasket 阻尼弹片 Bobbin case base 梭宛 Screw 螺钉 Hook gib 内梭头舌 Bobbin case 梭壳 Screw 螺钉 1-10 Needle guard slice 护针片...
  • Page 117 N. Hook parts (Right) 旋梭勾线、剪线部件（右）...

  • Page 118: Side Bracket Parts (Right)边座部件（右

    O. Side bracket parts (Right) 边座部件（右） Part No. Name 名称 1NEEDLE 2NEEDLE Post cap assy. 釜盖组件 Post cap 釜盖 销 Post cap turning seat 釜盖转动座 Washer 垫片 Set screw 7.02.15.005 GB/T 65 M4×8 紧定螺钉 Cover plate 7.02.11.485 边盖板 Cover plate screw 7.02.15.973 边盖板螺钉...
  • Page 119 O. Side bracket parts (Right) 边座部件（右）...

  • Page 120: Side Bracket Parts (Short Thread End)边座部件 (短线头)

    P. Side bracket parts（Short thread end） 边座部件（短线头） Part No. Name 名称 1NEEDLE 2NEEDLE Hook assy. 7.02.02.392 旋梭组件 Screw 7.02.15.038 旋梭螺钉 Bobbin 7.02.21.385 梭芯 Sealing ring 7.02.16.300 密封圈 Oil supply plate 7.02.11.385 旋梭供油板 Shaft 7.02.03.340 旋梭轴 Bearing 7.02.04.019 推力轴承 Needle bearing 7.02.04.018 滚针轴承...
  • Page 121 P. Side bracket parts（Short thread end） 边座部件（短线头）...

  • Page 122: Thread Trimming Parts (Short Thread End)剪线部件 (短线头)

    Q. Thread trimming parts (Short thread end) 剪线部件（短线头） Part No. Name 名称 1NEEDLE 2NEEDLE Fixed knife seat 定刀座 Position pin 定刀座定位销 Fixed knife 7.02.20.101 定刀 Screw 定刀螺钉 Thread clamping plate 7.02.20.102 夹线板 Screw 7.02.15.1104 夹线板螺钉 Screw 定刀座螺钉 Adjusting pin 定刀座调整销 Set screw 调整销紧定螺钉...
  • Page 123 Q. Thread trimming parts (Short thread end) 剪线部件（短线头）...

  • Page 124: Bed Plate Feed Parts 单针中座部件

    R. Bed plate feed parts 单针中座部件 Part No. Name 1NEEDLE 2NEEDLE 名称 Screw 7.02.15.053 GB/T 70.1 M5×12 螺钉 Washer 7.02.18.016 平垫圈 Screw 7.02.15.030 螺钉 Adjusting pin 7.02.10.010 调整销 Adjusting pin set screw 7.02.15.031 调整销紧固螺钉GB/T 73 M4×10 Support plate 单针中座 Bed plate 大梭中座...
  • Page 125 R. Bed plate feed parts 单针中座部件...

  • Page 126: Thread Trimming Solenoid,Thread Releasing Solenoid Parts 剪线、松线电磁铁部件

    S. Thread trimming solenoid,thread releasing solenoid parts 剪线、松线电磁铁部件 Part No. Name 名称 1NEEDLE 2NEEDLE Thread releasing solenoid 7.02.19.345 松线电磁铁 Solenoid joint 7.02.16.410 电磁铁接头 Screw 7.02.15.976 GB/T 70.1 M3×5 螺钉 Fixed plate 7.02.11.500 电磁铁固定板 Fixed plate screw 7.02.15.003 GB/T 68 M5×8 固定板螺钉...
  • Page 127 S. Thread trimming solenoid,thread releasing solenoid parts 剪线、松线电磁铁部件...

  • Page 128: Thread Trimming Driving Parts 剪线传动部件

    T. Thread trimming driving parts 剪线传动部件 Part No. Name 名称 1NEEDLE 2NEEDLE 1 7.02.01.286 Thread trimming vibrating lever assy. 剪线摆杆组件 2 7.02.03.341 Thread trimming vibrating lever shaft 剪线摆杆轴 Connecting lever pin (Right) 3 7.02.10.367 φ6χ20 连杆销（右） Connecting link pin set screw 4 7.02.15.056 连杆销紧定螺钉...
  • Page 129 T. Thread trimming driving parts 剪线传动部件...

  • Page 130: Presser Foot Lifting Solenoid Parts 压脚提升电磁铁部件

    U. Presser foot lifting solenoid parts 压脚提升电磁铁部件 Part No. Name 名称 1NEEDLE 2NEEDLE Presser foot lifting solenoid 1 7.02.19.346 压脚提升电磁铁 Link 2 7.02.03.422 电磁铁连接杆 Joint 3 7.02.16.411 接头 Solenoid fixed seat 4 7.02.13.372 电磁铁固定座 Locking screw 5 7.02.15.057 GB/T 77 M6×8 锁紧螺钉...
  • Page 131 U. Presser foot lifting solenoid parts 压脚提升电磁铁部件...

  • Page 132: Upper Feed Parts For 1 Needle 上送料部件（单针

    V. Upper feed parts for 1 needle 上送料部件（单针） Part No. Name 名称 1NEEDLE 2NEEDLE Upper feed step motor 上送料步进电机 Motor mounting screw 电机安装螺钉 Motor fixed plate 电机固定板 Rubber washer 橡胶垫圈 Screw 固定板安装螺钉 Roller presser foot 6 7.02.02.390 滚轮压脚 Connecting holder 7 7.02.05.002 轮线连接座...
  • Page 133 V. Upper feed parts for 1 needle 上送料部件（单针）...

  • Page 134: Upper Feed Parts For 2 Needle 上送料部件（双针

    W. Upper feed parts for 2 needle 上送料部件（双针） Part No. Name 名称 1NEEDLE 2NEEDLE Screw 螺钉 Upper feed step motor 上送料步进电机 Retaining ring 挡圈 Adjusting washer 0.15 调节垫片 0.15 Adjusting washer 0.30 调节垫片 0.3 Adjusting washer 0.50 调节垫片 0.5 Bearing 轴承...
  • Page 135 W. Upper feed parts for 2 needle 上送料部件（双针）...

  • Page 136: Electric Control, Backstitch Lever Parts 电控及倒缝扳手部件

    X. Electric control, backstitch lever parts 电控及倒缝扳手部件 Part No. Name 名称 1NEEDLE2NEEDLE Power transfer line 电源转接线 Control box 电控箱 Touch screen panel 液晶面板 Screw 面板紧固螺钉 Panel pick-up pin box transfer line 面板选针盒转接线 Panel burning transfer line 面板烧录转接线 Backstitch lever shaft 倒缝扳手轴...
  • Page 137 X. Electric control, backstitch lever parts 电控及倒缝扳手部件...

  • Page 138: Accessories 附件

    Y. Accessories 附件 Part No. Name 名称 1NEEDLE 2NEEDLE Screw driver (Large) 7.02.21.003 螺钉起子（大） Screw driver (Middle) 7.02.21.002 螺钉起子（中） Screw driver (Small) 7.02.21.001 螺钉起子（小） Inner hexagon spanner 4MM 内六角扳手 4MM Inner hexagon spanner 3MM 内六角扳手 3MM Inner hexagon spanner 2.5MM 内六角扳手...
  • Page 139 Y. Accessories 附件...
  • Page 140 Z1.THREAD TRIMMING MECHANISM(Large hook) Part No. Fig. No. Name Remark 7.02.19.391 AG2810-01 Thread trimming solenoid 7.02.15.797 AG2110-02 Screw M4×6 7.02.11.387 AG2110-03 Fixed plate 7.02.15.803 AG2110-04 Fixed plate screw GB/T70.1 M5×10 7.02.05.528 AG2810-16 Thread trimming solenoid joint 7.02.11.601 AG2810-15 Solenoid connecting plate 7.02.10.546 AG2810-17 Solenoid connecting pin...

  • Page 141: Z1. Thread Trimming Mechanism(Large Hook)剪线机构(大梭)

    Z1.THREAD TRIMMING MECHANISM(Large hook)

  • Page 142: Z2. Right Side Bracket Mechanism(Large Hook)右边座机构(大梭)

    Z2.RIGHT SIDE BRACKET MECHANISM(Large hook) Part No. Fig. No. Name Remark 7.02.13.45001 AG2808-16 Single needle side bracket 7.02.15.965 Screw 7.02.18.003 Washer 7.02.04.110 AG2108-11 Ball bearing 6001-2Z 7.02.18.250 AG2108-15 Elastic retaining ring 7.02.11.60001 AG2808-19 Side cover 7.02.15.973 Screw 7.02.02.590 AG2808-21 Post cap assy. 7.02.15.973 Screw 7.02.17.350...
  • Page 143 Z2.RIGHT SIDE BRACKET MECHANISM(Large hook)

This manual is also suitable for:

Lp 8971Lp 8974
