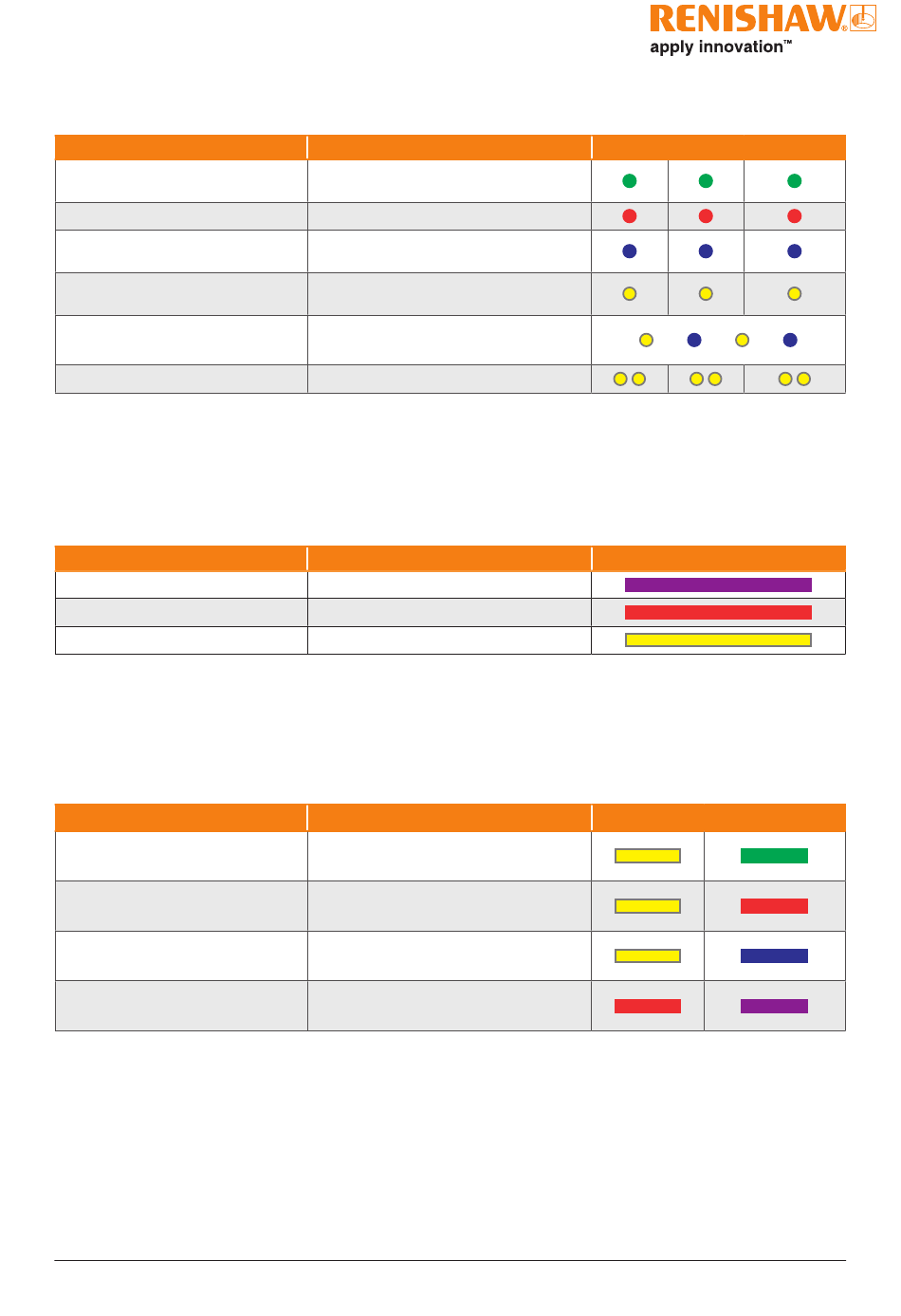

Operational mode (all signals repeat)

LED colour
Flashing green
Flashing red
Flashing blue
Flashing yellow
Flashing blue and yellow
Double flashing yellow
*
When the probe is triggered, a flashing red signal overrides any other indication such as low credit or low battery . The status of
these indicators can only be viewed when the probe is seated .

Errors

LED colour
Continuous violet
Continuous red
Continuous yellow

Credit transfer mode (part setter only)

For more information, see "Credit transfer" on page 5-32 .
LED colour
Flashing yellow and green
Flashing yellow and red
Flashing yellow and blue
Flashing red and violet
Status
Equipment seated – good credit, good
battery
Equipment triggered *
Equipment seated – good credit, low
battery
Equipment seated – low credit, good
battery
Equipment seated – low credit, low
battery
Equipment seated – very low credit
Status
Contact Renishaw
Battery dead
Credit exhausted
Status
Credit transfer mode (repeats until
mode change)
Credit transfer unsuccessful (repeats
5 times)
Credit transfer successful (repeats
5 times)
Credit transfer mode – represents a
lifetime system
Graphic hint
Graphic hint
Graphic hint
