Mounting the tool setter on a machine table

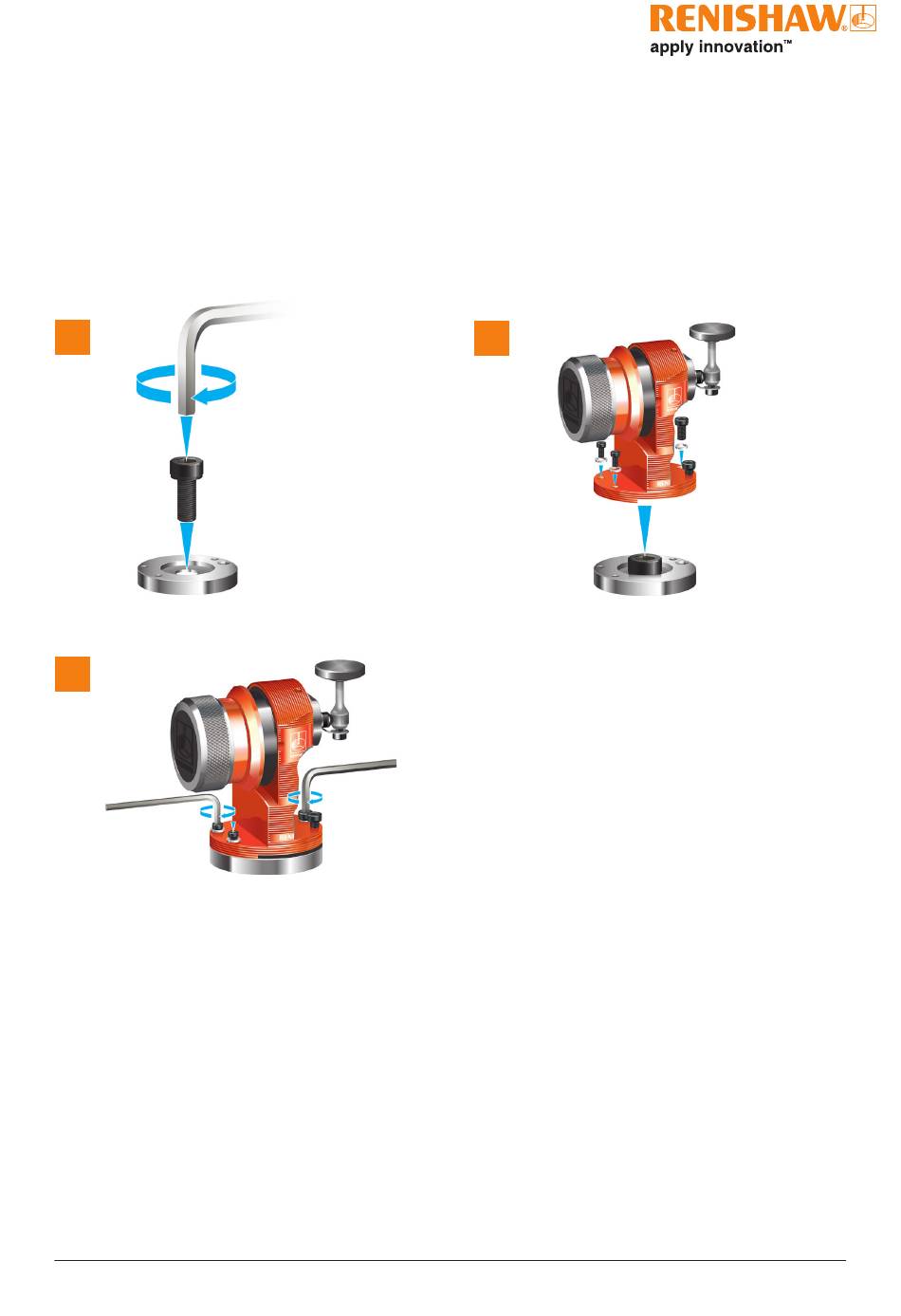

1 . Undo three of the four screws that hold the tool setter to the base .
2 . Bolt the tool setter base to the table using an M12 or M10 cap head screw and washer (not supplied) .
3 . Reattach the tool setter to the base .
1
3
3 mm A/F
2 .5 Nm – 2 .7 Nm
(1 .84 lbf .ft – 1 .99 lbf .ft)
× 2
2
4 mm A/F
4 .6 Nm – 5 .6 Nm
(3 .39 lbf .ft – 4 .13 lbf .ft)
M5
M4
