Preparing the tool setter for use

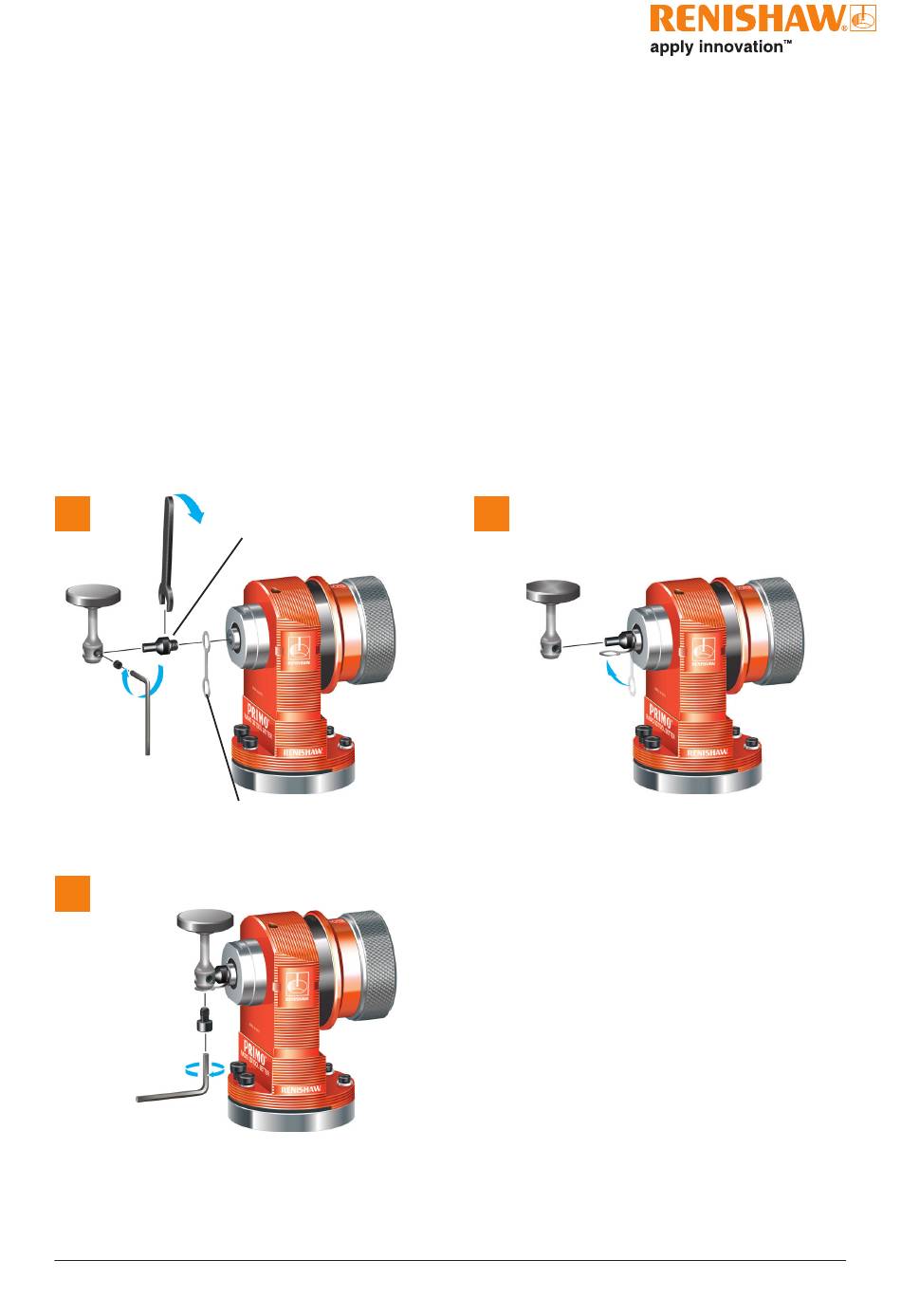

Fitting the stylus, break stem and captive link

Stylus weak link break stem
Incorporated into the stylus, the break stem protects the mechanism from damage in the event of
excessive stylus overtravel or a collision . There is a compartment within the battery housing of the tool
setter for a spare break stem to be stored .
Captive link
In the event of the break stem being damaged, the captive link ties the stylus to the probe .
5 mm A/F (thin)
2.5 Nm – 2.7 Nm
(1 .84 lbf .ft – 1 .99 lbf .ft)
1
2 mm A/F
1.0 Nm – 1.2 Nm
(0 .74 lbf .ft – 0 .89 lbf .ft)
3
3 mm
2.5 Nm – 2.7 Nm
(1.84 lbf.ft – 1.99 lbf.ft)
Stylus weak link
break stem
Captive link
2
