Quick-start guide
H-5470-8500-03-A
Primo™ system

Advertisement

loading
Need help?

Need help?

Do you have a question about the Primo system and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renishaw Primo system

Summary of Contents for Renishaw Primo system

  • Page 1 Quick-start guide H-5470-8500-03-A Primo™ system...
  • Page 2 Publications for this product are available by scanning the barcode or visiting www.renishaw.com/primo. Für dieses Produkt stehen weitere Informationen zur Verfügung. Scannen Sie dazu den Barcode oder besuchen Sie www.renishaw.de/primo. Para acceder a las publicaciones sobre este producto escanee el código de barras o visite www.renishaw.es/primo.
  • Page 3 Dostęp do dokumentacji tego produktu można uzyskać, skanując kod kreskowy lub odwiedzając witrynę www.renishaw.pl/primo. Publikace pro tento produkt jsou k dispozici po naskenování QR kódu nebo na stránce www.renishaw.cz/primo. Если вас интересует информация об этом продукте, отсканируйте штрих-код или посетите сайт...
  • Page 4 This page is intentionally left blank.
  • Page 5 Renishaw for any reason, do not return any batteries. otherwise arise from inappropriate waste handling. Contact your local authority or waste disposal service concerning the separate collection and disposal of batteries.
  • Page 6 If this equipment is used in a manner not specified by the made aware of any hazards involved during operation, including manufacturer, the protection provided by the equipment may be those mentioned in Renishaw product literature, and to ensure that impaired. adequate guards and safety interlocks are provided.

  • Page 7: Key To The Symbols

    Key to the symbols Go to page number Do not trigger part setter Refer to Primo™ system installation guide Do not trigger tool setter Refer to GoProbe pocket guide...

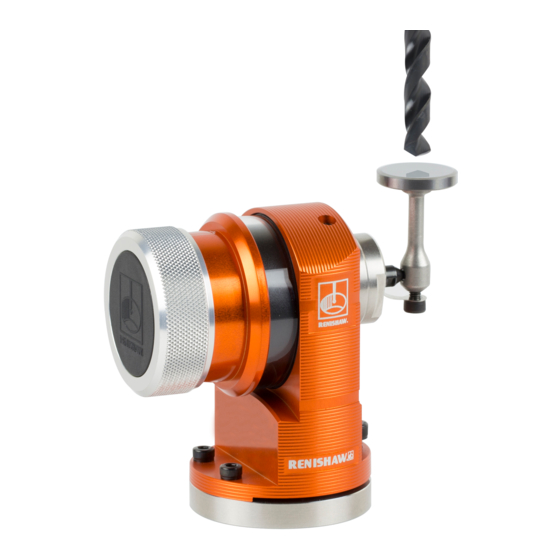

  • Page 8 The Primo™ system Primo interface Primo radio part setter Primo radio 3D tool setter...
  • Page 9 System ready checks...
  • Page 10 Part setter visual checks ×  × ...
  • Page 11 Tool setter visual checks × ...
  • Page 12 Interface visual checks × ...
  • Page 13 Part setter and tool setter system checks CAUTION: Battery isolation devices are fitted to the part setter and tool setter and must be removed before use. See pages 19 and 32 for details.
  • Page 14 This page is intentionally left blank.
  • Page 15 Part setter...

  • Page 16: Fitting The Stylus

    Fitting the stylus 1,8 Nm – 2,2 Nm (1.3 lbf.ft – 1.6 lbf.ft) M-5000-3707...
  • Page 17 Mounting the part setter on a shank × 2 2 mm A/F × 2 2 mm A/F × 4 × 4...
  • Page 18 2 mm A/F × 2 0,5 Nm – 1,5 Nm (0.4 lbf.ft – 1.1 lbf.ft)
  • Page 19 Batteries CR2 (3 V) lithium-manganese dioxide × 1  Energizer EL1 CR2 Duracell Ultra CR2 Batteries ½ AA (3.6 V) lithium-thionyl chloride × 1 ×  Saft LS 14250 Dubilier SB-AA02 Tadiran Maxell SL-750 ER3S Xeno XL-050F Sanyo CR 14250 SE Tadiran SL-350, SL-550, TL-4902, TL-5902,...
  • Page 20 Activating the part setter for the first time...
  • Page 21 CAUTION: Remove battery isolation device from the battery before use.
  • Page 23 Stylus on-centre adjustment 0,5 Nm – 1,5 Nm (0.4 lbf.ft – 1.1 lbf.ft) 2 mm A/F × 4 360°...
  • Page 24 × 2 1,5 Nm – 2,2 Nm (1.1 lbf.ft – 1.6 lbf.ft) 360°...
  • Page 25 × 4 × 4 1,5 Nm – 2,2 Nm (1.1 lbf.ft – 1.6 lbf.ft) 360°...
  • Page 26 Cleaning Use a clean cloth.
  • Page 27 Tool setter...
  • Page 28 Fitting the stylus and captive link 5 mm A/F (thin) 2,5 Nm – 2.7 Nm (1.84 lbf.ft – 1.99  lbf.ft) 2 mm A/F 1,0 Nm – 1,2 Nm (0.74 lbf.ft – 0.89 lbf.ft) 3 mm A/F 2,5 Nm – 2,7 Nm (1.84 lbf.ft – 1.99 lbf.ft)
  • Page 29 Mounting the probe on the machine table 4 mm A/F 4.6 Nm – 5.6 Nm (3.40 lbf.ft – 4.13  lbf.ft) × 2 3 mm A/F 2.5 Nm – 2.7 Nm (1.84 lbf.ft – 1.99 lbf.ft) × 2...
  • Page 30 M10/M12 bolt and T nut – supplied by user.
  • Page 31 4,6 Nm – 5.6 Nm (3.40 lbf.ft – 4.13 lbf.ft) 2,5 Nm – 2,7 Nm (1.84 lbf.ft – 1.99 lbf.ft)
  • Page 32 Batteries CR2 (3 V) lithium-manganese dioxide × 1  Energizer EL1 CR2 Duracell Ultra CR2 Batteries ½ AA (3.6 V) lithium-thionyl chloride × 1 ×  Saft LS 14250 Dubilier SB-AA02 Tadiran Maxell SL-750 ER3S Xeno XL-050F Sanyo CR 14250 SE Tadiran SL-350, SL-550, TL-4902, TL-5902,...
  • Page 33 Activating the tool setter for the first time...
  • Page 34 CAUTION: Remove battery isolation device from the battery before use.
  • Page 36 Tool setter stylus adjustment – reasons for stylus levelling Error...
  • Page 37 Tool setter stylus adjustment 4,6 Nm – 5.6 Nm (3.40 lbf.ft – 4.13 lbf.ft) Adjust Adjust and lock...
  • Page 38 CAUTION: Always complete step 1 before performing step 2. 2,5 mm A/F × 2 0,7 Nm – 0,9 Nm (0.52 lbf.ft – 0.66 lbf.ft)
  • Page 39 Cleaning Use a clean cloth.
  • Page 40 This page is intentionally left blank.
  • Page 41 Interface...

  • Page 42: Signal Led

    Interface visual diagnostics TOOL SETTER LED PART SETTER LED REMAINING CREDIT DISPLAY Tool setter switched on Part setter switched on Number displayed indicates the remaining days of credit available Part setter must be reacquired Tool setter switched off Error codes displayed Part setter switched off START LED SIGNAL LED...
  • Page 43 Primo system wiring diagram PRIMO Orange/black LTS status input (connect to LTS normally closed SSR) Orange/white Turquoise Probe status 1 (SSR) Turquoise/black Blue Probe status 2 (SSR) Blue/black Violet Low battery/credit (SSR) Violet/black Green Error (SSR) Green/black White Machine start input P1 (part setter)

  • Page 44: Probe Status

    Switch SW1 output configuration PROBE STATUS 1 Low battery/ credit Error Pulsed Abbreviations are as follows: • NO = Normally open • NC = Normally closed Factory settings are shown Level NOTE: If the error code E08 appears on the interface’s ‘REMAINING CREDIT (DAYS)’ window when the start switch setting is changed, the part setter must be reacquired.
  • Page 45 Switch SW2 output configuration PROBE STATUS 2 START Normally Pulsed Level open Spin Disabled Factory settings are shown Level Normally M-code Enabled 3D tool setter Pulsed closed...
  • Page 46 Cleaning Use a clean cloth.
  • Page 47 Primo system set-up...

  • Page 48: Status Led

    Part setter acquisition method Key to the symbols LED short flash LED long flash NOTE: The interface will need to be switched off and on again during part setter acquisitioning. STATUS LED LED check STATUS LED Probe status check...
  • Page 49 Part setter acquisition method Switch Interface off and then back on to activate acquisition mode. STATUS LED Part setter entering acquisition waiting Interface trying to establish communication with the part setter (may take up to 11 s) STATUS LED Interface has identified Part setter has the part setter identified the interface...
  • Page 50 Tool setter acquisition method Key to the symbols LED short flash LED long flash NOTE: The interface will need to be switched off and on again during tool setter acquisitioning. STATUS LED LED check STATUS LED Probe status check...
  • Page 51 Tool setter acquisition method STATUS LED Switch interface off and then back on to activate acquisition mode. Tool setter entering acquisition waiting Interface is trying to establish communication with the tool setter STATUS LED (may take up to 11 s) Tool setter has identified the interface Interface has identified...
  • Page 52 Changing the credit token...
  • Page 53 Changing the credit token NOTE: The part setter will automatically enter credit transfer mode (see page 54).
  • Page 54 Credit transfer mode Key to the symbols LED short flash STATUS LED LED long flash LED check STATUS LED Part setter seated STATUS LED Credit transfer ready NOTE: The interface must stay powered at all times during the credit transfer process.
  • Page 55 Credit transfer mode STATUS LED Credit transfer in progress STATUS LED Credit transfer complete × STATUS LED STATUS LED  Credit transfer failed Credit transfer successful STATUS LED NOTE: If credit transfer fails, the part setter will revert to “Credit transfer ready”. Credit transfer ready...
  • Page 56 Primo system set-up and calibration...

  • Page 57: Warranty

    RENISHAW® and the probe symbol are registered trade marks of Renishaw plc. Renishaw product names, designations and the mark ‘apply innovation’ are trade marks of Renishaw plc or its subsidiaries. Other brand, product or company names are trade marks of their respective owners.

  • Page 58: Eu Declaration Of Conformity

    1907/2006 (“REACH”) relating to products containing substances of very high concern (SVHCs) is available at: www.renishaw.com/REACH Renishaw plc declares under its sole responsibility that the Primo FCC Information to user (USA only) radio part setter, Primo radio 3D tool setter and Primo interface is in conformity with all relevant Union legislation.
  • Page 59 Patents Features of the Primo system, and features of similar products are the subject of one or more of the following patents and/or patent applications: CN 100466003 IN 215787 TW I380025 CN 101354230 WO 2004/057552 TW I407278 CN 101354266 WO 2015/162431...
  • Page 60 中国上海市静安区江场三路 288 号 雷尼绍文档编号 H-5470-8507 ）。有关具体的电池作业、 18 幢楼 1 楼 安全和处置指导原则，请参阅电池制造商的资料。 200436 • 确保所有安装的电池正负极方向正确。 +86 21 6180 6416 • 请勿将电池存放在阳光直射或淋雨的地方。 +86 21 6180 6418 • 请勿将电池加热或弃入火中处置。 shanghai@renishaw.com • 避免将电池强制放电。 • 请勿使电池短路。 www.renishaw.com.cn • 请勿对电池进行拆解、穿透、施加过度压力，或使其变 形。 安全须知 • 请勿吞咽电池。 用户须知 • 请将电池放在儿童无法接触的地方。...
  • Page 61 机床供应商 / 安装商须知 机床制造商有责任确保用户了解操作中存在的任何危 险，包括雷尼绍产品说明书中所述的危险，并应确保提供 充分的防护装置和安全联动装置。 如果测头测量失败，则有误发测头已复位状态信号的 可能。切勿单凭测头信号来停止机床运动。 设备安装商须知 雷尼绍所有设备的设计均符合相关的 EU 和 FCC 监管 要求。为使产品按照这些规定工作，设备安装商有责任保 证遵守以下指导原则： • 任何接口的安装位置必须远离任何潜在的电噪声源，如 变压器、伺服系统驱动装置等； • 所 有 0 伏 / 接 地 连 接 都 应 当 连 接 到 机 床 接 地 终 端 上 （“接地终端”是所有设备地线和屏蔽电缆的单点回...

  • Page 62: Radio Approvals

    Radio approvals Radio part setter India: NER-ETA/338 Australia: Japan: Brazil: 205-140186 03937-15-02812 This device is granted pursuant to the Japanese Radio “Este equipamento não tem direito à proteção contra Law and the Japanese Telecommunications Business interferência prejudicial e não pode causar interferência Law This device should not be modified (otherwise the em sistemas devidamente autorizados”.
  • Page 63 South Korea: MSIP-CRM-R1P-PRPS Class A Equipment (Industrial Use) 이 기기는 업무용(A급) 전자파적합기기로서 판 매자 또는 사용자는 이 점을 주의하시기 바 라 며, 가정외의 지역에서 사용하는 것을 목적으 로 합니다. Taiwan: CCAL14LP0020T1 警語 經型式認證合格之低功率射頻電機,非經許可,公司、商號 或使用者均不得擅自變更頻率、加大功率或變更原設計之 特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通 信;經發現有干擾現象時,應立即停用,並改善至無干擾時方 得繼續使用。 前項合法通信,指依電信法規定作業之無線電通信。低功率 射頻電機須忍受合法通信或工業、科學及醫療用電波輻射 性電機設備之干擾。...
  • Page 64 Radio approvals Radio 3D tool setter India: NER-ETA/339 Australia: Japan: Brazil: 205-140187 03934-15-02812 This device is granted pursuant to the Japanese Radio “Este equipamento não tem direito à proteção contra Law and the Japanese Telecommunications Business interferência prejudicial e não pode causar interferência Law This device should not be modified (otherwise the em sistemas devidamente autorizados”.
  • Page 65 South Korea: MSIP-CRM-R1P-PR3DTS Class A Equipment (Industrial Use) 이 기기는 업무용(A급) 전자파적합기기로서 판 매자 또는 사용자는 이 점을 주의하시기 바 라 며, 가정외의 지역에서 사용하는 것을 목적으 로 합니다. Taiwan: CCAL14LP0030T1 警語 經型式認證合格之低功率射頻電機,非經許可,公司、商號 或使用者均不得擅自變更頻率、加大功率或變更原設計之 特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通 信;經發現有干擾現象時,應立即停用,並改善至無干擾時方 得繼續使用。 前項合法通信,指依電信法規定作業之無線電通信。低功率 射頻電機須忍受合法通信或工業、科學及醫療用電波輻射 性電機設備之干擾。...
  • Page 66 Radio approvals Interface India: NER-ETA/665 Australia: Japan: Brazil: 205-140198 03936-15-02812 This device is granted pursuant to the Japanese Radio “Este equipamento não tem direito à proteção contra Law and the Japanese Telecommunications Business interferência prejudicial e não pode causar interferência Law This device should not be modified (otherwise the em sistemas devidamente autorizados”.
  • Page 67 South Korea: MSIP-CRM-R1P-PI Class A Equipment (Industrial Use) 이 기기는 업무용(A급) 전자파적합기기로서 판 매자 또는 사용자는 이 점을 주의하시기 바 라 며, 가정외의 지역에서 사용하는 것을 목적으 로 합니다. Taiwan: CCAL14LP0690T4 警語 經型式認證合格之低功率射頻電機,非經許可,公司、商號 或使用者均不得擅自變更頻率、加大功率或變更原設計之 特性及功能。 低功率射頻電機之使用不得影響飛航安全及干擾合法通 信;經發現有干擾現象時,應立即停用,並改善至無干擾時方 得繼續使用。 前項合法通信,指依電信法規定作業之無線電通信。低功率 射頻電機須忍受合法通信或工業、科學及醫療用電波輻射 性電機設備之干擾。...
  • Page 68 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, visit www.renishaw.com/contact *H-5470-8500-03*...
