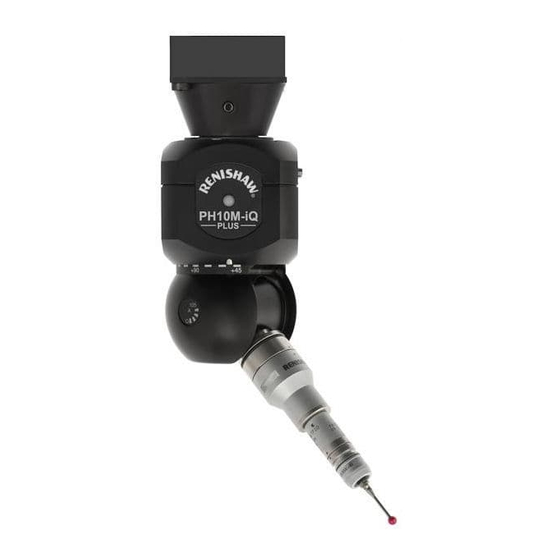

- Page 1 PH10M-iQ PLUS installation and user's guide www.renishaw.com PH10M-iQ PLUS installation and user's guide Documentation part number: H-1000-7564-04-A Issued 07 2021...
-
Page 2: General Information
Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation. You should consult these Standard Terms and Conditions to find out the full details of your warranty. - Page 3 LDPE Packing foam Polyurethane Low density Polyethylene LDPE Patents Features of the PH10M-iQ PLUS system and associated products, equipment and techniques are the subjects of one or more of the following patents and patent applications: CN101107580 EP1844371 INWO2006/079794 JP5341355 US RE43250...
-
Page 4: Product Compliance
Information to user (47 CFR 15.21) The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void the user's authority to operate the equipment. - Page 5 PH10M-iQ PLUS installation and user's guide www.renishaw.com ICES-001 (Canada only) This ISM device complies with Canadian ICES-001. Cet appareil ISM est conforme à la norme ICES‐001 du Canada. REACH regulation Information required by Article 33﴾1﴿ of Regulation ﴾EC﴿ No. 1907/2006 ﴾“REACH”﴿ relating to products containing substances of very high concern (SVHCs) is available at: www.renishaw.com/REACH...
-
Page 6: International Safety Instructions
PH10M-iQ PLUS installation and user's guide www.renishaw.com International safety instructions BG ‐ ПРЕДУПРЕЖДЕНИЕ Моля, обърнете на приложение 1 и прочетете инструкциите за безопасност на вашия собствен език, преди за разопаковате и монтирате този продукт. CZ ‐ VÝSTRAHA Před rozbalením a instalací tohoto výrobku si přečtěte bezpečnostní pokyny ve vlastním jazyce uvedené v příloze 1. - Page 7 PH10M-iQ PLUS installation and user's guide www.renishaw.com GA - RABHADH Téigh chuig aguisín 1 agus déan na treoracha sábháilteachta a léamh i do theanga féin le do thoil sula ndéantar an táirge seo a dhíphacáil agus a shuiteáil. HR - NAPOMENA Prije nego što proizvod izvadite iz ambalaže i ugradite ga, otvorite Prilog 1 i pročitajte sigurnosne upute na svom jeziku.
- Page 8 PH10M-iQ PLUS installation and user's guide www.renishaw.com RO - AVERTISMENT Înainte de a desface ambalajul şi a instala acest produs, vă rugăm să căutaţi Anexa 1 şi să citiţi cu atenţie instrucţiunile de siguranță, în limba română. SK ‐ VÝSTRAHA Pred rozbalením a inštaláciou tohto produktu si pozrite prílohu 1 a prečítajte si bezpečnostné...
- Page 9 Beware of unexpected movement. The user should remain outside the full working envelope of probe head / extension / probe combinations. In all applications involving the use of machine tools or CMMs, eye protection is recommended. For instructions regarding the safe cleaning of Renishaw products, refer to the maintenance information in the relevant product documentation.
-
Page 10: Environmental Conditions
PH10M-iQ PLUS installation and user's guide www.renishaw.com Environmental conditions The following environmental conditions exceed those as defined in BS EN 61010-1:2010: Indoor use IP30 (no protection against water) Altitude Up to 2000 m Operating temperature 0 °C to +50 °C Storage temperature ‐10 °C to +70 °C... -
Page 11: References And Associated Documents
PH10M-iQ PLUS installation and user's guide www.renishaw.com References and associated documents It is recommended that the following documentation is referenced when installing and using the PH10M-iQ PLUS: Title Document number User's guide: Touch-trigger probes H-1000-5021 User's guide: SP25M H-1000-5104 User's guide: HCU2... - Page 12 Introduction This guide describes the installation and use of the PH10M-iQ PLUS system and gives information on physical installation as well as assistance in fault-finding during the installation of a system. CAUTION: PH10M-iQ PLUS can only be used with Renishaw UCC T3 PLUS, UCC S3 CMM controllers or a PHC10-3 PLUS head controller and OEM CMM controller where the inferred qualification process has been integrated.
-
Page 13: System Description
WARNING: The components of the PH10M-iQ PLUS system are not compatible with PH9 and PH20 system components. No attempt should be made to connect the PH10M-iQ PLUS system components to a PH9 or PH20 system as this will result in damage to the product. - Page 14 PH10M-iQ PLUS installation and user's guide www.renishaw.com Positioning Step 7.5° A‐axis 0° to 105° 15 positions B‐axis ‐180° to +180° 48 positions Total 720 positions Probe mounting Multiwired autojoint Dimensions from quill face 62 mm 117 mm Weight 620 g PH10M-iQ PLUS body dimensions CAUTION: Please ensure that the head is mounted as rigidly as possible in the CMM's quill.
-
Page 15: System Interconnection Diagrams
PH10M-iQ PLUS installation and user's guide www.renishaw.com System interconnection diagrams PH10M-iQ PLUS and PHC10-3 PLUS Issued 07 2021... - Page 16 PH10M-iQ PLUS installation and user's guide www.renishaw.com Description PH10M-iQ PLUS head PHC10-3 PLUS HCU2 Head cable Communication connection to CMM controller (RS232 or USB) NOTE: For a complete guide to PHC10-3 PLUS interconnection diagrams, please refer to the PHC10-3 PLUS installation guide (Renishaw part number H-1000-0077).
- Page 17 Styli Renishaw manufacture an extensive range of precision styli and stylus accessories. They are available in M2, M3, M4 and M5 thread sizes with steel, tungsten carbide, graphite fibre and ceramic stems. Each is fitted with a precision industrial synthetic ball (ruby, zirconia or silicon nitride) available in diameters from 0.3 mm (0.012 in) to 10 mm (0.4 in).
- Page 18 • M8 thread to M8 bush ﴾PEL series﴿ Autojoint to M8 bush These extension bars connect directly to the autojoint of the PH10M-iQ PLUS head and terminate in an M8 bush. This permits the use of two- wire touch-trigger probes.
- Page 19 PH10M-iQ PLUS installation and user's guide www.renishaw.com Autojoint to autojoint These extension bars are compatible with the PH10M-iQ PLUS head. They allow direct connection to the head via the autojoint and terminate in an autojoint. This permits use of a multiwired probe. Extensions...
- Page 20 PH10M-iQ PLUS compatible probes M8 touch-trigger probes This range of probes utilises the M8 bush for mounting to the head. When used with the PH10M-iQ PLUS, one of the autojoint to M8 bush extension bars or the PAA1 adaptor must be used.
- Page 21 PH10M-iQ PLUS autojoint connection PH10M-iQ PLUS heads use a Renishaw autojoint which is a highly repeatable kinematic joint. One half is integral to the head; the other half forms part of the adaptor, extension bar or probe. Locking and unlocking the autojoint is carried out either manually, using the autojoint key, or automatically using the Renishaw autochange rack systems (ACR1 or ACR3).
-
Page 22: System Diagrams
PH10M-iQ PLUS system diagrams The diagram below shows the range of extensions, probes and styli which can be used in conjunction with the PH10M-iQ PLUS. * All touch-trigger probes can utilise inferred qualification but when using a scanning probe, the system must be used in traditional PH10 mode. - Page 23 CMM control (and an HCU2 connected) for operation under manual mode. Please refer to the documentation provided by your CMM supplier for further details on controlling the PH10M-iQ PLUS series of heads using the CMM computer.
- Page 24 PHC10-3 PLUS probe head controllers PH10M-iQ PLUS must be used in conjunction with PHC10-3 PLUS, UCC S3 or UCC T3 PLUS. PHC10-3 PLUS manages all head functions and communicates via a serial interface with the CMM computer. If an internal probe interface is fitted with the PHC10-3 PLUS it will obtain its power internally from the PHC10-3 PLUS controller.
- Page 25 NOTE: PHC10-3 PLUS does not does require a protective earth, however an equipotential bonding point is provided on the rear panel for connection to the rest of the installation. NOTE: For system interconnection diagrams refer to the PHC10-3 PLUS installation guide (Renishaw part number H-1000-7592). Issued 07 2021...
- Page 26 PH10M-iQ PLUS installation and user's guide www.renishaw.com Renishaw CMM controllers The same PHC10-3 PLUS controller functionality is also incorporated into the UCC T3 PLUS and UCC S3 CMM controllers . For further information consult installation guide (Renishaw part number H-1000-2118). Issued 07 2021...
- Page 27 Autochange racks Renishaw's autochange racks shown are probe exchange systems available for use with PH10M-iQ PLUS. Mounted within the CMM's working envelope, the autochange system facilitates fast, automatic probe exchange without the need for requalification. Fast ‘probing to probing' cycles are achieved by the head docking one probe and selecting another.
-
Page 28: Am1 Adjustment Module
AM1 adjustment module The AM1 adjustment module shown below is designed for use on PH10M-iQ PLUS providing roll, pitch and yaw adjustment. It has a quick release mechanism allowing rapid head exchange and features inbuilt overtravel protection. For further information on the AM1, please refer to the AM1 user's guide (Renishaw part number H-1000-4010). -
Page 29: Maintenance
PH10M-iQ PLUS installation and user's guide www.renishaw.com Maintenance There are no user serviceable parts inside any PH10M-iQ PLUS system components. Components requiring attention must be returned to an authorised Renishaw customer service centre. Cleaning The probe head, controller and hand control unit should only be cleaned with a soft, dry, lint-free cloth. -
Page 30: Troubleshooting
PH10M-iQ PLUS installation and user's guide www.renishaw.com Troubleshooting Overload error Possible cause Solution Head lock up holding force exceeded during CMM acceleration Reduce mass of probe combination. Reduce acceleration. Collision with workpiece or CMM Check head for damage. Remove obstruction and repeat move. - Page 31 PH10M-iQ PLUS installation and user's guide www.renishaw.com No head movement in automatic mode Possible cause Solution Head controller in manual mode Change to automatic mode. Power loss Check mains cable connections and integrity. Check power block is supplying 24 V.
