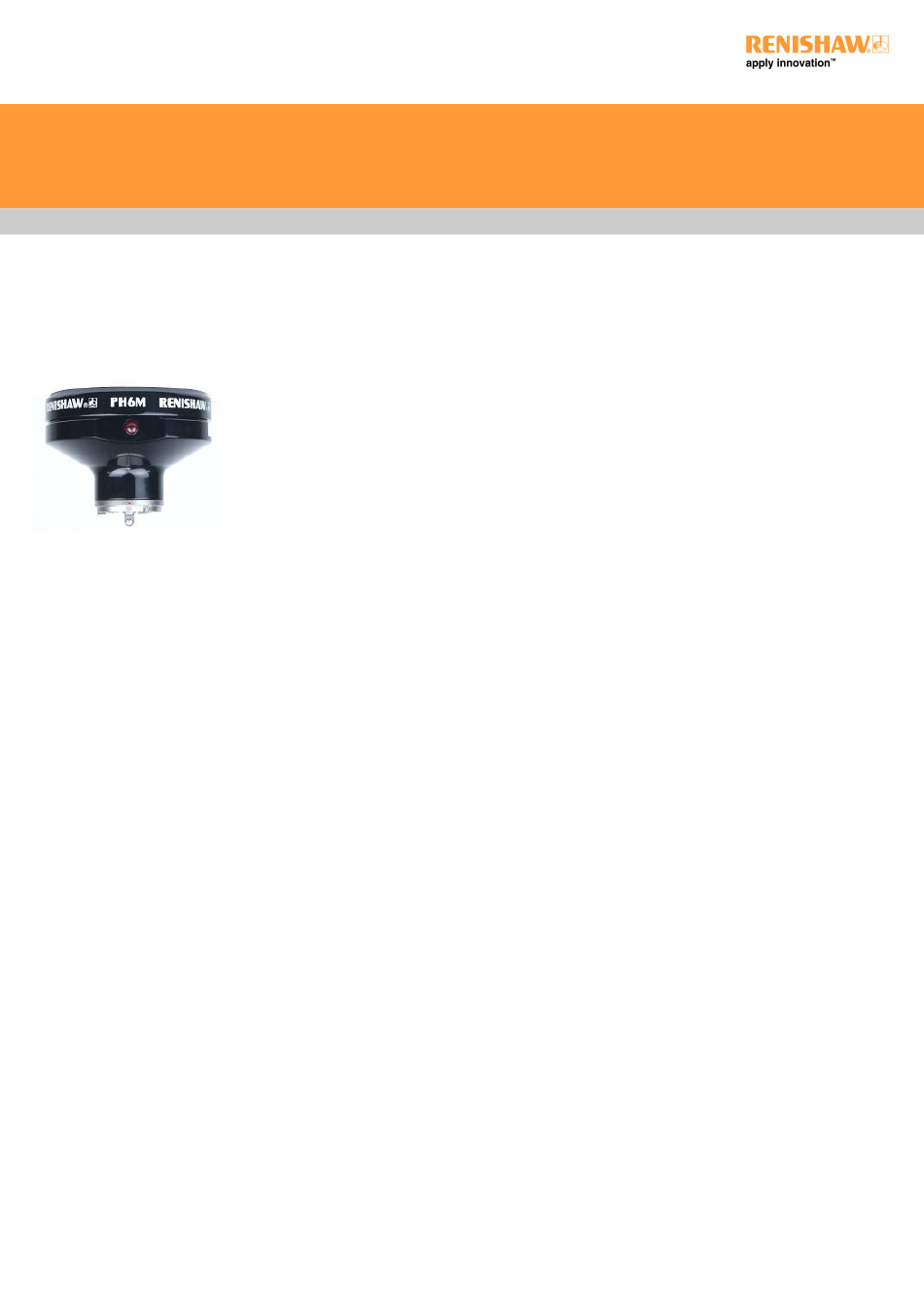

PH6M user's guide
www.renishaw.com
PH6M user's guide
Document part number H-1000-5001-04-E
Issued 06 2022
SALES & SERVICE:
A Tech Authority, Inc.
13745 Stockton Ave.
Chino CA 91710
909-614-4522
sales@atechauthority.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH6M and is the answer not in the manual?

Questions and answers

Summary of Contents for Renishaw PH6M

  • Page 1 PH6M user's guide www.renishaw.com SALES & SERVICE: PH6M user's guide A Tech Authority, Inc. 13745 Stockton Ave. Chino CA 91710 Document part number H-1000-5001-04-E 909-614-4522 sales@atechauthority.com Issued 06 2022...
  • Page 2: General Information

    Renishaw warrants its equipment and software for a limited period (as set out in the Standard Terms and Conditions), provided that they are installed and used exactly as defined in associated Renishaw documentation. You should consult these Standard Terms and Conditions to find out the full details of your warranty.
  • Page 3 Renishaw probes and associated systems are precision tools used for obtaining precise measurements and must therefore be treated with care. Changes to Renishaw products Renishaw reserves the right to improve, change or modify its hardware or software without incurring any obligations to make changes to Renishaw equipment previously sold. Company registration details Renishaw plc.
  • Page 4: Product Compliance

    PH6M user's guide www.renishaw.com Product compliance EU declaration of conformity Contact Renishaw plc or visit www.renishaw.com/EUCMM for the full EU declaration. UK declaration of conformity Contact Renishaw plc or visit www.renishaw.com/UKCMM for the full UK declaration. EMC conformity This equipment must be installed and used in accordance with this installation guide. This product is intended for industrial use only and should not be used in a residential area or connected to a low voltage power supply network which supplies buildings used for residential purposes.
  • Page 5 PH6M user's guide www.renishaw.com China RoHS Contact Renishaw plc or visit www.renishaw.com/ChinaRoHSCMM for the full China RoHS tabulation. Issued 06 2022...

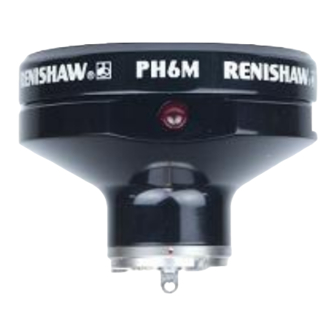

  • Page 6 Introduction The PH6M is a shank mounted, fixed orientation, probe head incorporating the Renishaw autojoint probe connector. The PH6M is compatible with the AM1 adjustment module to allow precise autojoint alignment with machine axes, enabling trouble-free autochange operation. Probe reach may be extended using the PEM range of extension bars for multiwired probes or the PAA series for adapting to M8 connected probes.
  • Page 7: Installation And Connection

    Installation and connection The PH6M is fitted with an integral 15‐pin micro ‘D' socket. If required, this socket can be adapted by using a suitable cable to which a 5‐pin DIN socket has been fitted. Locking and unlocking the autojoint is performed either manually using the S10 joint key (supplied) or automatically using the Renishaw autochange system.
  • Page 8 PH6M user's guide www.renishaw.com Dimensions Issued 06 2022...
  • Page 9: Operation

    The actuator has a drive slot which may be operated using an S10 joint key for manual probe or extension bar changing applications. Automatic probe or extension bar changing is possible using the Renishaw ACR1 or ACR3 autochange systems.
  • Page 10: System Connection

    PH6M user's guide www.renishaw.com System connection Issued 06 2022...
  • Page 11: Interconnecting Cables

    Interconnecting cables There is a choice of standard cables to connect from PH6M to probe interfaces PI 7-2, PI 200, OPI6, the AC2 card for SP600M or the ACR3 card for SP25M. Connectors shown in brackets are supplied in kit form. The cable is supplied with the micro ‘D' connector fitted and the remote end prepared, but unterminated, to facilitate assembly into machine looms.
  • Page 12: Specification

    PH6M user's guide www.renishaw.com Specification Repeatability 1 µm ﴾2σ﴿ at stylus tip 50 mm ﴾1.97 in﴿ from connector face Probe compatibility Direct fitting of SP25M, TP7M, OTP6M, SP600M and TP6A PAA series adaptor/extension required for M8 connector probes TP200, TP20 and TP2 Dimensions Length: 40 mm ﴾1.57 in﴿...
  • Page 13: Probe Compatibility

    PH6M user's guide www.renishaw.com Probe compatibility Issued 06 2022...
  • Page 14 CMM or autochange rack Autojoint key A-1051-0040 Parts list Please quote the part number when ordering. Type Part number PH6M + MS1 shank A-1074-0031 PH6M + MS2 shank A-1074-0032 PH6M + MS3 shank A-1074-0033 PH6M + MS9 shank A-1074-0039...
  • Page 15 Renishaw plc +44 (0)1453 524524 New Mills, Wotton-under-Edge +44 (0)1453 524901 Gloucestershire, GL12 8JR United Kingdom www.renishaw.com/cmmsupport SALES & SERVICE: A Tech Authority, Inc. 13745 Stockton Ave. Chino CA 91710 909-614-4522 sales@atechauthority.com For worldwide contact details, please visit our main website at www.renishaw.com/contact...
