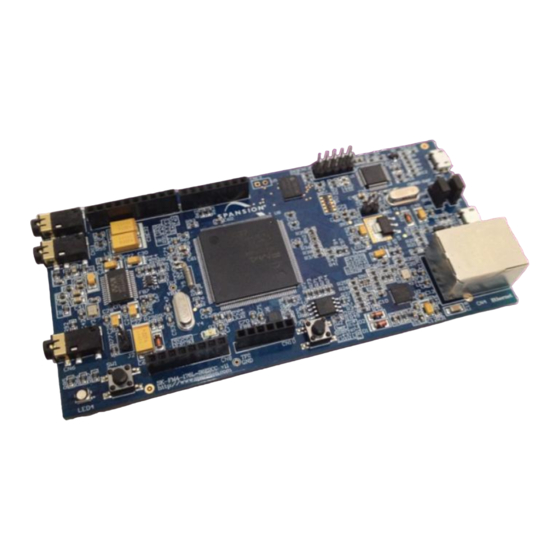

SK-FM4-176L-S6E2CC
FM4 Family Quick Start Guide
Doc. No. 002-09737 Rev. *B
Cypress Semiconductor
198 Champion Court
San Jose, CA 95134-1709
http://www.cypress.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SK-FM4-176L-S6E2CC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cypress SK-FM4-176L-S6E2CC

  • Page 1 SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide Doc. No. 002-09737 Rev. *B Cypress Semiconductor 198 Champion Court San Jose, CA 95134-1709 http://www.cypress.com...
  • Page 2 Cypress is not liable, in whole or in part, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from or related to all Unintended Uses of Cypress products.
  • Page 3: Table Of Contents

    Install the Virtual Communication Port ........................7 Powering SK-FM4-176l-S6E2CC Starter Kit ......................... 8 Run PCB Board Test Demonstration ........................... 9 Additional Resources ..............................12 Revision History ................................... 13 Document Revision History ............................13 SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide, Doc. No. 002-09737 Rev. *B...
  • Page 4: Introduction

    CMSIS-DAP JTAG adapter  Ethernet RJ45 (IEEE802.3)  USB device interface  32Mbit Quad SPI flash memory  16Mbit external PSRAM memory  Stereo Codec  Voice Enabled Controller SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide, Doc. No. 002-09737 Rev. *B...
  • Page 5 Setup Requirements:  PC with USB interface, Windows OS 7, or later  SK-FM4-176L-S6E2CCAstarter kit with USB cable (A/micro-B)  Download Complete Driver, Documentation, Software, & Tools Package  SK-FM4-176L-S6E2CCA_CDv1.1 SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide, Doc. No. 002-09737 Rev. *B...
  • Page 6: Windows Usb Driver Installation

    The Windows security window will appear twice, and ‘Install this driver software anyway’ will need to be selected each time. When installation is complete, click the finish button when prompted. SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide, Doc. No. 002-09737 Rev. *B...
  • Page 7: Install The Virtual Communication Port

    3. Install the Virtual Communication Port The SK-FM4-176L-S6E2CCA _CDvnn* download includes a serial communication terminal, Cypress Serial Port Viewer and Terminal, for the communication interface. Follow these instructions to install. Open the SK-FM4-176L-S6E2CCA _CDvnn folder and browse to /tools/serial port viewer/setup.exe and run the application.
  • Page 8: Powering Sk-Fm4-176L-S6E2Cc Starter Kit

    CN2. Connect the USB cable to CN2 to power the board. The green power LED3 will illuminate. If it does not, ensure that jumper J4 is in 1-2 position as shown below. SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide, Doc. No. 002-09737 Rev. *B...
  • Page 9: Run Pcb Board Test Demonstration

    Follow these instructions to connect the virtual communication port created by test application to the Cypress Serial Port Viewer and Terminal. Open the C Cypress Serial Port Viewer and Terminal by selecting the icon in the task menu or desktop short cut.
  • Page 10 To run each of the tests enter the number next to the test description and follow the prompts. For example: 6<enter> will run the Optical Sensor Test.The application will output the value of the sensor and loop until the enter key on the PC keyboard is pressed. SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide, Doc. No. 002-09737 Rev. *B...
  • Page 11 If any issue or failureis encountered, ensure all jumpers are in default position as listed:  J1 open  J2 open  J3 2-3 position  J4 1-2 position SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide, Doc. No. 002-09737 Rev. *B...
  • Page 12: Additional Resources

    Flash MCU Programmer – Graphical interface to program flash through UART through on-chip ROM UART boot loader.  Serial port viewer Cypress Serial Port Viewer and Terminal – Serial communication terminal to be used for the UART communication interface  USBDIRECT Flash USB Direct Programmer –...
  • Page 13: Revision History

    Revision Issue Date Origin of Description of Change Change 07/14/2015 JHHO Initial release 06/14/2016 JHHO Migrated Spansion Guide from MCU-176L-S6E2CC to Cypress format 06/02/2017 AESATMP9 Updated logo and copyright. SK-FM4-176L-S6E2CC FM4 Family Quick Start Guide, Doc. No. 002-09737 Rev. *B...
