- Page 1 DCT-7 Virtual 5.1 Surround Audio Processor Operation Manual DCT-7...
- Page 2 Revision History Version No Date Summary of Change 20090408 Preliminary Release Precaution Failure to follow the precautions described below may cause damage to the Audio Processor and will void the warranty. DO NOT open the casing, doing so will void the warranty. If you ...
- Page 3 Table of Contents Introduction…………………………………………………..………. Applications..………………………………………………....…. Package Contents.…………………………………......… System Requirements.…………………………….…………..……. Features……………………………………………..……..……… Operation Controls and Functions……………………………………. Front Panel ................Rear Panel …………………………………………..….….… Side Panel …………………………………………..….….… Connection and Installation……………………………..……..… Specifications……………………………………………...………..
- Page 4 R inputs and outputs to worry about users can set up this system without much hassle or the need for additional speakers. What you end up getting is theater like sound, in the convenience of your living room, making the DCT-7 Virtual 5.1 Surround Audio Processor an ideal companion for those wishing for big sound in small packages.
- Page 5 5. Features Supports 2 channel stereo input and converts it into surround sound audio signal (5.1 channels) output through L/R jack. Supports AST (Adaptive Surround Technology) technology to convert 2 channel audio signal into Virtual 5.1 channel surround sound. Supports DVX (Virtualizer X) technology for virtual 5.1 channel surround ...

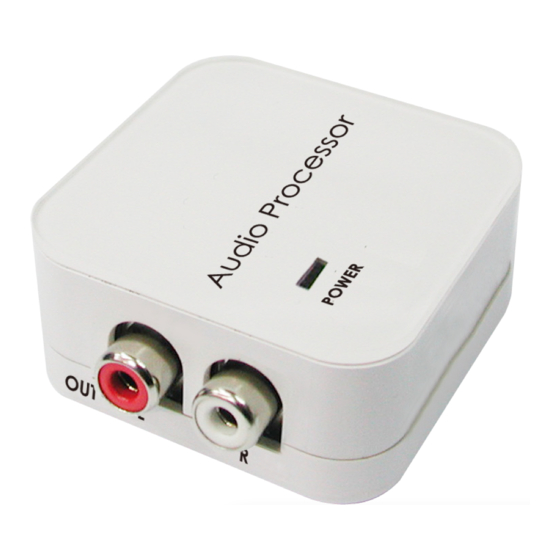

- Page 6 6. Operation Controls and Functions 6.1 Front Panel ① L/R input: Connect the L/R audio input port to the sources (DVD/Blu- Ray,PS3) L/R audio output port 6.2 Rear Panel ① L/R output: Connect the L/R audio output to the audio input of a display or TV.
- Page 7 7. Connection and Installation LCD TV 8. Specifications Input Ports L/R stereo Input 6.8K Output Ports L/R surround sound Output Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 42(W) x 40.5(D) x 22(H) Weight(g) Chassis Material Plastic Silkscreen Color White Operating Temperature 0 °...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 2008.07.08 MPM-DCT7...
