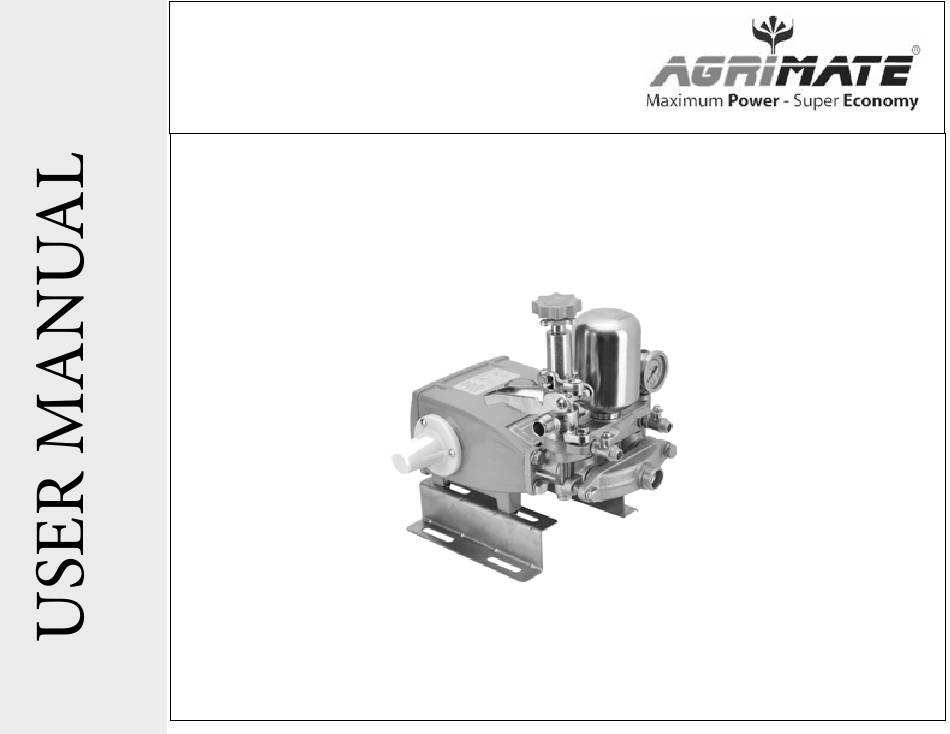

- Page 1 HTP POWER SPRAYER AM22-NT DESCLAIMER : DUE TO CONTANT UPGRADATION FEATURES & SPECIFICATIONS ARE SELECT TO CHANGE WITHOUT NOTICE . BEFORE OPERATING THIS MACHIN PLEASE READ THE INSTRUCTIONS MANUAL CAREFULLY...
- Page 2 OPERATION INSTRUCTION 1. Check every fasteners and make sure that the sprayer and the motor are installed firmly on the frame. 2. Set the two pullies in a straight-line, and the belt in an appropriate tightness 3. Every joint of the hoses must be tightened to prevent from leaking 4.
- Page 3 PUMP LUBRICATIONS 1. Replace the engine oil after the sprayer has been used for the first 10 hours, 50 hours, and then every 100 hours. 2. Drain away the dirty engine oil by screwing off the (5) drain plug 3. After the (5) drain plug is screwed on, remove the (9) oil inlet cover and to fill new engine oil grade #30-40 4.
-
Page 4: Troubleshooting
TROUBLE SHOOTING 1. Feeding failure & pressure instability 2. Check whether the (54) suction hose is leaking or is stuck 3. Open the (43) cock (valve) to release the surous air 4. Remove the (39) suction chamber and the (41.44AB) water outlet chamber check if the (33) valve assembly are stuck of damaged. - Page 5 Spare parts Diagram of AM22-NT HTP Power Sprayer...
- Page 6 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-22 - 1 Crank Case AM-22 - 17 Bearing AM-22 - 2 Gasket Crank Case AM-22 - 18 Oil Seal crank Shaft AM-22 - 3 Cover Crank Case AM-22 - 19 Bolt AM-22 - 4 Oil Gauge...
- Page 7 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-22 - 33 Valve Assy AM-22 - 54 P.V.C.Hose AM-22 - 34 Valve Box AM-22 - 55 Strainer Assy AM-22 - 35 Valve Spring AM-22 - 56 Screw AM-22 - 36 Valve Flat AM-22 - 57 Fly Nut...
-
Page 8: Inspection And Maintenance
INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop. -
Page 9: Warranty Card
WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE... - Page 10 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
- Page 11 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
- Page 12 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
- Page 13 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
