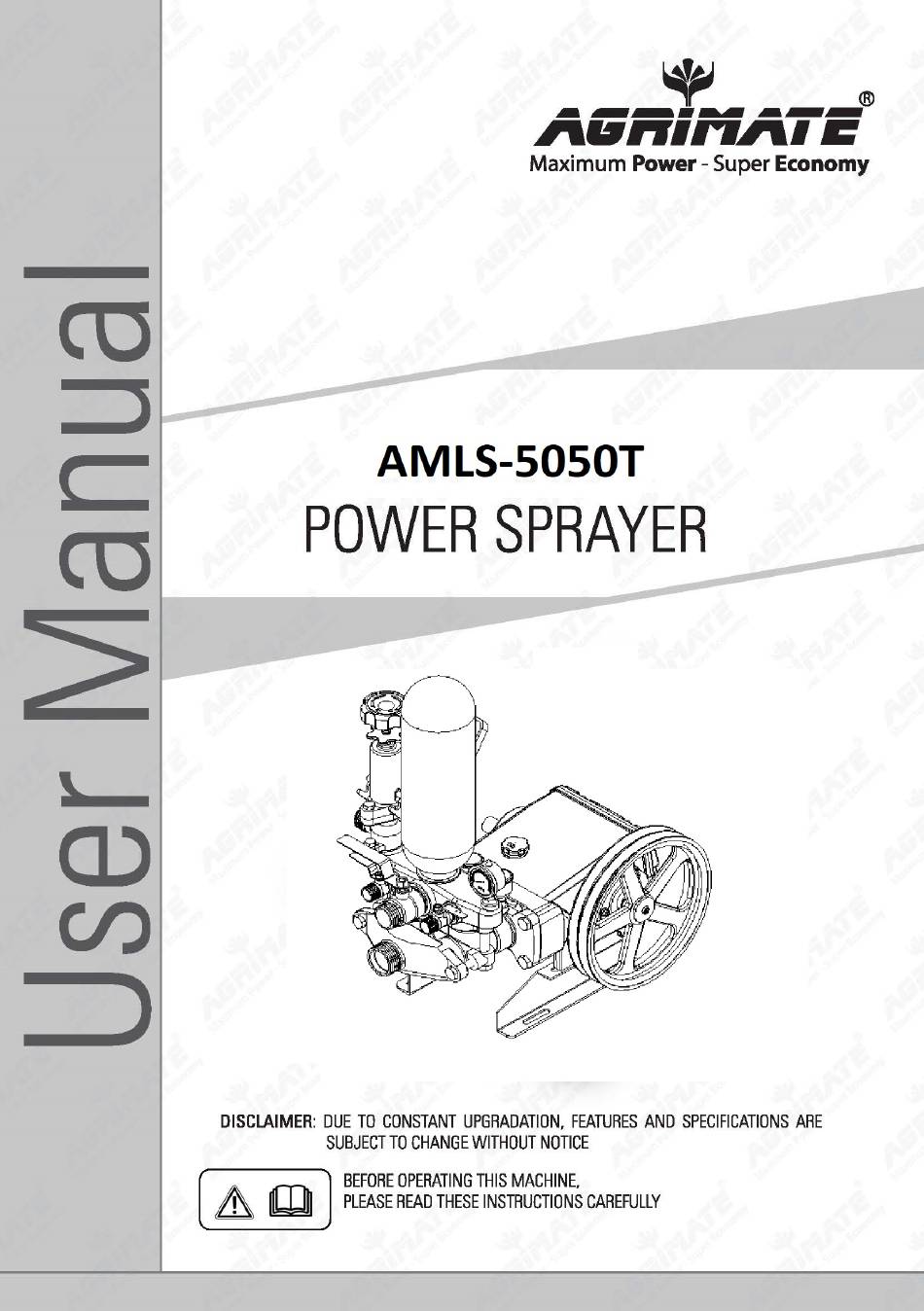

- Page 1 Maximum Power - Super Economy AMLS-5050T POWER SPRAYER DISCLAIMER: DUE TO CONSTANTUPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE, PLEASEREAD THESE INSTRUCTIONS CAREFULLY...
- Page 2 INTRODUCTION Pleaseperusethe contents in the instructionmanualprior to usethis machine,correctlycarried out installation and debugging,as well as used it strictly cordingto the working specificationin the instructionmanual Theusershouldbefamiliar with the safety notices,machineperformance, and maintenance,etc The instructionmanualwill be used in the later use, repair,accessories replacement,andaccessoriesprocurement, s o pleasekeepit carefuly OPERATING INSTRUCTION...
- Page 3 TECHNICAL PARAMETERS AMLS-5050T Model Name PowerSprayer FLOW (LIMin) 27.5 49.5 POWER HP/KW 8/5.5 WORKING PRESSURE (Kgt/cm') 23 PISTON 1STROKE (mm)25/50 TROUBLE ANALYSIS Trouble Cause Solution Strainer A ssyblocked Clean StrainerAssy Can't supply Suction Hose leaked Locktightly Wing Net or replacePacking...
- Page 4 MAINTENANCE SERVICE Replacethe oil after begin usefor 40 hours,andthencereplaceit one time usingeach70 hours; Add greaseonetime eachtwo hoursduringusing; After eachwork finished, operate it with cleanwater for 2 - 3 minutesto eliminate the residualchemicaland keepeachpartsclean; For ongterm placement, wipe cleanthe sprayingmachineand placeit at the cool anddry place SAFETY NOTICES...
- Page 5 DIAGRAM OF AMLS- 5050T POWER SPRAYER...
- Page 6 SPARE PART LIST OF AMLS 5050T POWER SPRAYER SL NO PART DESCRIPTION AMLS-5050T-01 Crank Case AMLS-5050T-02 Ring CrankCase Cover CrankCase AMLS-S050T-03 O-Ring AMLS-5050T-04 AMLS-5050T-05 Oil Gauge Plug Oil Plug AMLS-S050T-06 AMLS-5050T-07 O-Ring AMLS-SOSOT Bed CrankCase AMLS-S050T-og O-Ring Oil plug AMLS-50SOT-10...
- Page 7 SPARE PART LIST OF AMLS 5050T POWER SPRAYER SL NO. PART PARTS NAME Valve Assy AMLS-5050T-31 AMLS-5050T-32 Discharge Metal AMLS-5050V33 Ball Cock Ball Cock AMLS-S050T-34 AMLS-5050T-35 Sc rew AMLS-5050T-36 Pressure Gauge Air Chamber AMLS-5050T-37 AMLS-5050T-38 O-Ring 2612 AMLS-5050T-39 Valve Seat...
- Page 8 SPARE PART LIST OF AMLS 5050T POWER SPRAYER SL NO. PART PARTS NAME AMLS-5050T-61 O-Ring AMLS-SOSOT-62 Suction Joint AMLS-5050T-63 O-Ring Core Coupling AMLS-SOSOT-64 AMLS-5050T-65 Wing Net AMLS5050T-66 Brass Cup AMLS-SOSOT-67 Suction Hose AMLS-5050T-68 Core Strainer AMLS-5050T-69 Strainer Assy Semicircular ring...
- Page 9 INSPECTION & MAINTENANCE Forsafety use, make surethe machine is cleanedevery three-months Beforeworking, makesure to inspect the filter and the nozzle,andensurethere is no impurity After working, make sure there is no water in the pump and the hose If the machine needsto be repaired in the guarantee period, please return the machine to the shop. You need to provide the certificate of purchasein order to repair or get the substitute Before Packing,the machineshould be cleaned,then useclosed packaging,packaging shoud be firm.
- Page 10 WarrantyCard CUSTOMERCOPY Date Dateof Delivery PurchaserG Name & Address Deale(s Office Seal Product Name AMLS 5050T POWER SPRAYER DealerSign Product Serial No. CustonwSign. Invoice/ DN No. l/We accept t hetermsandconditions of Warranty as intheWarrantYCard. WarrantyCard DEALER'SCOPY Date Dateof Delivery PurchaserG Name & Address Deale(s Office Seal Product Name AMLS...
- Page 11 LIMITED WARRANTY PERIOD : Fora period of six months from the date of Sale / delivery of the product which ever is earlier. 2 LIM TED WARRANTYOBLIGATION : Rep acement of defective part(s) by authorized dealer are free of charges If found defective by reasons of defective material/ poorworkmanship, p artswill be replaced andtherewill be no valuere imbursement 3 TERMS &...
- Page 12 1st Free Service Coupon ratna IS09001-2015 CERTIFIED COMPANY FREESERVICECOUPON(30 Days / 20 hrs (Which ever is earlier) Model Serial Number PDI Date Service No. Purchase bill no. Date Dealer's Office Seal Operations: • C„heck and Testthe Fuel Mixture. • Check and Clean the Air filter •...
- Page 13 Small Maintenance. Big Savings SmallMaintenance. B igSavings SmallMaintenanceeBig Savings...
- Page 14 Don'ts Always read the instruction manual supplied along with the equipmentsand understandthe correct installation and operating proceduresbefore attempting to usethe equipments t is important t o usethe personalprotection equipments suchas headhelmetwith visor,ear defenders, g oggles, safety g oves,cut resistant shoes,trousers and jackets while operating potential y dangerousmachines. Avoid untrained persons usingthe equipments.
- Page 15 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP Avni"ATß Maximum Power - Super Economy IMPORTED AND MARKETED RATNAGIRIIMPEX PVT, LTD., AnnapurnaHouse,#1 /IG, 7th Cross,New Guddadahalli Mark at*d by: MysoreRoad,Bangalore- 560 026 ratnaglri Customer Care: 1800-425-3036 Impex Email:marketing@ratnagiriimpex.com...
