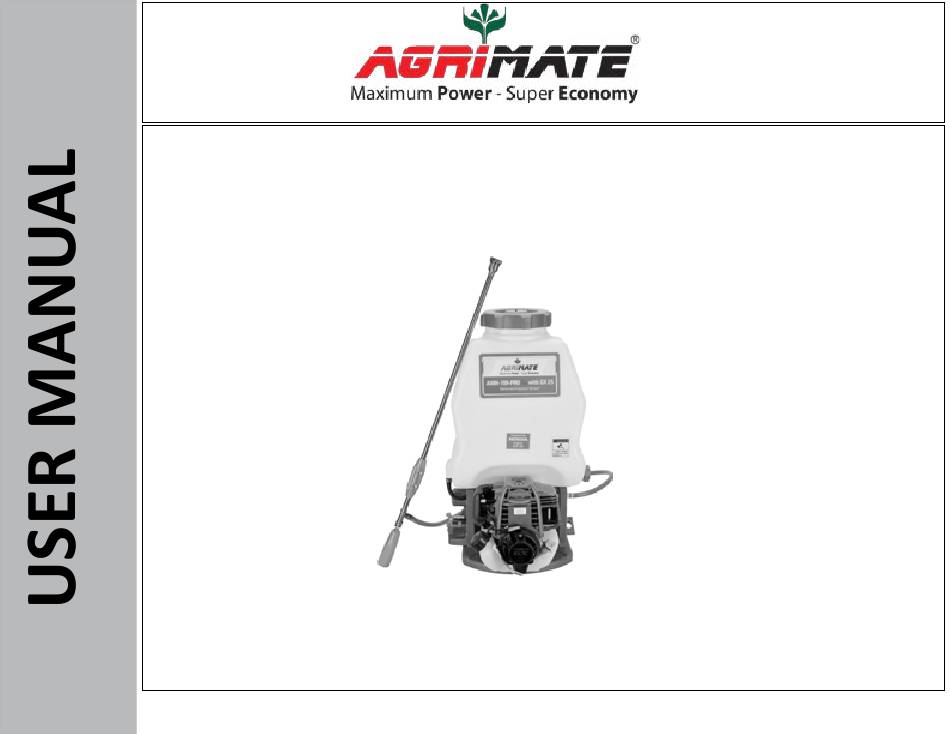

- Page 1 KNPASACK POWER SPRAYER AM-709-PRO-4S WITH GX-25 Before Operating this machine please read instructions Manual carefully Desclaimer: Due to Constatnt upgradation, features & Specifications are subject to change without prio notice...
- Page 2 CAUTION 1. Stop running the gasoline engine before the tank is refueled, and ensure that the gasoline engine is far from the fire. Against the position, discharge the exhaust gas from the rooms, channels using gasoline engine or any other closed places. 2.
- Page 3 START UP 1. Turn on the gasoline switch until the gasoline flows out the clear plastic pipe. (Fig 3) 2. Close the choke totally (Fig 4) If the engine is heated, the choke must be totally opened. 3. Open half the throttle. 4.
-
Page 4: Maintenance
MAINTENANCE 1. Daily check • Check all screws and nuts • Check oil leakage or air leakage 2. Check after running 20 hours • Clean the core of the air cleaner • Clean the gasoline filter 3. Check after running 50 hours •... -
Page 5: Troubleshooting
TROUBLE SHOOTING 1. Fail to start • Oil switch is not turned on • Gasoline is mixed with water, replace it • The ignition plug has accumulated carbon or has been broken • Poor contact of the high voltage wire with the spark plug 2. - Page 6 PUMP SPARE PARTS DIAGRAM OF KNAPSACK POWER SPRAYER AM-709-PRO-4S...
- Page 7 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-709-01 Chemical Container AM-709-23 Right Stand AM-709-02 Filter AM-709-24 Left Stand AM-709-03 Gasket AM-709-26 Fixed Plate AM-709-04 Container Cover AM-709-28 Stop Switch AM-709-05 Chain Holder AM-709-32 Cord Comp AM-709-06 Strap AM-709-34 Throttle Wire AM-709-07...
- Page 8 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-709-53 Steel Pipe AM-709-69 Drain Plug AM-709-54 Gasket AM-709-70 Oil Seal AM-709-55 Drum Case 70.1 AM-709-70-1 Oil Seal AM-709-56 Drum Clutch AM-709-71 O-Ring AM-709-57 Bearing AM-709-72 Adjusting Ring AM-709-58 Bearing AM-709-73 Grease Ring AM-709-60...
- Page 9 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-709-84 Suction Hose AM-709-103 Outlet Chamber AM-709-85 Outlet Chamber AM-709-104 Suction Hose AM-709-86 Valve Seat AM-709-105 High Pressure Hose AM-709-88 Pressure Valve AM-709-107 Hose Pipe Handle AM-709-89 Pressure Valve Rod AM-709-108 Roller AM-709-90...
- Page 10 For Engine Spare Parts Refer GX25 Engine Manual...
-
Page 11: Warranty Card
WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE... - Page 12 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
- Page 13 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
- Page 14 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
- Page 15 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
