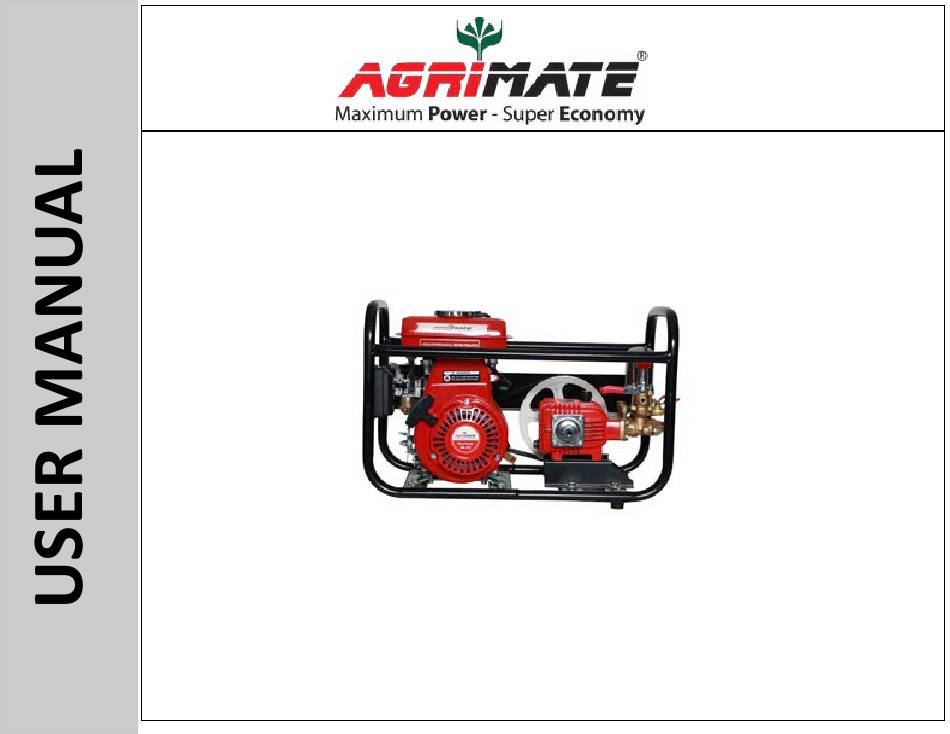

- Page 1 HTP POWER SPRAYER WITH ENGINE AM-21K WITH AM-152 ENGINE Before Operating this machine please read instructions Manual carefully Desclaimer: Due to Constatnt upgradation, features & Specifications are subject to change without prio notice...
- Page 2 Dear Sir/Madam, Thank you for choosing Agrimate product. You are the proud owner of high technology and durable machine. Trust that our franchisee/dealer installed the product and explained you about the usage and service instructions. Please visit our authorised dealer for you future requirement of our other equipments, genuine spares, accessories and service.
- Page 3 TECHNICAL SPEFICATIONS Model AM-21K WITH 152eNGINE Engine AM-152E Single-cylinder, 4-stroke, OHV air- Type forced cooling Start Recoil Displacement (CC) 98CC Max. Power KW(HP)/RPM 2.2KW/3.0HP/3600RPM Fuel Tank Capacity 1.3LTR Oil Capacity 0.3LTR Net Weight KG Gross Weight KG...
- Page 4 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE CRANKCASE ASSY - A SL NO PART NO. DESCRIPTION AM-152PE-A01 Crankcase Valve chamber clapboard AM-152PE-A02 sub-assy AM-152PE-A03 Stud AM-152PE-A04 Oil seal crankshaft AM-152PE-A05 Cover, oil filter AM-152PE-A06 Gasket...
- Page 5 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE CRANKCASE COVER ASSY - B...
- Page 6 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPITON AM-152PE-B01 Set pin AM-152PE-B17 Governing shaft AM-152PE-B02 Gasket, crankcase AM-152PE-B18 Pin, flyweight AM-152PE-B03 Drain plug AM-152PE-B19 Snap ring...
- Page 7 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE CYLINDER COVER - C SL NO PART NO DESCRIPTION AM-152PE-C01 Gasket, cylinder head AM-152PE-C02 Cylinder cover AM-152PE-C03 Spark plug AM-152PE-C04 Bolt...
- Page 8 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE CRANKSHAFT, PISTON & CONNECTING ROD - D...
- Page 9 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPITON AM-152PE-D01 Crankshaft sub-assy AM-152PE-D12 Piston ring (I) AM-152PE-D02 Crankshaft AM-152PE-D13 Piston ring (II) AM-152PE-D03 Woodruff key AM-152PE-D14 Oil ring, 3-piece...
- Page 10 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE COMBINATION OF CAMSHAFT VALVE -E SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPITON AM-152PE-E01 Camshaft AM-152PE-E06 Oil seal, valve stem AM-152PE-E02 Washer, camshaft AM-152PE-E07 Spring seat, valve...
- Page 11 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE CARBURETOR ASSY - F...
- Page 12 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPITON AM-152PE-F01 Gasket, intake port AM-152PE-F17 Main jet AM-152PE-F02 Connecting block AM-152PE-F18 Throttle unit AM-152PE-F03 Gasket, carburetor AM-152PE-F19 Throttle lever...
- Page 13 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE FUEL TANK ASSY - G DESCRIPTION SL NO PART NO AM-152PG-G01 Fuel filler cap sub-assy AM-152PG-G02 Fuel filler cap AM-152PG-G03 Packing ring AM-152PG-G04 Fuel tank AM-152PG-G05 Filter cup...
- Page 14 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE AIR CLEANER ASSY - H SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPITON AM-152PE-H01 Cover, air cleaner AM-152PE-H05 Gasket, air cleaner AM-152PE-H02 Housing, air cleaner AM-152PE-H06...
- Page 15 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE MUFFLER - J SL NO PART NO DESCRIPTION AM-152PE-J01 Gasket, exhaust port AM-152PE-J02 Exhaust muffler AM-152PE-J03...
- Page 16 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE RECOIL STARTER - K...
- Page 17 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPITON AM-152PE-K01 Fan hood sub-assy AM-152PE-K11 Casing AM-152PE-K02 Recoil starter AM-152PE-K12 Spring seat AM-152PE-K03 Friction spring AM-152PE-K13 Engine switch...
- Page 18 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE GOVERNING CONTROL SYSTEM - L SL NO PART NO DESCRIPTION AM-152PE-L01 Governor arm AM-152PE-L02 Pull-rod, governor AM-152PE-L03 Lock bolt AM-152PE-L04 Return spring AM-152PE-L05 Assistant spring, governor AM-152PE-L06 Mount, governor...
- Page 19 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE FLYWHEEL - M SL NO PART NO DESCRIPTION AM-152PE-M01 Fan, flywheel AM-152PE-M02 Starting flange AM-152PE-M03 Flywheel AM-152PE-M04...
- Page 20 ENGINE DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE IGNITION COIL - N SL NO PART NO DESCRIPTION AM-152PE-N01 Cap, spark plug AM-152PE-N02 Cable, engine stop AM-152PE-N03 Ignition coil sub-assy AM-152PE-N04 Ignition coil AM-152PE-N05 Bolt...
- Page 21 PUMP DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE...
- Page 22 PUMP DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE SL. NO. PART NUMBER DESCRIPTION SL. NO. PART NUMBER DESCRIPTION AM-21K-1 Crank Case AM-21K-17 Bearing AM-21K-2 Gasket Crank Case AM-21K-1s Oil Seal crank Shaft AM-21K-3 Cover Crank Case...
- Page 23 PUMP DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE SL. NO. PART NUMBER DESCRIPTION SL. NO. PART NUMBER DESCRIPTION AM-21K-33 Valve Assy AM-21K-49 Packing AM-21K-34 Valve Box AM-21K-50 Core Coupling AM-21K-35 Valve Spring AM-21K-51 Coupling AM-21K-36 Valve Flat AM-21K-52 P.V.C Hose...
- Page 24 PUMP DIAGRAM & PART LIST OF AM-21K HTP POWER SPRYARE WITH ENGINE SL. NO. PART NUMBER DESCRIPTION SL. NO. PART NUMBER DESCRIPTION AM-21K-65 Oil Seal AM-21K-66 Body Over Flow AM-21K-67 Spindle AM-21K-68 Valve AM-21K-69 0-Ring AM-21K-70 valve Seat AM-21K-71 Bolt Washer Spring...
-
Page 25: Warranty Card
WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE... - Page 26 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
- Page 27 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
- Page 28 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
- Page 29 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
