Agrimate AMH-P769 PRO User Manual

Portable power sprayer with gx35 4s engine
Hide thumbs

Advertisement

Table of Contents

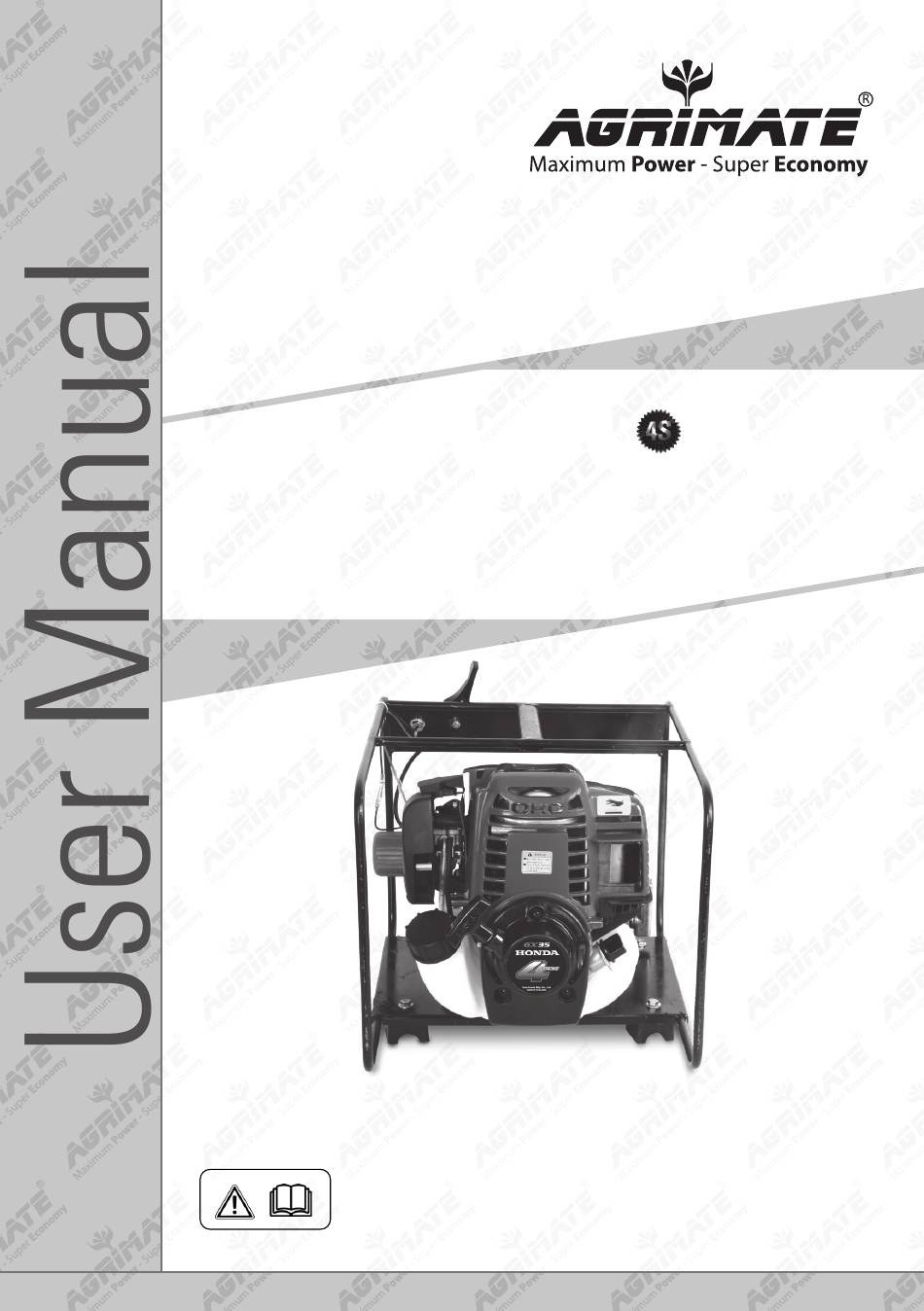

AMH-P769 PRO
with GX35
Portable Power Sprayer
DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE
SUBJECT TO CHANGE WITHOUT NOTICE
BEFORE OPERATING THIS MACHINE,
PLEASE READ THESE INSTRUCTIONS CAREFULLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMH-P769 PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Agrimate AMH-P769 PRO

Summary of Contents for Agrimate AMH-P769 PRO

  • Page 1 AMH-P769 PRO with GX35 Portable Power Sprayer DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE, PLEASE READ THESE INSTRUCTIONS CAREFULLY...
  • Page 2 CAUTION 1. Stop running the gasoline engine before the tank is refueled, and ensure that the gasoline engine is far from the fire. Against the position, discharge the exhaust gas from the rooms, channels using gasoline engine or any other closed places. 2.
  • Page 3 START UP 1. Turn on the gasoline switch until the gasoline flows out the clear plastic pipe. (Fig 3) 2. Close the choke totally (Fig 4) If the engine is heated, the choke must be totally opened. 3. Open half the throttle. 4.

  • Page 4: Maintenance

    MAINTENANCE 1. Daily check • Check all screws and nuts • Check oil leakage or air leakage 2. Check after running 20 hours • Clean the core of the air cleaner • Clean the gasoline filter 3. Check after running 50 hours •...

  • Page 5: Troubleshooting

    TROUBLE SHOOTING 1. Fail to start • Oil switch is not turned on • Gasoline is mixed with water, replace it • The ignition plug has accumulated carbon or has been broken • Poor contact of the high voltage wire with the spark plug 2.
  • Page 6 STAND DIAGRAM OF PORTABLE POWER SPRAYER AMH-P769 PRO with GX35...
  • Page 7 STAND PARTS LIST OF PORTABLE POWER SPRAYER AMH-P769 PRO with GX35 S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AMHP 769 PRO S01 Cable AMHP 769 PRO S12 Joint(Pump) AMHP 769 PRO S02 Frame AMHP 769 PRO S13 Joint (M6*30)
  • Page 8 PUMP SPARE PARTS DIAGRAM OF PORTABLE POWER SPRAYER AMH-P769 PRO with GX35...
  • Page 9 PUMP SPARE PARTS LIST OF PORTABLE POWER SPRAYER AMH-P769 PRO with GX35 S.N. PART NO. DESCRIPTION S.N. PART NO. DESCRIPTION AMH-P769-PRO-PG 01 NutM6 AMH-P769-PRO-PG 31 AdjustingRing AMH-P769-PRO-PG 02 Washer AMH-P769-PRO-PG 32 FixedSeat AMH-P769-PRO-PG 03 Pressure Adjusting AMH-P769-PRO-PG 33 22X2.4 O-RING...

  • Page 10: Inspection And Maintenance

    INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop.

  • Page 11: Customer Copy

    Warranty Card CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name AMH-P769 PRO with GX35 Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
  • Page 12 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
  • Page 13 1st Free Service Coupon ISO 9001-2008 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 20 hrs (Which ever is earlier) Model Serial Number AMH-P769 PRO with GX35 PDI Date Purchase bill no. Date Service No. Operations: • Check and Test the Fuel Mixture.
  • Page 14 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
  • Page 15 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
  • Page 16 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT LTD Annapurna House, #1/1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore-560 026 Customer Care: 1800 425 3036 email: info@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2008 CERTIFIED COMPANY...
