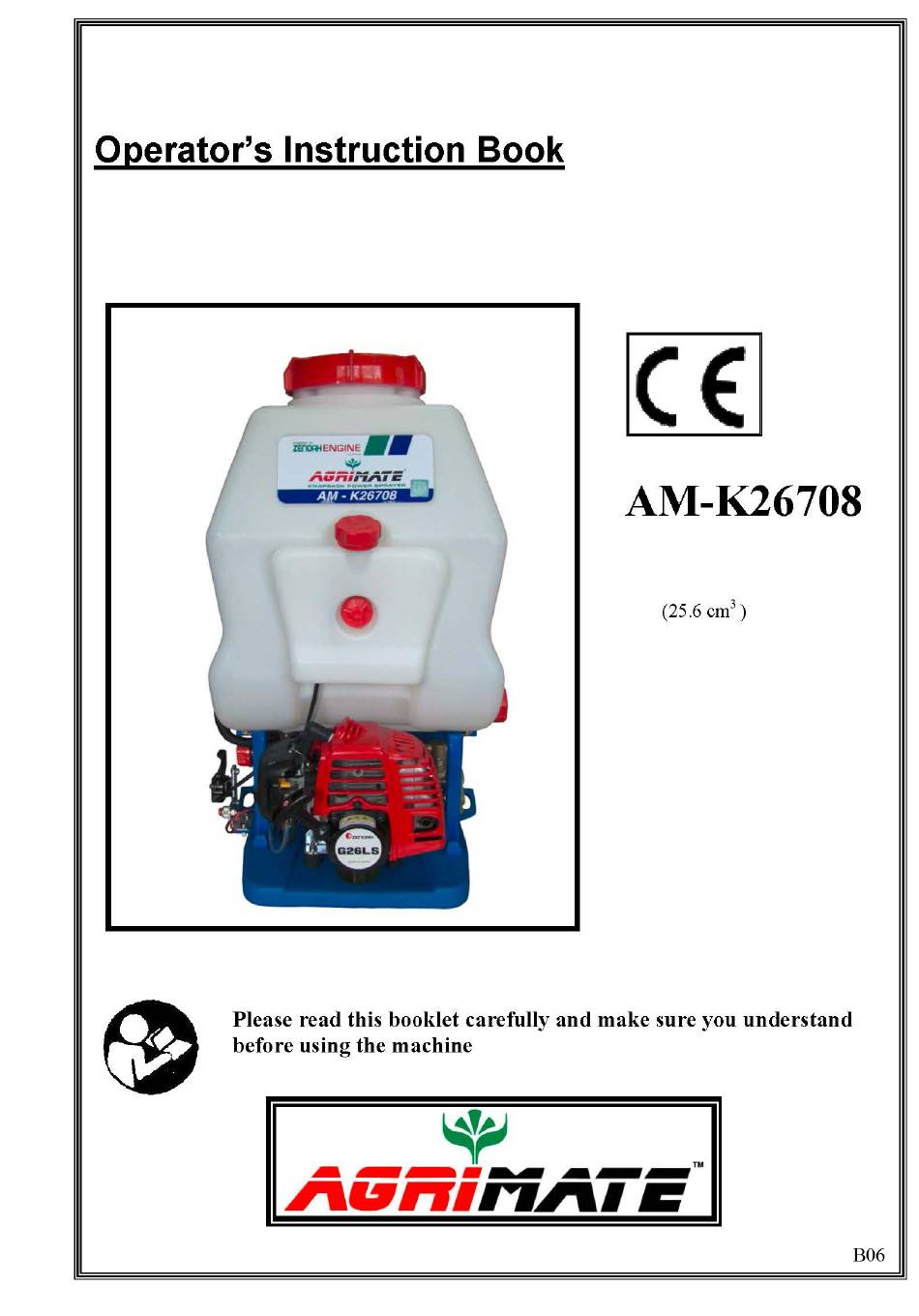

Summary of Contents for Agrimate AM-K26708
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION SAFETY PRECAUTION SPRAYER COMPONENTS ASSEMBLY STARTING USE – STOPPING THE ENGINE ENGINE MAINTENANCE – STORAGE PUMP MAINTENANCE TECHNICAL DATA WARRANTY CERTIFICATE... -
Page 3: Introduction
INTRODUCTION To correctly use the sprayer and prevent accidents, do not start work without having first carefully read this manual. You will find explanations concerning the operation of the various parts plus instructions for necessary checks and relative maintenance. SAFETY PRECAUTIONS WARNING: If correctly used, the sprayer is a quick, easy to handle and efficient tool: if used improperly, or without the due precautions it could become a dangerous tool. -
Page 4: Sprayer Components
SPRAYER COMPONENTS 1- Spray gun 2- Cock switch 3- Roller 4- High pressure PVC hose 5- Drain cup 6- Tank cover 7- Liquid tank 8- Fuel cap 9- Fuel tank Read the operator’s instruction book before operating this machine. Wear head, eye and ear protection. -
Page 5: Assembly
ASSEMBLY Assembling the lance: The sprayer is supplied packaged as shown in Fig. 1. To prepare the sprayer for use a few simple operations are required: Connect the high pressure hose (Fig 2-A) to the pump and secure with wing nut (Fig 2-B). Screw the jet regulator (Fig 3-C) onto the tip of the handle (Fig 3-D) and high pressure hose (Fig 2-A). -
Page 6: Starting
STARTING Fuel Mixture: Use a 4% (25:1) oil-gasoline mixture. (oil : two stroke oil or 20/50 engine oil) Warning: two stroke engines have hing specific horsepower and we therefore recommend the use of well known, super gasoline, with or without lead and an octane rating of no less than 90. -
Page 7: Use-Stopping The Engine
USE-STOPPING THE ENGINE USE: Fill the liquid tank through the filter provided to prevent the introduction of foreign bodies (Fig 11-A) Replace the filler cap (Fig 12-B) making sure it is tightly sealed. After starting the engine, adjust the liquid flow by way of the pressure regulator (Fig 13-C). -
Page 8: Engine Maintenance-Storage
ENGINE MAINTENANCE-STORAGE Engine maintenance: Warning: Always wear protective gloves during maintenance operations. Do not carry out maintenance when the engine is hot. Air filter: Every 8-10 working hours, take off the Cover. The filter should be cleaned by shaking it Well and with a soft brush (Fig 15). -
Page 9: Pump Maintenance
PUMP MAINTENANCE Oil- To check the oil level, remove the protective rubber cushion (Fig 21) by removing the screws. Change oil firstly after 30 operating hours, then every 100 operating. 1- Unscrew plug (Fig 22-C) and drain oil. Replace and tighten drain plug. 2- Unscrew breather cap (Fig 20) of the oil tank and fill with 120cc of SAE 40 or 20/50 engine oil. -
Page 10: Technical Data
TECHNICAL DATA Engine Zenoah G26LS KM26 engine Displacement 25.4 25.6 Power 0.81 0.80 Max. rpm 9000 Min. rpm 3000 Fuel tank capacity 1000 Electronic ignition Anti-vibration system Diaphragm carburetor Primer carburetor Centrifugal clutch Max. vertical liquid range Pump reduction ratio 1÷4 Agricultural chemical solutions 4 - 9... -
Page 11: Warranty Certificate
WARRANTY CERTIFICATE This machine has been designed and manufactured using the most modern techniques. The manufacturer guarantees the machine to be free from defects for a period of twelve months from the date of purchase provided it is used exclusively for private/hobby purposes. If the machine is used for professional purposes, the warranty period shall be for a period of six months. - Page 12 WARNING!!! RISK OF DAMAGING HEARING IN NORMAL CONDITIONS OF USE, THIS MACHINE MAY INVOL VE A DAIL Y LEVEL OF PERSONAL EXPOSURE TO NOISE FOR THE OPERATOR EQUAL TO OR GREATER THAN 85 dB(A) WARNING!- This owner’s manual must stay with the machine for all its life. Model Pressure Level Power level...
