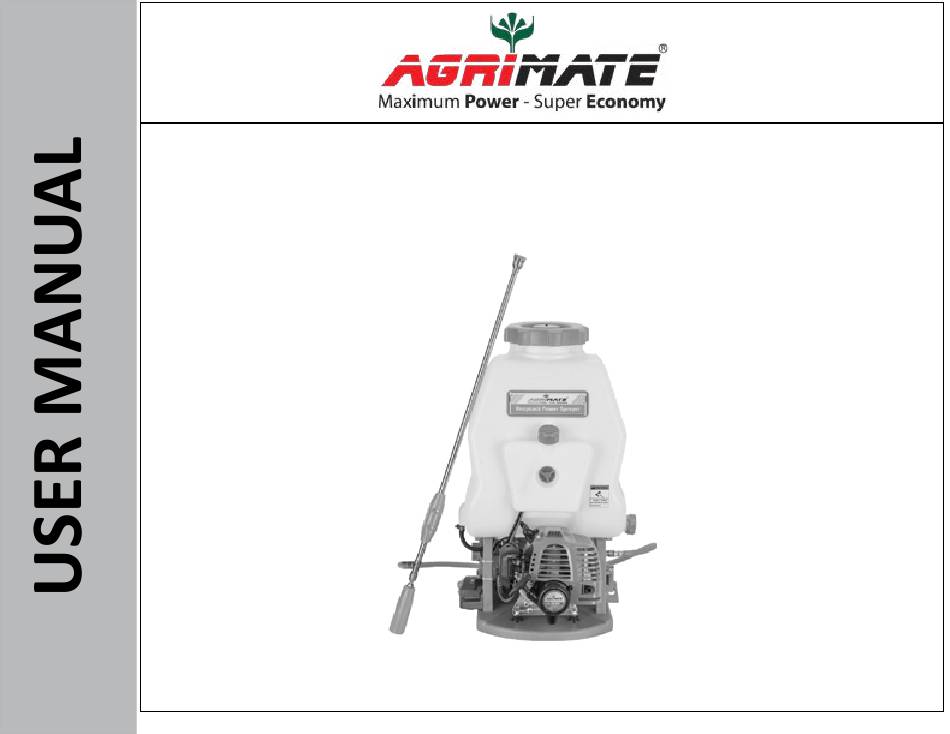

- Page 1 KNPASACK POWER SPRAYER AM-708-NEO-2S /AM-708-AL-NEO-2S/AM-666-NEO & AM-909-NEO Before Operating this machine please read instructions Manual carefully Desclaimer: Due to Constatnt upgradation, features & Specifications are subject to change without prio notice...
- Page 2 CAUTION 1. Stop running the gasoline engine before the tank is refueled, and ensure that the gasoline engine is far from the fire. Against the position, discharge the exhaust gas from the rooms, channels using gasoline engine or any other closed places. 2.
- Page 3 START UP 1. Turn on the gasoline switch until the gasoline flows out the clear plastic pipe. (Fig 3) 2. Close the choke totally (Fig 4) If the engine is heated, the choke must be totally opened. 3. Open half the throttle. 4.
-
Page 4: Maintenance
MAINTENANCE 1. Daily check • Check all screws and nuts • Check oil leakage or air leakage 2. Check after running 20 hours • Clean the core of the air cleaner • Clean the gasoline filter 3. Check after running 50 hours •... -
Page 5: Troubleshooting
TROUBLE SHOOTING 1. Fail to start • Oil switch is not turned on • Gasoline is mixed with water, replace it • The ignition plug has accumulated carbon or has been broken • Poor contact of the high voltage wire with the spark plug 2. - Page 6 ENGINE SPARE PARTS DIAGRAM OF KNAPSACK POWER SPRAYER - AM-708-NEO-2S/AM-708-AL-NEO-2S/ AM-666-NEO 2S / AM-909-NEO 2S...
- Page 7 SL NO PART NO. DESCRIPTION SL NO PART NO DESCRIPTION AM-708-NEO 2S-E01 Screw AM-708-NEO 2S-E16 Fan Cover AM-708-NEO 2S-E02 Cleaner Outside Cover AM-708-NEO 2S-E17 Clutch Step Screw AM-708-NEO 2S-E03 Filter Element AM-708-NEO 2S-E18 Washer AM-708-NEO 2S-E04 Screw Assy AM-708-NEO 2S-E19 -21 Clutch Assy AM-708-NEO 2S-E05 Cleaner Inside Cover...
- Page 8 SL NO PART NO. DESCRIPTION SL NO PART NO DESCRIPTION AM-708-NEO 2S-E30 Gasket, Crankcase AM-708-NEO 2S-E43 Rope Guide AM-708-NEO 2S-E31 Oil Seal AM-708-NEO 2S-E44 Rope AM-708-NEO 2S-E32 Ball-Bearing AM-708-NEO 2S-E45 Starter Handle AM-708-NEO 2S-E33 AM-708-NEO 2S-E46 Gasket AM-708-NEO 2S-E34 Crankshaft Comp. AM-708-NEO 2S-E47 Screw Assy AM-708-NEO 2S-E35...
- Page 9 SL NO PART NO. DESCRIPTION SL NO PART NO DESCRIPTION AM-708-NEO 2S-E56 Washer AM-708-NEO 2S-E70 Piston Pin Circlet AM-708-NEO 2S-E57 Washer AM-708-NEO 2S-E71 Fuel Tank Cap AM-708-NEO 2S-E58 Sealing Washer AM-708-NEO 2S-E72 Air Inlet Mouth AM-708-NEO 2S-E59 Muffler AM-708-NEO 2S-E73 Frame AM-708-NEO 2S-E60 Bolt...
- Page 10 PUMP SPARE PARTS DIAGRAM OF KNAPSACK POWER SPRAYER AM-708-NEO-2S/AM-708-AL-NEO-2S/ AM-666-NEO 2S / AM-909-NEO 2S...
- Page 11 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-708-NEO 2S-P01 Chemical Container AM-708-NEO 2S-P23 Right Stand AM-708-NEO 2S-P02 Filter AM-708-NEO 2S-P24 Left Stand AM-708-NEO 2S-P03 Gasket AM-708-NEO 2S-P26 Fixed Plate AM-708-NEO 2S-P04 Container Cover AM-708-NEO 2S-P28 Stop Switch AM-708-NEO 2S-P05 Chain Holder AM-708-NEO 2S-P32...
- Page 12 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-708-NEO 2S-P53 Steel Pipe AM-708-NEO 2S-P69 Drain Plug AM-708-NEO 2S-P54 Gasket AM-708-NEO 2S-P70 Oil Seal AM-708-NEO 2S-P55 Drum Case AM-708-NEO 2S-P70 -1 Oil Seal AM-708-NEO 2S-P56 Drum Clutch AM-708-NEO 2S-P71 O-Ring AM-708-NEO 2S-P57 Bearing...
- Page 13 SL NO PART NO DESCRIPTION SL NO PART NO DESCRIPTION AM-666-NEO 2S-P84 Suction Hose AM-666-NEO 2S-P101 Cylinder AM-666-NEO 2S-P85 Outlet Chamber AM-666-NEO 2S-P102 Suction Chamber AM-666-NEO 2S-P86 Valve Seat AM-666-NEO 2S-P103 Outlet Chamber AM-666-NEO 2S-P88 Pressure Valve AM-666-NEO 2S-P104 Suction Hose AM-666-NEO 2S-P89 Pressure Valve Rod AM-666-NEO 2S-P105...
-
Page 14: Warranty Card
WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE... - Page 15 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
- Page 16 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
- Page 17 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
- Page 18 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
