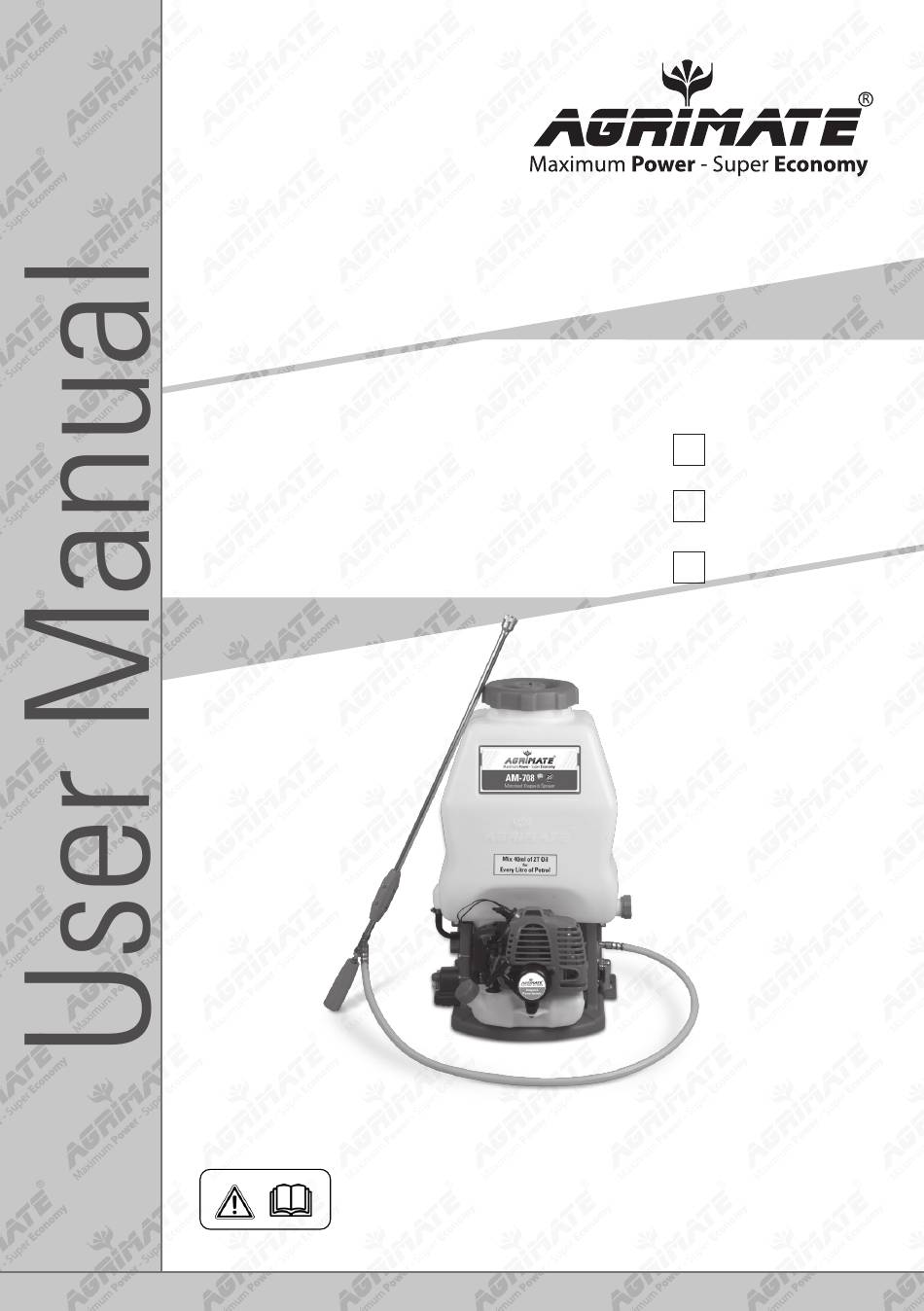

- Page 1 Knapsack Power Sprayer AM-666-NEO 2S AM-708-NEO 2S AM-909-NEO 2S DISCLAIMER: DUE TO CONSTANT UPGRADATION, FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BEFORE OPERATING THIS MACHINE, PLEASE READ THESE INSTRUCTIONS CAREFULLY...
- Page 2 CAUTION 1. Stop running the gasoline engine before the tank is refueled, and ensure that the gasoline engine is far from the fire. Against the position, discharge the exhaust gas from the rooms, channels using gasoline engine or any other closed places. 2.
- Page 3 START UP 1. Turn on the gasoline switch until the gasoline flows out the clear plastic pipe. (Fig 3) 2. Close the choke totally (Fig 4) If the engine is heated, the choke must be totally opened. 3. Open half the throttle. 4.
-
Page 4: Maintenance
MAINTENANCE 1. Daily check • Check all screws and nuts • Check oil leakage or air leakage 2. Check after running 20 hours • Clean the core of the air cleaner • Clean the gasoline filter 3. Check after running 50 hours •... -
Page 5: Troubleshooting
TROUBLE SHOOTING 1. Fail to start • Oil switch is not turned on • Gasoline is mixed with water, replace it • The ignition plug has accumulated carbon or has been broken • Poor contact of the high voltage wire with the spark plug 2. - Page 6 ENGINE SPARE PARTS DIAGRAM OF KNAPSACK POWER SPRAYER AM-666-NEO 2S | AM-708-NEO 2S | AM-909-NEO 2S...
- Page 7 PART NO. PART NAME AM-666-NEO 2S-E01 Screw AM-666-NEO 2S-E02 Cleaner Outside Cover AM-666-NEO 2S-E03 Filter Element AM-666-NEO 2S-E04 Screw Assy AM-666-NEO 2S-E05 Cleaner Inside Cover AM-666-NEO 2S-E06 Screw AM-666-NEO 2S-E07 Choke AM-666-NEO 2S-E08 Choke Handle AM-666-NEO 2S-E09 Carburetor AM-666-NEO 2S-E10 Gasket, Carburetor Side AM-666-NEO 2S-E11 Screw Assy...
- Page 8 PART NO. PART NAME AM-666-NEO 2S-E29 Guide Plate AM-666-NEO 2S-E30 Gasket, Crankcase AM-666-NEO 2S-E31 Oil Seal AM-666-NEO 2S-E32 Ball-Bearing AM-666-NEO 2S-E33 AM-666-NEO 2S-E34 Crankshaft Comp. AM-666-NEO 2S-E35 Rear Half Crankcase AM-666-NEO 2S-E36 Starter Case AM 708 Only AM-666-NEO 2S-E36+37+38 Starter Pawl & Spring Assy AM 708 AM-666-NEO 2S-E36+37+38 Starter Pawl &...
- Page 9 PART NO. PART NAME AM-666-NEO 2S-E55 Screw AM-666-NEO 2S-E56 Washer AM-666-NEO 2S-E57 Washer AM-666-NEO 2S-E58 Sealing Washer AM-666-NEO 2S-E59 Muffler AM-666-NEO 2S-E60 Bolt AM-666-NEO 2S-E61 Washer AM-666-NEO 2S-E62 AM-666-NEO 2S-E63 Cylinder AM-666-NEO 2S-E64 Gasket, Cylinder AM-666-NEO 2S-E65 Ring, Piston AM-666-NEO 2S-E66 Piston AM-666-NEO 2S-E66 Gasket, Fuel Tank Cap...
- Page 10 TANK & PUMP PARTS DIAGRAM OF KNAPSACK POWER SPRAYER AM-666-NEO 2S | AM-708-NEO 2S | AM-909-NEO 2S...
- Page 11 PART NO. PART NAME AM-666-NEO 2S-P01 Chemical Container AM-666-NEO 2S-P02 Filter AM-666-NEO 2S-P03 Gasket AM-666-NEO 2S-P04 Container Cover AM-666-NEO 2S-P05 Chain Holder AM-666-NEO 2S-P06 Strap AM-666-NEO 2S-P07 Gasket AM-666-NEO 2S-P08 Screw AM-666-NEO 2S-P09 Spring Washer AM-666-NEO 2S-P10 Screw AM-666-NEO 2S-P11 Washer AM-666-NEO 2S-P12 Screw...
- Page 12 PART NO. PART NAME AM-666-NEO 2S-P51 Bearing AM-666-NEO 2S-P52 O-Ring AM-666-NEO 2S-P53 Steel Pipe AM-666-NEO 2S-P54 Gasket AM-666-NEO 2S-P55 Drum Case AM-666-NEO 2S-P56 Drum Clutch AM-666-NEO 2S-P57 Bearing AM-666-NEO 2S-P58 Bearing AM-666-NEO 2S-P60 Gear Shaft and Gear AM-666-NEO 2S-P61 Bearing AM-666-NEO 2S-P62 O-Ring AM-666-NEO 2S-P63...
- Page 13 PART NO. PART NAME AM-666-NEO 2S-P81 Valve Assy AM-666-NEO 2S-P82 Suction Chamber AM-666-NEO 2S-P83 Clip-L AM-666-NEO 2S-P83-1 Clip-S AM-666-NEO 2S-P84 Suction Hose AM-666-NEO 2S-P85 Outlet Chamber AM-666-NEO 2S-P86 Valve Seat AM-666-NEO 2S-P88 Pressure Valve AM-666-NEO 2S-P89 Pressure Valve Rod AM-666-NEO 2S-P90 Spring AM-666-NEO 2S-P93 Relief Valve Assy...
-
Page 14: Inspection And Maintenance
INSPECTION & MAINTENANCE For safety use, make sure the machine is cleaned every three-months. Before working, make sure to inspect the filter and the nozzle,and ensure there is no impurity. After working, make sure there is no water in the pump and the hose. If the machine needs to be repaired in the guarantee period, please return the machine to the shop. - Page 15 Warranty Card CUSTOMER COPY Purchaser’s Name & Address Date of Delivery Dealer’s Office Seal Product Name Knapsack Power Sprayer AM-666-NEO 2S AM-708-NEO 2S AM-909-NEO 2S Product Serial No. Dealer Sign Customer Sign. Invoice / DN No. I/We accept the terms and conditions of Warranty as in the Warranty Card.
- Page 16 1. LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement.
- Page 17 1st Free Service Coupon ISO 9001-2015 CERTIFIED COMPANY FREE SERVICE COUPON (30 Days / 30 hrs (Which ever is earlier) Model Knapsack Power Sprayer AM-666-NEO 2S AM-708-NEO 2S AM-909-NEO 2S PDI Date Serial Number Service No. Purchase bill no. Date Dealer’s Office Seal Dealer Signature..........
- Page 18 Small Maintenance. Big Savings. Small Maintenance. Big Savings. Small Maintenance. Big Savings.
- Page 19 Do’s Don’ts • Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. • It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines.
- Page 20 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT LTD Annapurna House, #1/1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore-560 026 Customer Care: 1800-425-3036 email: info@ratnagiriimpex.com www.ratnagiriimpex.com AN ISO 9001:2015 CERTIFIED COMPANY...
