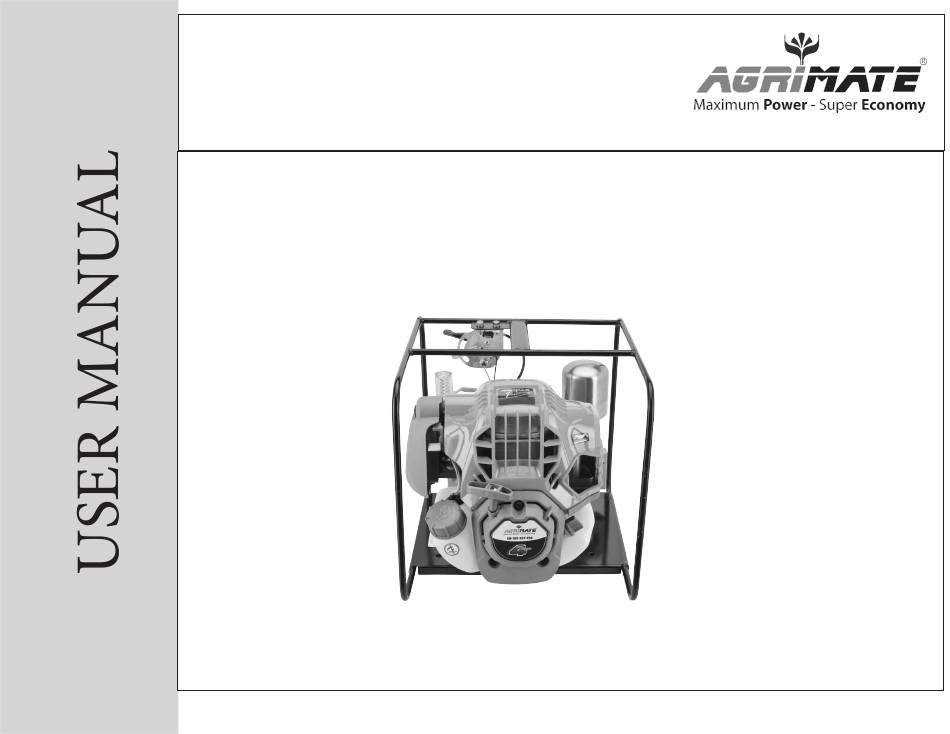

- Page 1 AGRIMATE PORTABLE POWER SPRAYER AMP-769-HCP...
- Page 3 SL NO PART NO DESCRIPITON SL NO PART NO DESCRIPTION AM-769-HCP-P01 Ball Valve AM-769-HCP-P17 O-ring AM-769-HCP-P02 Tee Coupling AM-769-HCP-P18 Iron ball AM-769-HCP-P03 Adapter AM-769-HCP-P19 Pressure regulating lever AM-769-HCP-P04 Elbow bend AM-769-HCP-P20 damping washer AM-769-HCP-P05 Pressure Guage AM-769-HCP-P21 O-ring AM-769-HCP-P06 Bolt AM-769-HCP-P22 Pressure regulating valve seat AM-769-HCP-P07...
- Page 4 SL NO PART NO DESCRIPITON SL NO PART NO DESCRIPTION AM-769-HCP-P33 Grease cup AM-769-HCP-P49 Right pressure chamber AM-769-HCP-P34 Limit seat AM-769-HCP-P50 Left inlet chamber AM-769-HCP-P35 Bolt AM-769-HCP-P51 Inlet adapter AM-769-HCP-P36 Right inlet chamber AM-769-HCP-P52 Clamp AM-769-HCP-P37 Plug AM-769-HCP-P53 Inlet Tube AM-769-HCP-P38 Lock ring set AM-769-HCP-P54...
- Page 5 SL NO PART NO DESCRIPITON SL NO PART NO DESCRIPTION AM-769-HCP-P65 Flat gasket AM-769-HCP-P81 Pressure Tank AM-769-HCP-P66 Bearing AM-769-HCP-P82 Throttle switch Assy AM-769-HCP-P67 Stud Bolt AM-769-HCP-P83 Throttle cable AM-769-HCP-P68 Bearing AM-769-HCP-P84 Engine AM-769-HCP-P69 Stud Bolt AM-769-HCP-P85 Connectimng plate AM-769-HCP-P70 Seal Sleeve AM-769-HCP-P86 Bolt AM-769-HCP-P71...
- Page 6 SL NO PART NO PART IMAGE DESCRIPITON SL NO PART NO PART IMAGE DESCRIPITON AM-AX35-E01 Hex flange surface screw AM-AX35-E11 Valve locker AM-AX35-E02 Engine plastic cover AM-AX35-E12 Valve spring AM-AX35-E03 Self-tapping screw AM-AX35-E13 Spark plug AM-AX35-E04 Cylinder cover AM-AX35-E14 Valve adjusting screw AM-AX35-E05 Wind pipe AM-AX35-E15...
- Page 7 AM-AX35-E21 Synchronous belt AM-AX35-E31 Baffle AM-AX35-E22 Cam wheel AM-AX35-E32 Ignition stator AM-AX35-E23 Camshaft AM-AX35-E33 Stopping wire AM-AX35-E24 Starter AM-AX35-E34 Screw AM-AX35-E25 Screw AM-AX35-E35 Exhaust valve AM-AX35-E26 Muffler baffle AM-AX35-E36 Intake valve AM-AX35-E27 Muffler AM-AX35-E37 Admitting gasket AM-AX35-E28 Screw AM-AX35-E38 O-seal ring AM-AX35-E29 Screw AM-AX35-E39...
- Page 8 25-1 AM-AX35-E25.1 Screw AM-AX35-E51 NO.2 piston ring AM-AX35-E41 Carburetor gasket AM-AX35-E52 Liner ring AM-AX35-E42 Carburetor AM-AX35-E53 Oil scraper ring AM-AX35-E44 AM-AX35-E54 Piston AM-AX35-E45 Screw AM-AX35-E55 Piston pin AM-AX35-E46 Cleaner inside cover AM-AX35-E56 Ring AM-AX35-E47 Filter net AM-AX35-E57 Start reel AM-AX35-E48 Air filter cover AM-AX35-E58 Oil seal...
- Page 9 AM-AX35-E61 Oil seal AM-AX35-E74 O-seal ring AM-AX35-E62 Magneto rotor comp. AM-AX35-E75 Oil scale AM-AX35-E63 Washer AM-AX35-E76 Reed vavle AM-AX35-E64 AM-AX35-E77 Reed vavle gasket AM-AX35-E65 Magneto cover AM-AX35-E78 Crankcase AM-AX35-E66 Washer AM-AX35-E79 Screw AM-AX35-E67 Clutch AM-AX35-E82 Fuel tank lid AM-AX35-E68 Washer AM-AX35-E83 Fuel pipe AM-AX35-E69...
-
Page 10: Warranty Card
WARRANTY CARD CUSTOMER COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE DATE OF DELIVERY PURCHASERS NAME & ADDRESS CUSTOMER SIGN INVOICE/DN NO. PRODUCT SERIAL NO. PRODUCT NAME I/Will accept the terms and conditions of warranty as in the warranty card DEALERS COPY DEALERS SIGN DEALERS OFFICIAL SEAL DATE... - Page 11 1.LIMITED WARRANTY PERIOD : For a period of six months from the date of Sale / delivery of the product which ever is earlier. 2. LIMITED WARRANTY OBLIGATION : Replacement of defective part(s) by authorized dealer are free of charges. If found defective by reasons of defective material / poor workmanship, parts will be replaced and there will be no value re-imbursement. 3. TERMS & CONDlTlONS : a. Claims under warranty will be accepted on submission of Warranty Card duly filled and stamped by authorized dealer together with the original purchase document.
- Page 12 1st service coupon ISO 9001 : 2015 CERTIFIED COMPANY FREE SERVICE COUPON (30DAYS/30HRS. WHICHEVER IS EARLIER SERIAL NUMBER MODEL SERVICE NO. PURCHASE BILL NO. DATE PDI DATE OPERATIONS DEALERS OFFICE SEAL 1. Check and test the fuel mixture 2. check and clean the air filter 3.Check , clean and adjust the spark plug 4.
- Page 13 DONTS Always read the instruction manual supplied along with the equipments and understand the correct installation and operating procedures before attempting to use the equipments. 2. It is important to use the personal protection equipments such as head helmet with visor, ear defenders, goggles, safety gloves, cut resistant shoes, trousers and jackets while operating potentially dangerous machines 3.
- Page 14 Agrimate Army For Pest Control ANY WHERE - ANY TIME - ANY CROP RATNAGIRI IMPEX PVT., LTD., Annapurna House, #1 / 1G, 7th Cross, New Guddadahalli Mysore Road, Bangalore - 560 026 Missed Call : 7393 938 938 Email: ask@agrimart.in...
